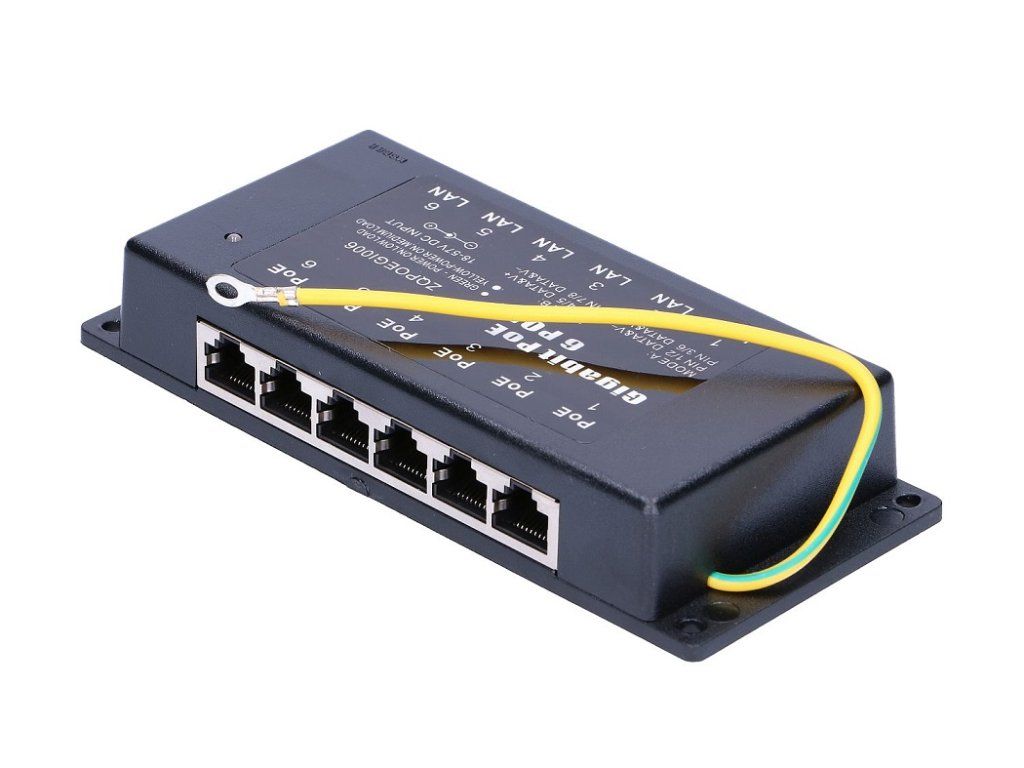

MHPower POE-PAN6-GB Gigabit shielded 6-port passive POE panel

Product detailed description

Panel integrating 6 gigabit shielded passive POE injectors. Universal solution for remote power supply of multiple active elements with integrated extractor over UTP cabling. Over-current protection up to 650mA (+/-15%) on each port, grounding element. LED indication of current values: red: current draw on ports below 400mA / green: current draw on ports 400mA - 650mA Power input via 2.1mm jacks for two diversified power modes in A and B modes. Adding this pass-through panel to your rack gives you a power center that simply plugs in between your existing switch and the patchpanel that already leads to the powered device (IP camera, IP phone, wireless elements, etc.). - Dimensions: 150mm x 65mm x 26mm - Current protection up to 650mA (+/-15%) on each port - Grounding conducted by green-yellow ground wire - Mode A - minus on pins 1-2, plus on pins 3-6 - Mode B - minus on pins 7-8, plus on pins 4-5 - Supported supply range 18 to 57 V Power supply via Mode B Mikrotik, Ubiquiti, or similar 24V devices supporting Mode B power (pins 4/5+ and pins 7/8-) Power supply via Mode A IP cameras - 48v (802.3af PoE) IP Phones - 48v (802.3af PoE) WiFi APs - Aruba, Cisco, HP, Siklu and other devices supporting Mode A power (pins 1/2- and pins 3/6+) Power supply is not included, power supply selection and performance parameters should be optimized according to the respective power consumption of the powered devices and their configuration. Technical specifications: Input: 24-48V (2.1 power jack) Data: 1/2 & 3/6 & 4/5 & 7/8 Power: according to the selected A/B mode Standards: passive PoE, 802.3af / 802.3at Ethernet: TIA/EIA 568 Cat. 5 Data rate: 10/100/1000Mbps Connectors: 6x shielded GB RJ-45 Operating Temperature: 0°C ~ 40°C Storage Temperature: -40°C ~ +70°C Operating Humidity: 10% ~ 80%RH Storage Humidity: 5% ~ 90%RH Certifications: CE
