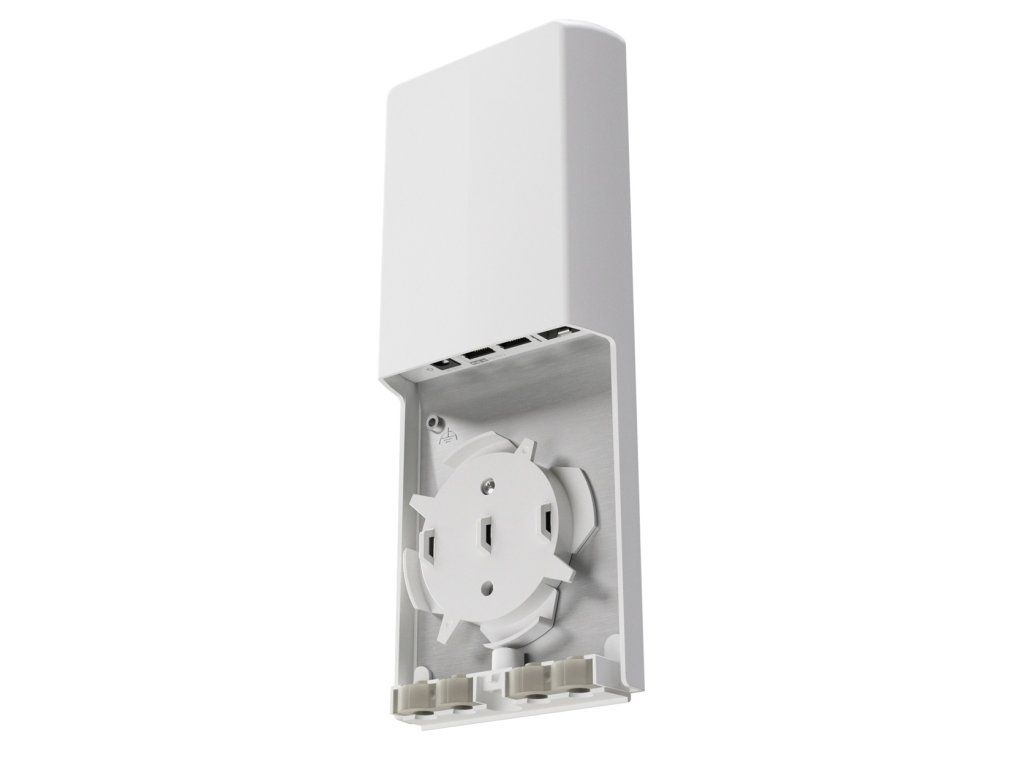

MikroTik FTC11XG, 10Gbps Optical Metallic Converter

Product detailed description

FTC11XG is a 10Gbps optical-metal converter with implemented switch-chip, SwOS Lite management (support VLAN, LAG, IGMP, SNMP, ACL, traffic shaping...) in outdoor design with IP55 protection. This converter has one Gigabit LAN port with PoE-IN power support, one 10 Gbps LAN port and one 10 Gbps SFP+ slot for embedding optical modules. The converter can be powered in a variety of ways, with support for active PoE (802.3af/at/bt), passive PoE (43 - 57V), and DC connector power with a voltage range of 18 to 57V DC. Package Contents - Device - 48V/0.95A power adapter - Gigabit PoE injector - Wall mount - Screws, dowels Technical parameters Optics Transmission speed: 10 Gbps Connectors and interfaces Optical connectors: (1) SFP+ LAN speed: (1) 100M/1G/10Gbps + (1) 10/100/1000Mbps Gigabit LAN: Yes Optical interface: (1) 10Gbps Power Power over PoE: 43 .. 57V DC, 802.3af, 802.3at, 802.3bt PoE, DC connector PoE types: PoE-In (only) Max. power consumption [W]: 10 Power supply via connector/socket: 18 .. 57V DC Physical characteristics Degree of protection: IP55 Design: Outdoor, Wall-mounted, Pole-mounted, Ceiling-mounted Chassis: Plastic Buttons: Reset Operating temperature [°C]: -40 to 70 Width [mm]: 97 Height [mm]: 0.5 Depth [mm]: 35 Software Management: Web interface Function: VLAN Operating System: SwOS Default IP address: 192.168.88.1 Default username and password: admin / -
