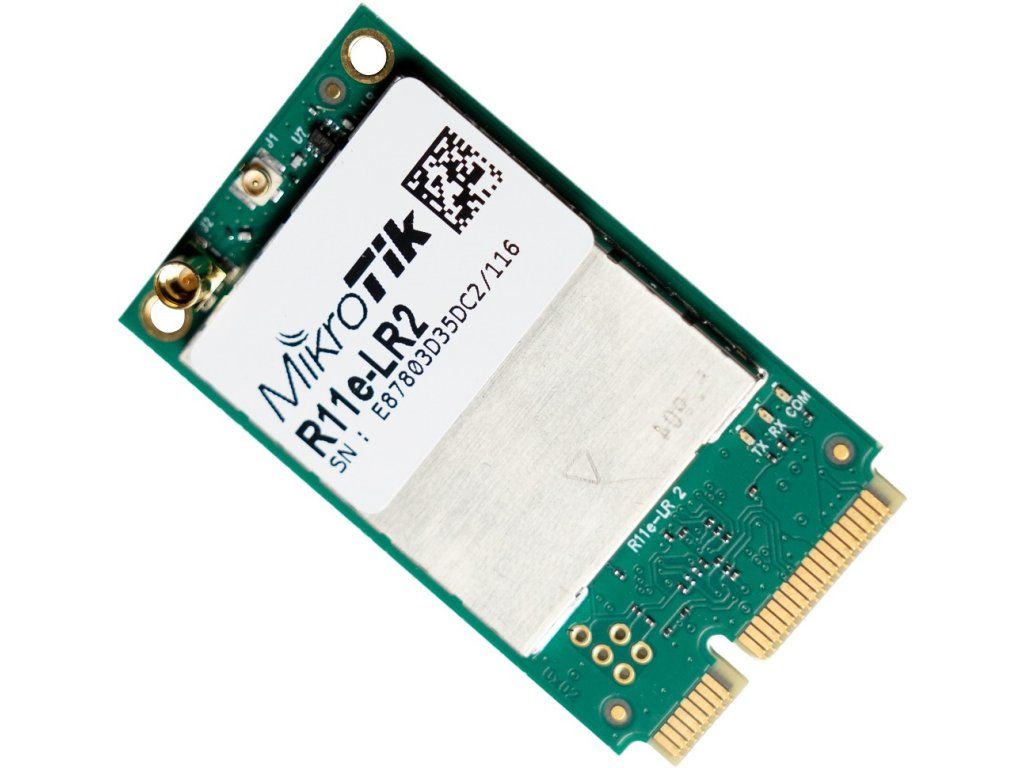

MikroTik R11e-LR2, LoRa miniPCI-e card, 2.4 GHz

Product detailed description

With the R11e-LR2 miniPCIe card, you can connect any MikroTik device that has a slot for a miniPCI-e card to the LoRa network. The card supports 4 different Rx channels from the 2.4 GHz frequency band (2403 MHz, 2425 MHz, 2450 MHz, 2479 MHz), one Tx channel, a total transmitting power of 10 dBm and one u.Fl and MMCX connector for connecting antennas. What is LoRa? LoRa is a solution for wireless data transmission where the main goal is the lowest power consumption at low acquisition cost and a small data rate is sufficient. MikroTik LoRa products are ready (not only) for The Things Network global network - a well-known open source infrastructure that provides LoRa network coverage and thousands of useful applications. With the help of The Things Network, you can get started with the Internet of Things in a single day. You can also easily upgrade to The Things Industries enterprise solution. Technical parameters Wireless Features Wireless Frequency: LoRa 2.4 GHz Connectors and interfaces Bus Type: miniPCI-e RF connectors: (1) MMCX, (1) u.Fl Physical characteristics Operating temperature [°C]: -40 to 70 Width [mm]: 30 Height [mm]: 5 Depth [mm]: 51
