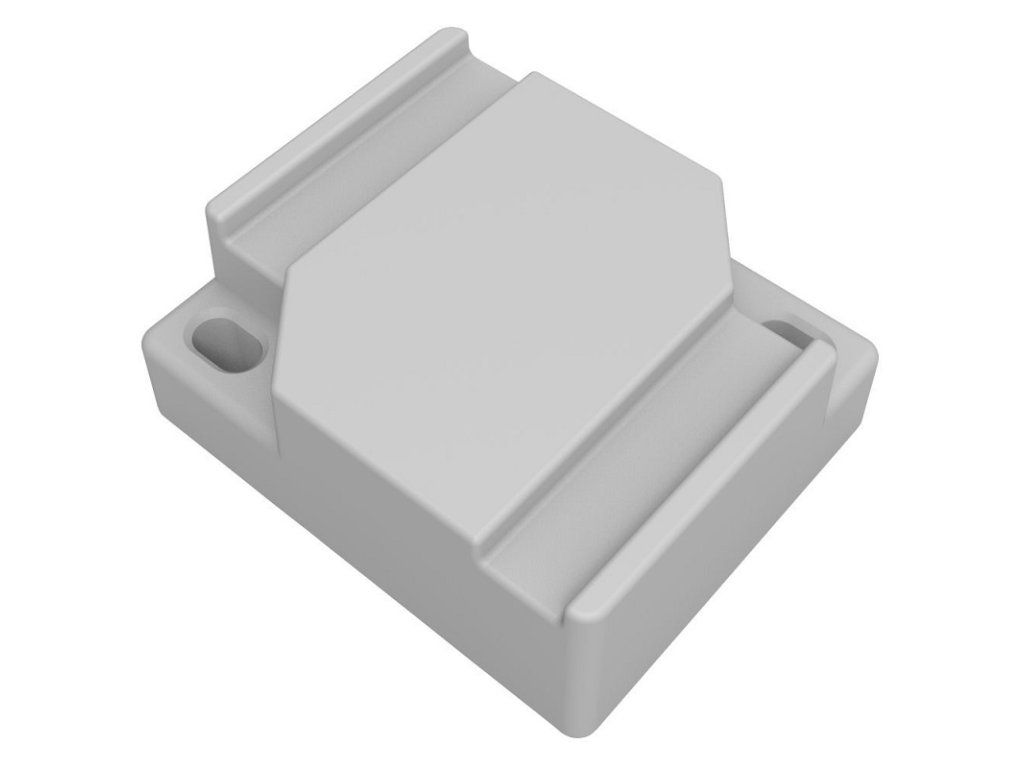

MikroTik TG-BT5-OUT, IoT outdoor localization BLE chip for KNOT

Product detailed description

BT location chips play an important role in IoT settings where Bluetooth is used to send data over short distances. You can use these small devices to track various objects. Just attach the tags to the necessary objects and the nearest gateway will recognize them within its range. They can be extremely useful in warehouse logistics or for tracking all kinds of heavy equipment and materials on a construction site. They consume so little power that the single improved built-in 550 mAh battery lasts for several years. Once activated, the chip will send advertising telemetry packets to a gateway (such as KNOT or other BLE gateways). Supported BLE telemetry formats - iBeacon - Eddystone - MikroTik How does it work? These packets contain the MAC address used for identification, as well as telemetry data such as acceleration, tilt and battery level. The gateway then sends the data to a remote server using MQTT or HTTP protocols. By default, advertising packets are sent once every 5 seconds, but you can change this value to suit your needs. For example, if you set the interval to 1 second, the battery will typically last about 5 years. The external version of the TG-BT5-OUT chip operates at temperatures from -20°C to 85°C, is dust-tight, fully sealed and cast in industrial form factors, providing an IP69 rating, and features a built-in accelerometer and temperature sensor. The built-in accelerometers can not only detect acceleration (motion), but can also detect if the device has fallen or tilted at any given time (free fall detection). MAC encrypted NFC and optional encryption is available. Using the "Beacon manager" application you will be able to configure the advertisement packet type, accelerometer parameters (power mode, triggering, data rate, etc.) and update the firmware. Technical parameters Power supply Battery capacity [mAh]: 550 Physical characteristics Degree of protection: IP69 Weight [g]: 27 Width [mm]: 38 Height [mm]: 16 Depth [mm]: 32 Wireless Features: Bluetooth 5.2 (Silabs BG22) Antenna integrated, 360°, 1.5 dBi gain Sensors: accelerometer, temperature sensor
