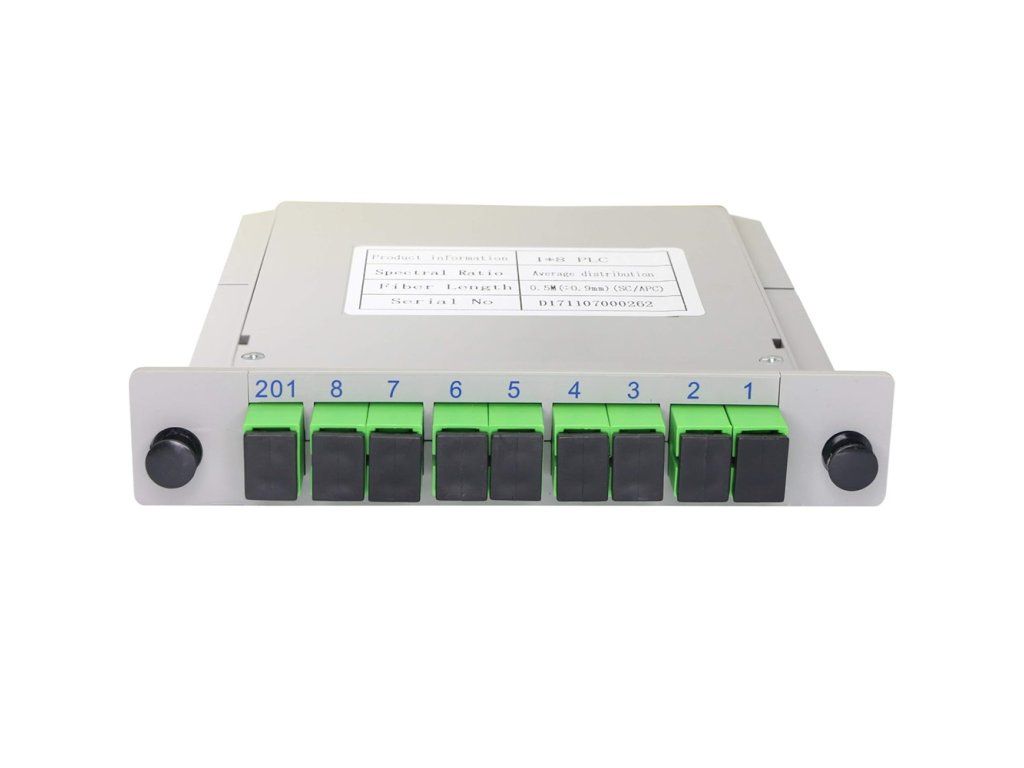

Modular PLC splitter PLC-IM-1X8-SC-APC, G657A, 1:8, SC/APC

Product detailed description

PLC Splitter 1X8 is characterized by small size, high reliability, wide operating wavelength range and good channel-to-channel uniformity, and PLC Splitter 1X8 is widely used in PON networks to realize optical signal power splitting. The product meets the requirements of GR-1209-CORE and GR-1221-CORE. PLC splitter (Planar Lightwave Circuit splitter) is a device used in optical communication networks to split optical signal into multiple branches. It is a passive device, which means it does not need power or electronic components to split the signal. PLC splitters are often used in a Passive Optical Network (PON), which is commonly used in telecommunications and broadband Internet access. The working principle of a PLC splitter is to split the optical signal using an integrated optical path on a silicon substrate. This path is created by a planar waveguide structure technique, which means that light waves are rectified and split into different branches or ports. Typically, PLC splitters are manufactured in the form of modules with a certain number of output ports, such as 1x2, 1x4, 1x8, 1x16, etc., where the first number indicates a single input path and the second number indicates the number of output ports. PLC splitters are cost-effective and offer low signal loss, which is important for maintaining the quality of data transmission in optical networks. They are widely used in optical access networks to distribute the signal from a single source to multiple receivers. Features Low insertion loss and low PDL Different coupling ratios High reliability and stability High channel count Wide wavelength range Parameters Splitting ratio: 1:8 Working wavelength (nm): 1260~1650 Fiber Type: G657A Insertion Loss (dB)(P/S Grade): 10.2/10.5 Loss uniformity (dB): 0.8 Return Loss (dB): 55 Polarization Dependent Loss (dB): 0.2 Directivity (dB): 55 Wavelength-dependent loss (dB): 0,3 Temperature stability (-40~85 °C) (dB): 0.4 Operating temperature (°C): -40~85 Storage temperature (°C): -40~85 Module dimensions (mm): 100×80×10
