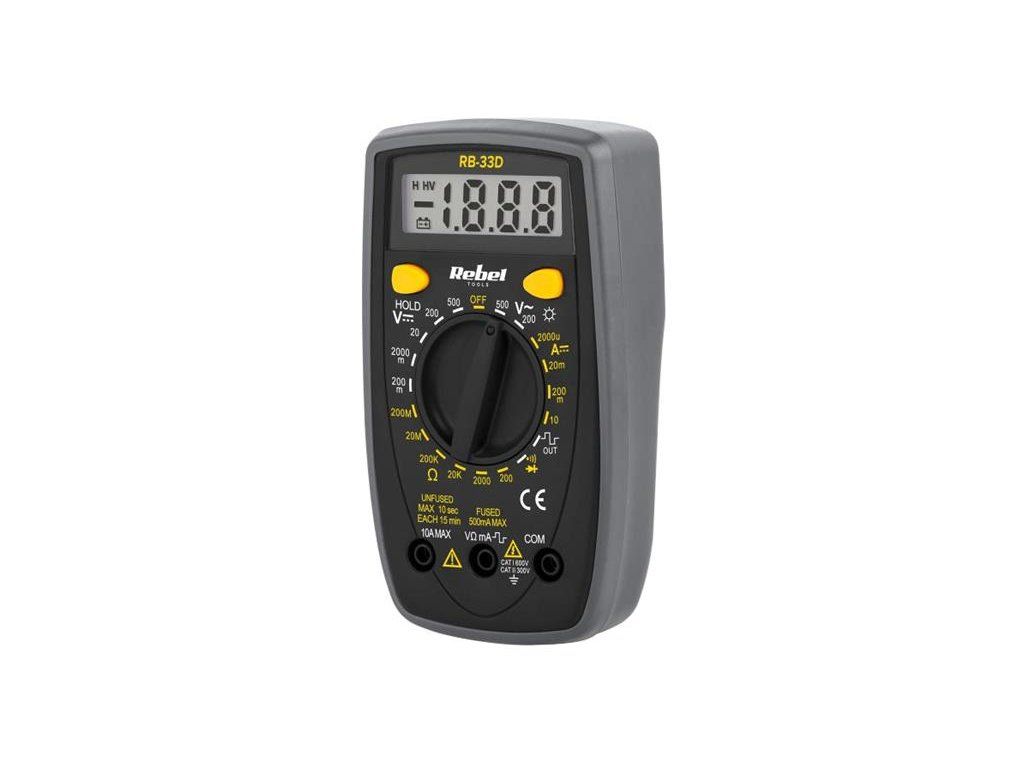

Multimeter REBEL RB-33D

Product detailed description

Multimeter REBEL RB-33D
The REBEL RB-33D universal meter is a precision measuring instrument that is ideal for both home and professional use. With its wide range of functions and robust design, the RB-33D is indispensable in the diagnosis and servicing of electronic equipment and wiring.

Wide range of measurement options
The REBEL RB-33D can measure direct current (DC) voltages ranging from 200 mV to 500 V and alternating current (AC) voltages up to 500 V, making it a versatile tool for working with a variety of circuits. The meter also allows accurate measurement of direct current (DC) up to 10 A and resistance over a wide range from 200 Ohm to 200 MOhm. In addition, the device is equipped with diode testing and circuit continuity check functions, which greatly facilitates fault diagnosis.

Generator function and advanced operator functions
The REBEL RB-33D electrometer has a unique generator function that allows it to generate test signals, which is useful in the diagnosis and testing of electronic systems. The device is also equipped with a freeze last reading function, which facilitates the analysis of measurement results. Automatic polarization and the ability to manually change the measurement ranges ensure flexibility and accuracy of work.

Compact design and easy to use
The REBEL RB-33D features compact dimensions (133 x 75 x 37 mm) and a weight of 166 g, making it easy to carry and use. The backlit 47 x 15 mm display allows comfortable reading of the results even in low light conditions. In addition, a folding stand ensures that the device is stably positioned on the workbench, and a low battery indicator informs the user when the battery needs to be replaced, thus ensuring continuous readiness for work.

Backlit display
Manual change of measurement range
Folding stand
Last measurement suspension
Low battery indicator
Polarity: automatically
Sampling rate: 2 times per second

MEASUREMENT RANGES
DC voltage: 200 mV, 2000 mV, 20 V, 200 V, 500 V
AC voltage: 200 V, 500 V
DC current: 2000 µA, 20 mA, 200 mA, 10 A
Resistance: 020m, 2000m, 020mOm00 200 kOhm, 20 MOhm, 200 MOhm
Diode test
Continuity test
Generator function

Technical parameters:

Maximum deduction: 1999
Display size: 47 x 15 mm
Storage temperature: -10°C ~ 40°C ~8%
Operating temperature: -10°C ~8°C ~50°C at humidity <85%
Power: 9V battery
Dimensions: 133 x 75 x 37 mm
Weight: 166 g

Package contents: multimeter, test leads, instructions
