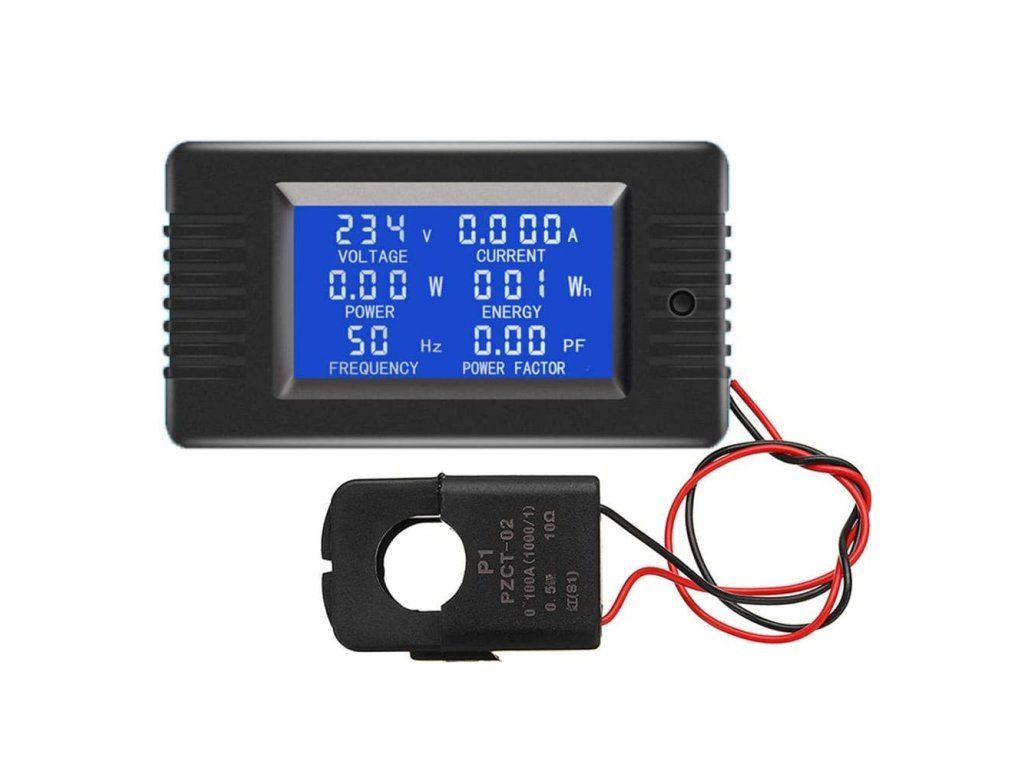

Peacefair PZEM022 - Multitester, ammeter, wattmeter

Product detailed description

Peacefair PZEM022 - Multitester, ammeter, wattmeter Functions: - measurement of electrical parameters (voltage, current, active power, energy, frequency, power factor) - overload alarm above adjustable threshold - alarm flashing and backlight - the measured energy can be reset using the button - data storage after switching off - all data on LCD backlit display - backlight can be switched off Specifications: Working and measured voltage: 80~260VAC Measured current: AC 0-100A / 22000W non-contact Operating frequency: 45-65Hz Measurement accuracy: 1.0 degree Dimensions: 90×50×20mm Display: 1.Power Range: 0.2~22000W <10W Display Format: 0.00~9.99W <100W Display Format: 10.0~99.9W <1000W: 100~999W <10000W display format: 1.00 ~ 9.90 kW >10000W display format: 10.0 ~ 22.0kW 2.Energy Range: 0 ~ 999 kWh <1kWh Display format: 0 ~ 999Wh <10kWh Display format: 1.00 ~ 9.99kWh >10kWh Display format: 10 ~ 999kWh Voltage Range: 80 ~ 260VAC Display format: 80~260V Current Range: 0.001~100AAC <10A Display Format: 0.000~9.999A >10A display format: 10.00~99.99A Frequency Range: 45~65Hz Display format: 45~65Hz Power Factor Range: 0~1PF Display Format: 0.00~1.00PF Setting: Reset Energy Hold the button until the energy value flashes. Then release. Press the button briefly to reset the value on the display. Setting the alarm threshold Hold the button until "SET CLr" appears on the LCD display. Then release. The display shows the current alarm value. The last digit starts flashing. The alarm value can be changed by repeatedly pressing the button briefly. When the setting is complete, press the button for 5 seconds to save. The active energy threshold range is 0.0~2.5kW. Notice: 1. This module is only suitable for indoor use. 2. The applied load must not exceed the rated power 3. Follow the wiring diagram on the back of the product
