Platinum Tools TG210K1 Tone Generator Probe KIT

Product detailed description

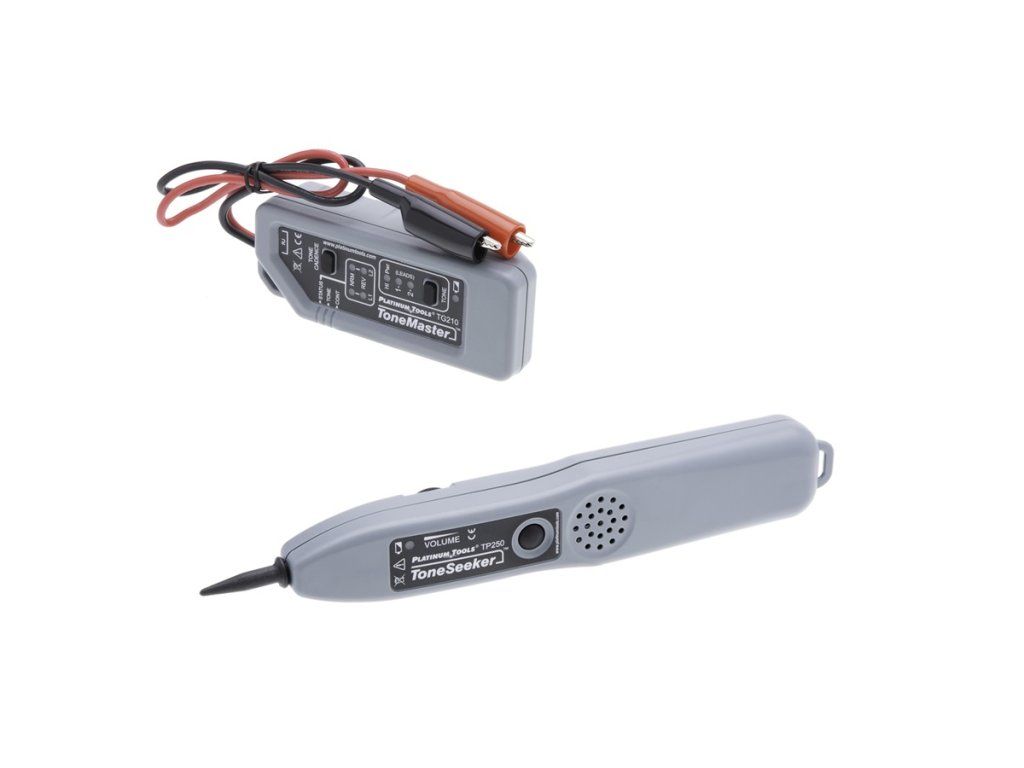

Platinum Tools TG210K1 Probe with Tone Generator KIT Package contents: 1x Platinum Tools TG210C ToneMaster, High Power Tone Generator - TURBO 1x Platinum Tools TP250C ToneSeeker, Search Probe 1x Padded bag for convenient storage. A/ Platinum Tools TG210C ToneMaster, High Performance Tone Generator - TURBO, with crocs With the TURBO function, 700% more power than a conventional generator Dual tone 1165 Hz and 874 Hz Dual tone 1165 Hz and 874 Hz Performance: LO 3.6 dBm HI 9.3 dBm TURBO Power Mode LO 12.3 dBm HI 18.4 dBm Surge protection: DC 60 V continuous AC 300 V peak, 2 secs continuous (into 600OHM) - DC 52 V Tone Mode: 250 DC or peak AC Full battery capacity continuous 120hrs Battery: 1pc 9 V Alkaline, 540 mAh (Not included) B/ Platinum Tools ToneSeeker Tone Tracer is an ergonomic, highly sensitive probe for the field professional. When used in conjunction with any analog tone generator, the ToneSeeker identifies wires and cables without having to make direct metal-to-metal contact with the conductor. Compatible with any analog tone generator, the ToneSeeker produces a clear and loud tone when tracing a cable. Frequency filtering blocks out background noise, and an auto shut-off feature extends battery life. The surface area and shape of the replaceable tip are optimized to detect weak tones and penetrate wire bundles to facilitate wire tracing. Product Features: - Comfortable ergonomic design - Smooth volume adjustment - Activation button - Interchangeable tip - Battery indicator Product parameters: - Input impedance 10 MOhm (for internal ground/outdoor package - Probe tip min 10 KOHM - Frequency range : 340 Hz - 1.6K Hz - Battery life at full capacity continuously 15 hours usually - Battery : 9 V alkaline 540 mAh ( not included)
