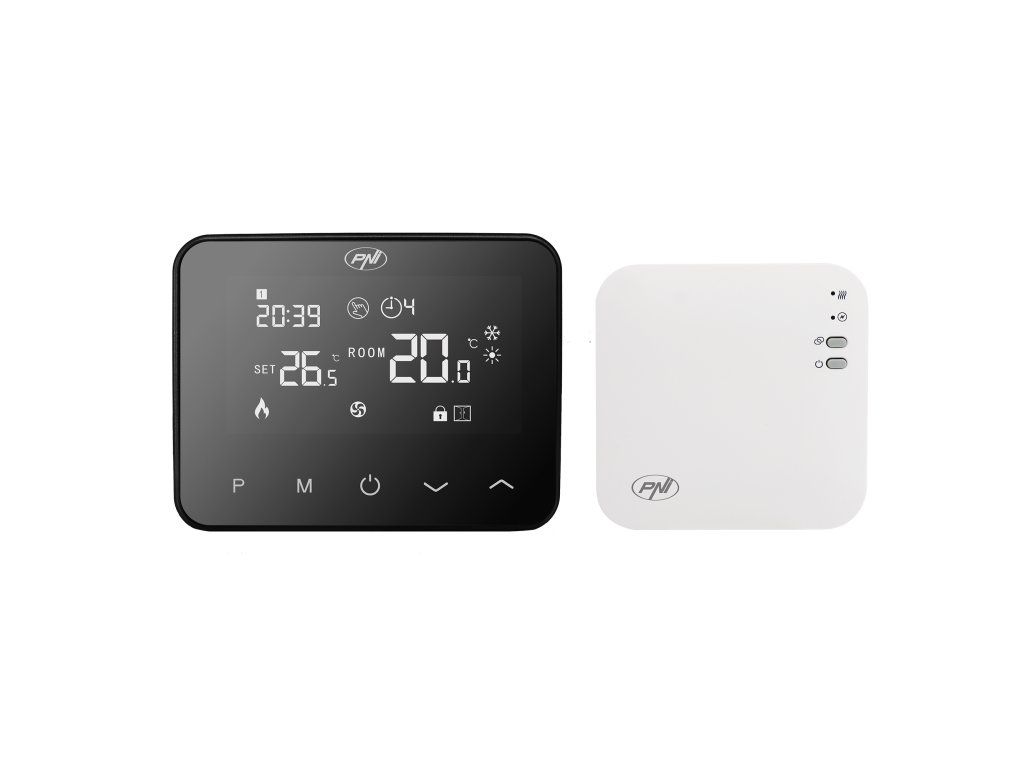

PNI CT40 PRO
Code: PNI-CT40Product detailed description
Winter Mode / Summer Mode
The PNI CT40 PRO thermostat allows intelligent control of the boiler or heat pump, regulating the temperature in your home, regardless of the season.
The thermostat is equipped with advanced functions and can be controlled remotely via the Tuya Smart or Smart Life app.
Intelligent remote control
Compatible with the Tuya Smart app, the PNI CT40 PRO thermostat allows complete control via smartphone: on/off, configuration, temperature change, programming and monitoring.
Precise control – Hysteresis of 0.1°C
The thermostat ensures that the temperature is maintained in a very precise range, reducing fluctuations and increasing comfort.
The hysteresis value can be changed via the advanced settings menu, depending on personal preference, in the range of 0.1°C ~ 0.6°C.
Dual operation, programmed and manual
Programmed mode: up to 4 customizable daily programs for automatic temperature management. Programming can be done both directly from the thermostat and from the app.
Manual mode: possibility to manually start/stop the heating when needed.
Safety features
Child Lock (Key Lock): Prevents accidental changes in temperature.
Open window detection: quickly detects heat loss and regulates the operation of the heating system.
Anti-frost protection: maintains a minimum temperature to avoid damage to the installation in winter.
| Product identification | |
| Product code | PNI-CT40 |
| General features | |
| Product type | Wireless thermostat and Internet control |
| Intended for | Thermal power plants |
| Compatible brand | Universal |
| MOUNTING | Desk/wall |
| Material | ABS |
| Color | White |
| Connectivity | - Wireless to Internet router: WiFi 802.11b/g/n (2.4 GHz); WPA2 (TKIP and AES) - Wireless between the 2 units: 868 MHz radio - Wired to the boiler |

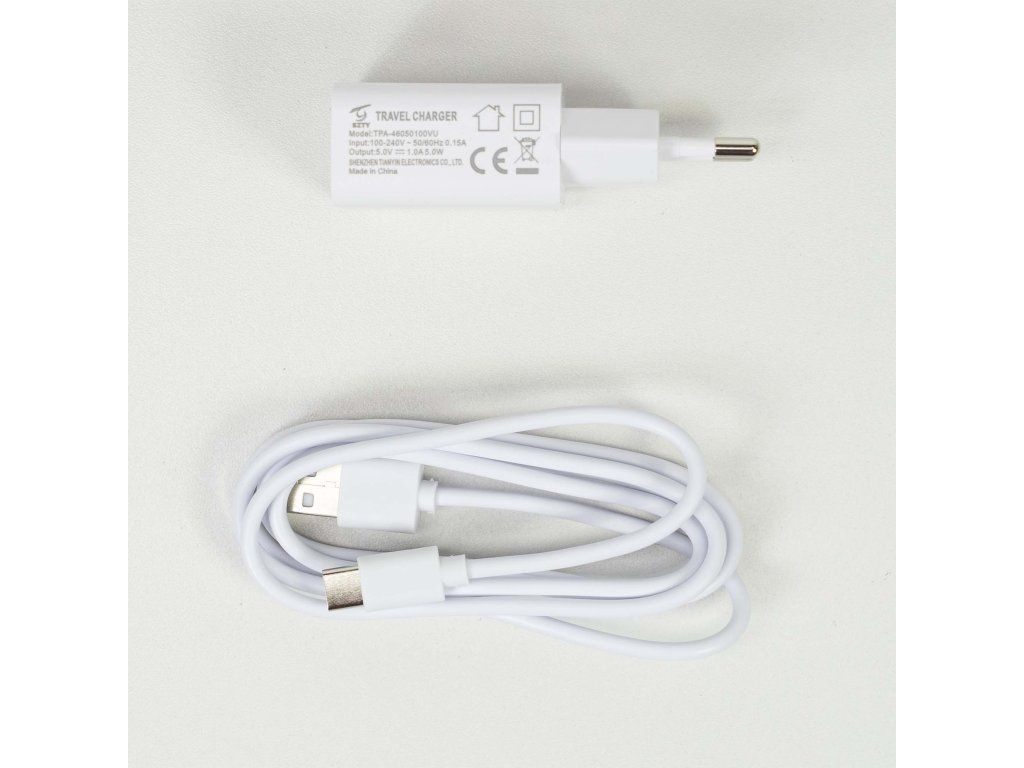

| Input voltage supply type | Control unit power supply: 2 x AA 1.5V alkaline batteries or 5V 1A (via USB-C) Receiver unit power supply 230 V AC, 50/60 Hz |
| Set temperature range | 5 - 35°C |
| Temperature setting step | 0.5°C |
| Displayed temperature step | 0.1°C |
| hysteresis | ± 0.5°C |
| Functions | 4 daily programs Heating mode and cooling mode Open window detection Child protection Display of set and measured temperature Large backlit screen with large visible characters |
| Dedicated smartphone application | Tuya Smart / Smart Life |

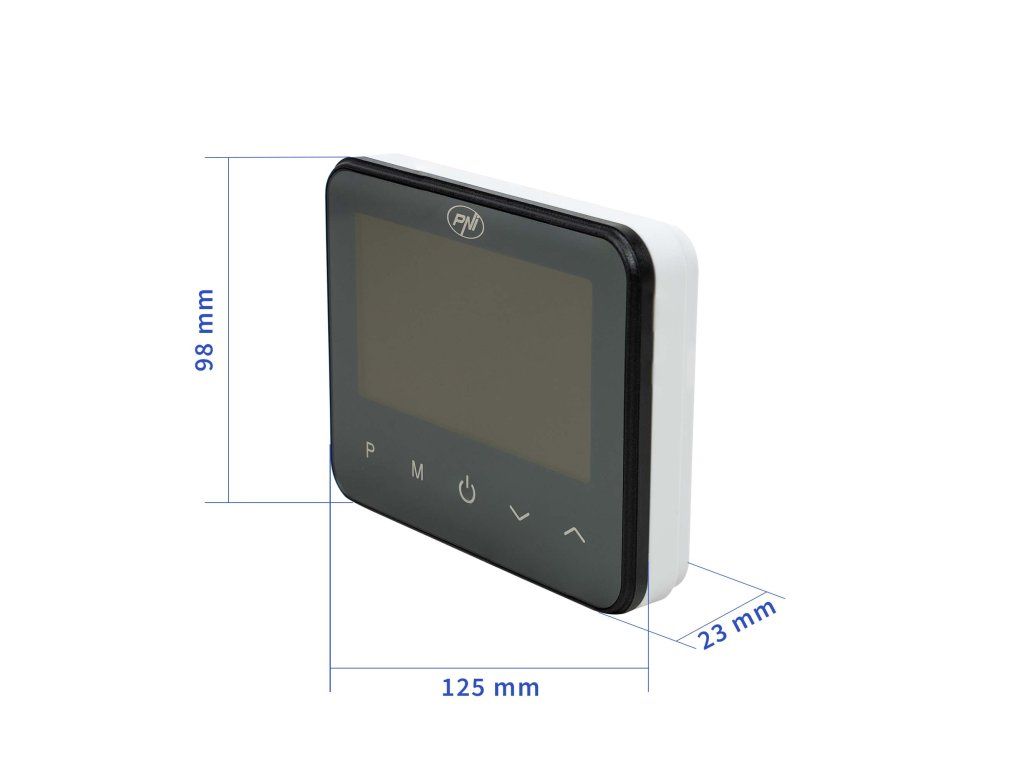

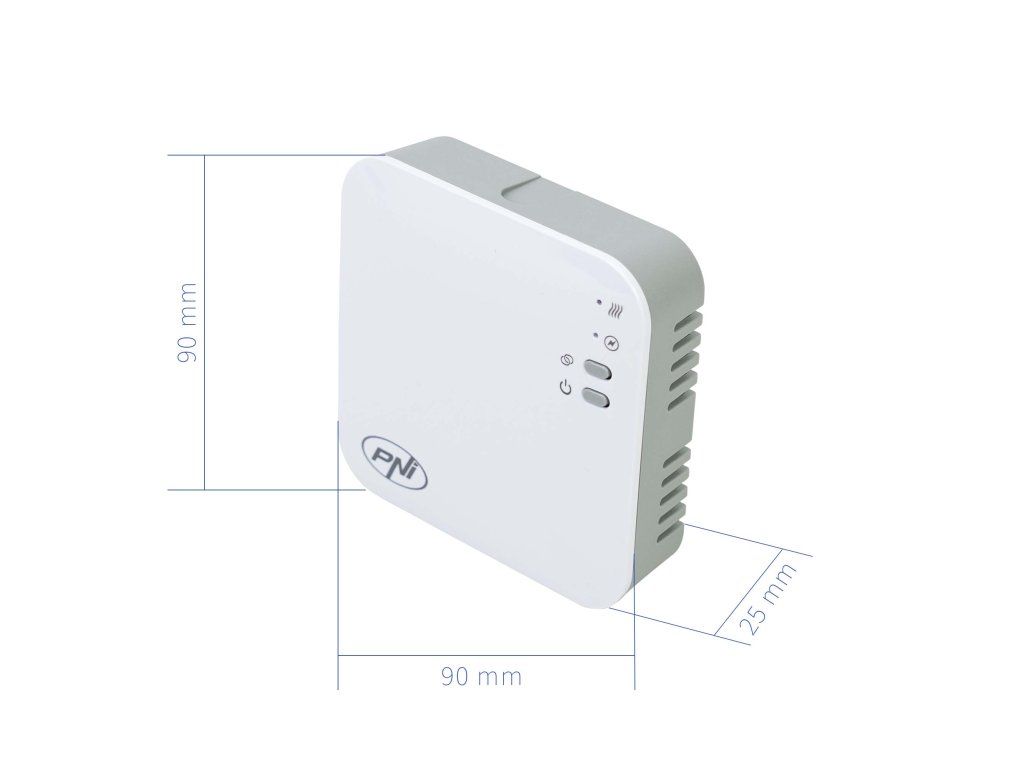

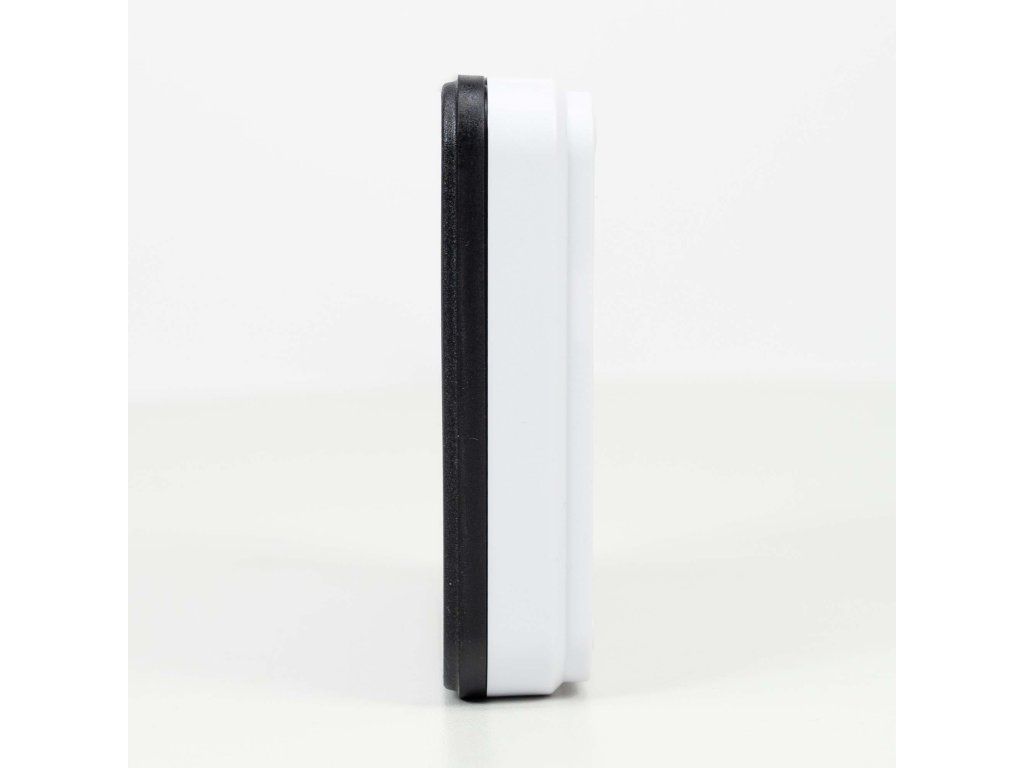

| Size | Control unit dimensions: 125 x 98 x 23 mm Receiver unit dimensions: 90 x 90 x 25 mm |

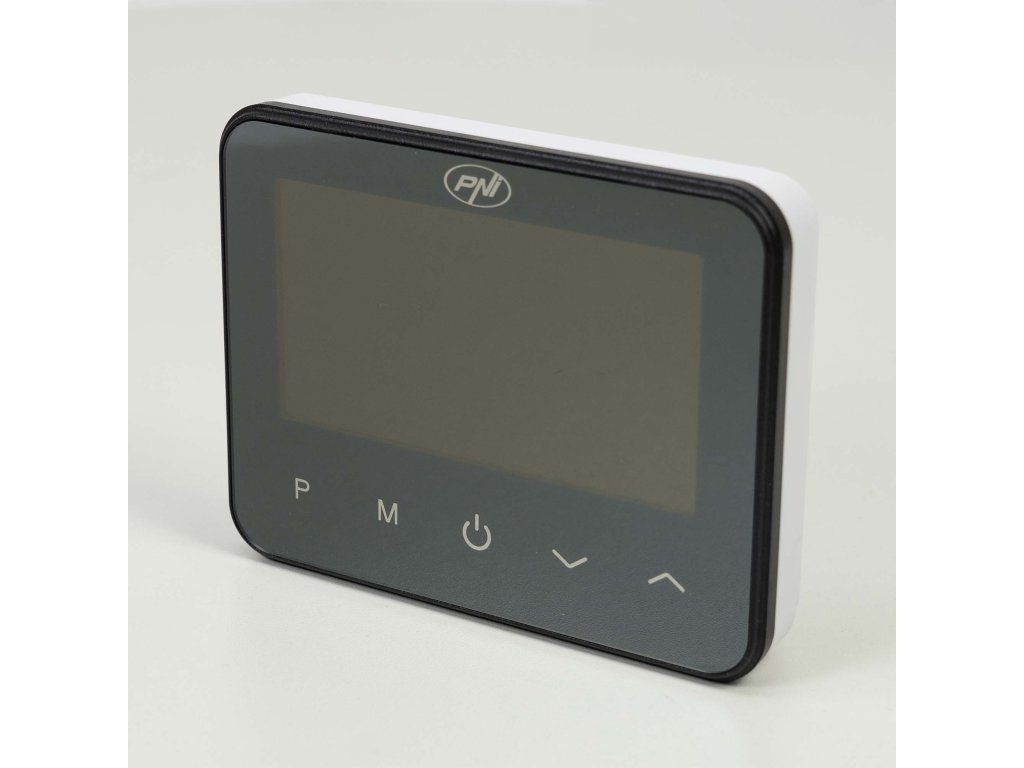

| Central unit features | |

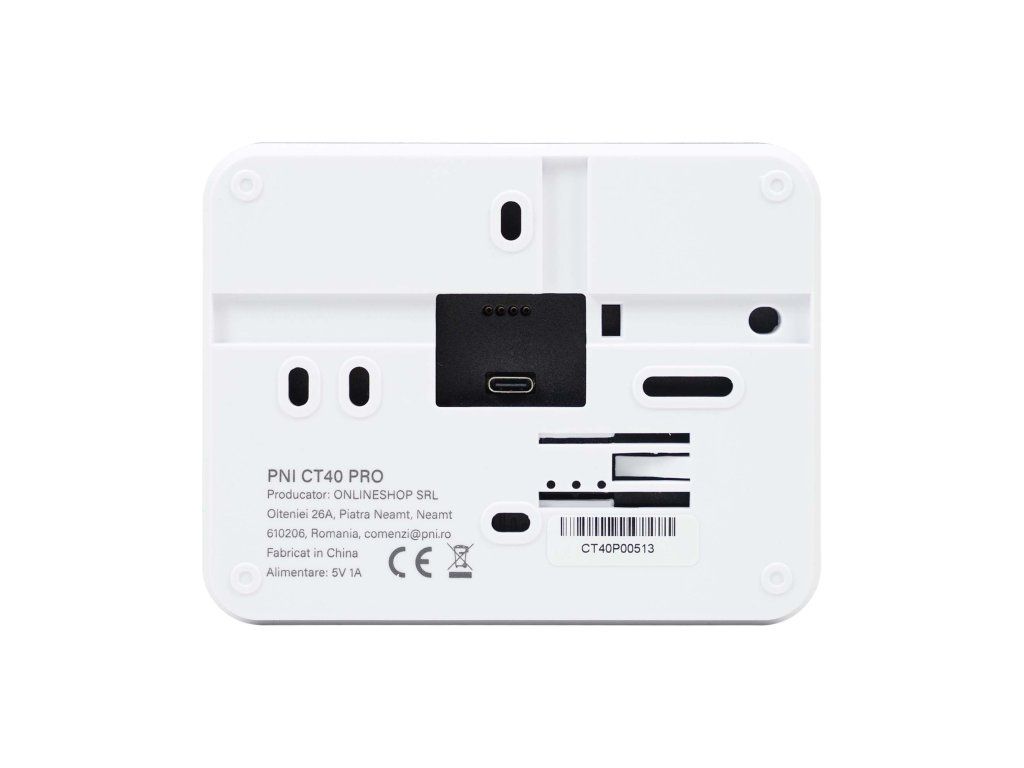

| feeding | 2 LR3/AAA batteries (not included) / USB Type-C |

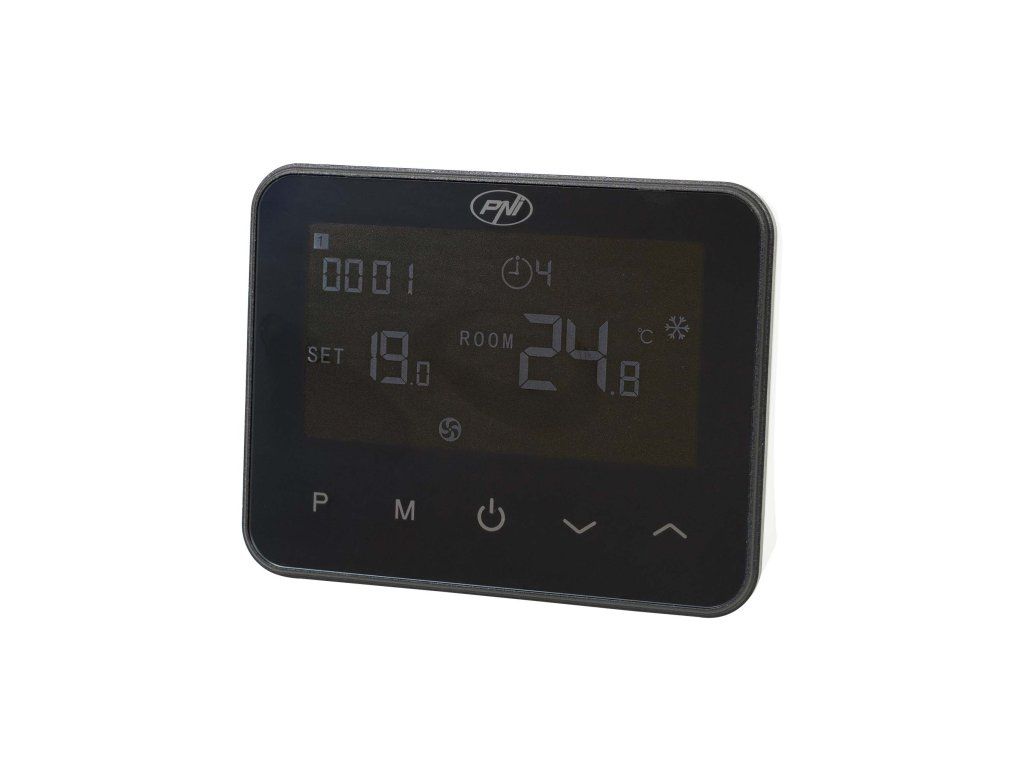

| Display parameters | - Measured temperature (in the room) - Set / desired temperature - Current time - Current program - Wireless connectivity status |
| Mounting surface | Wall / Desk |

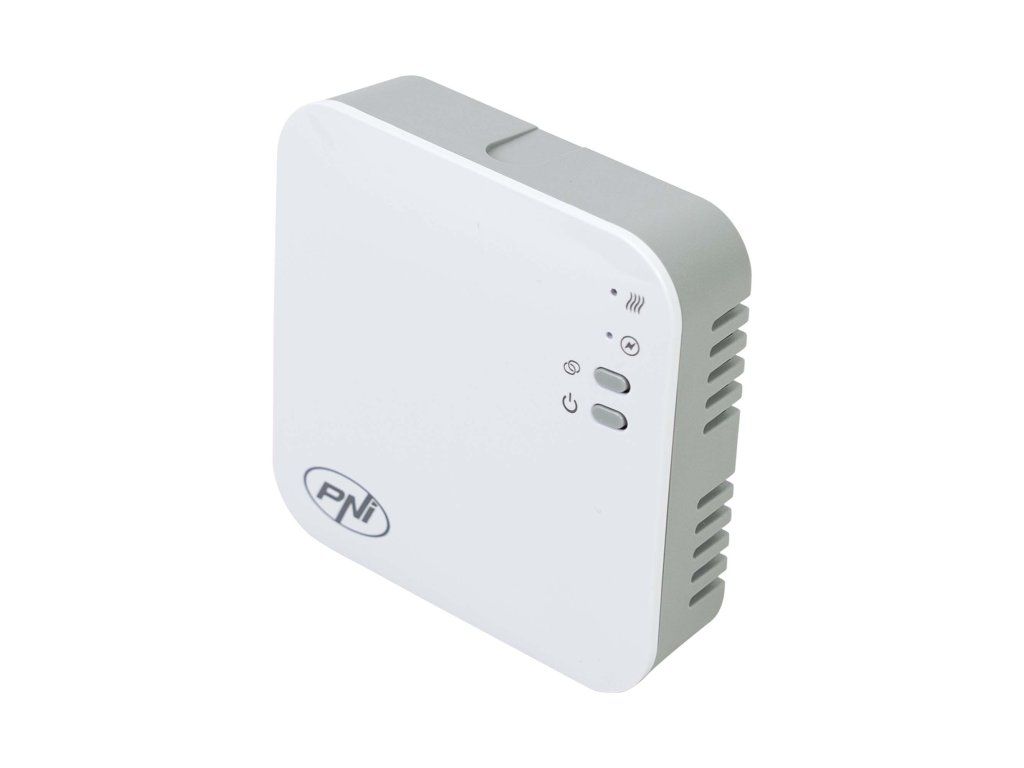

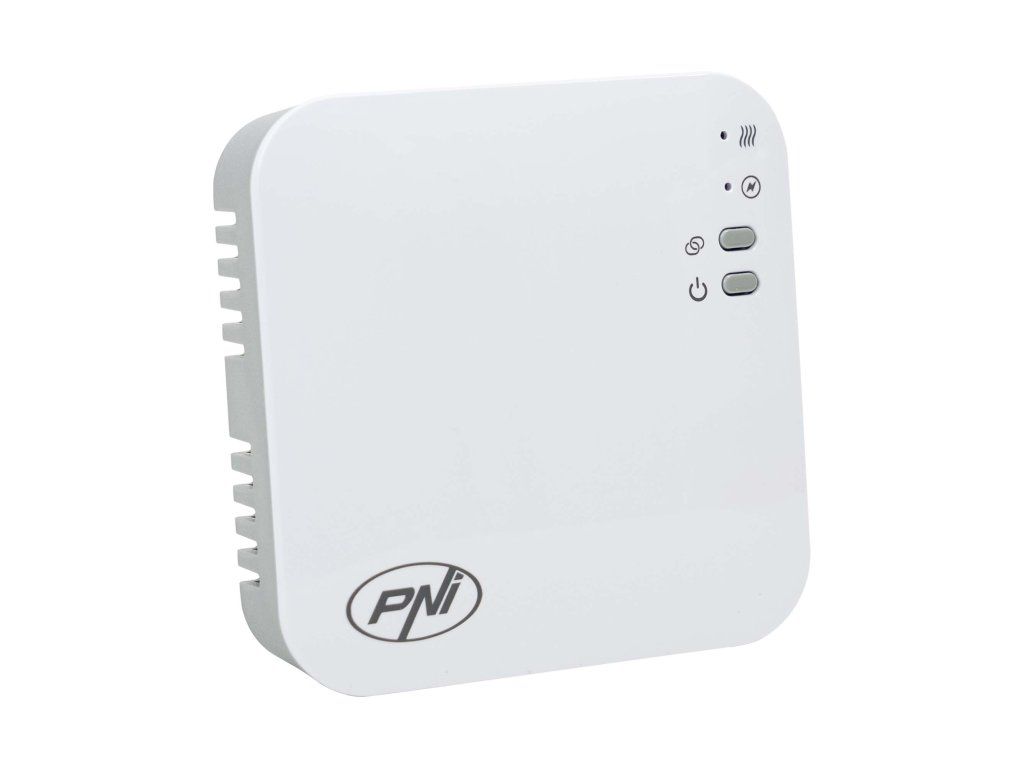

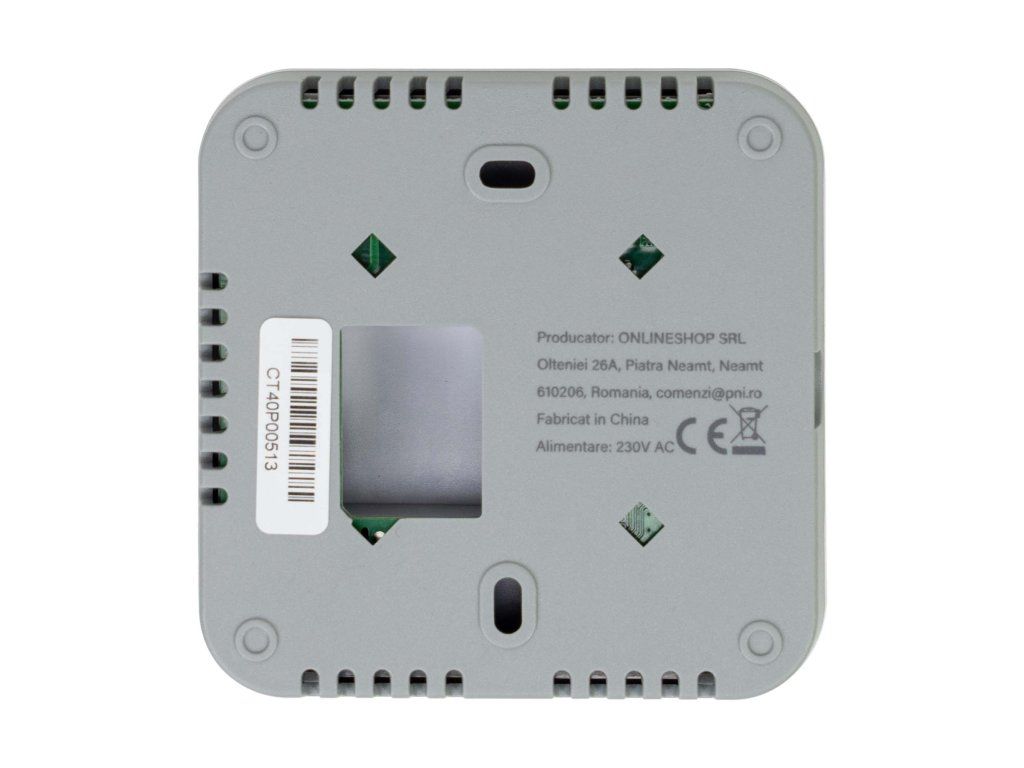

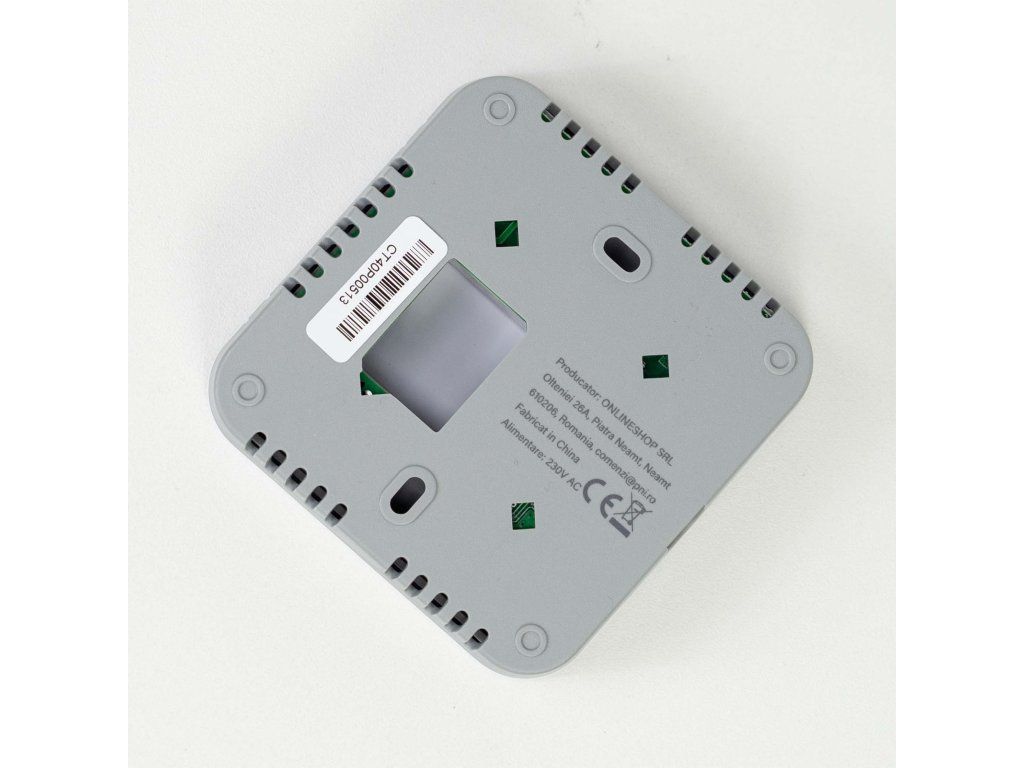

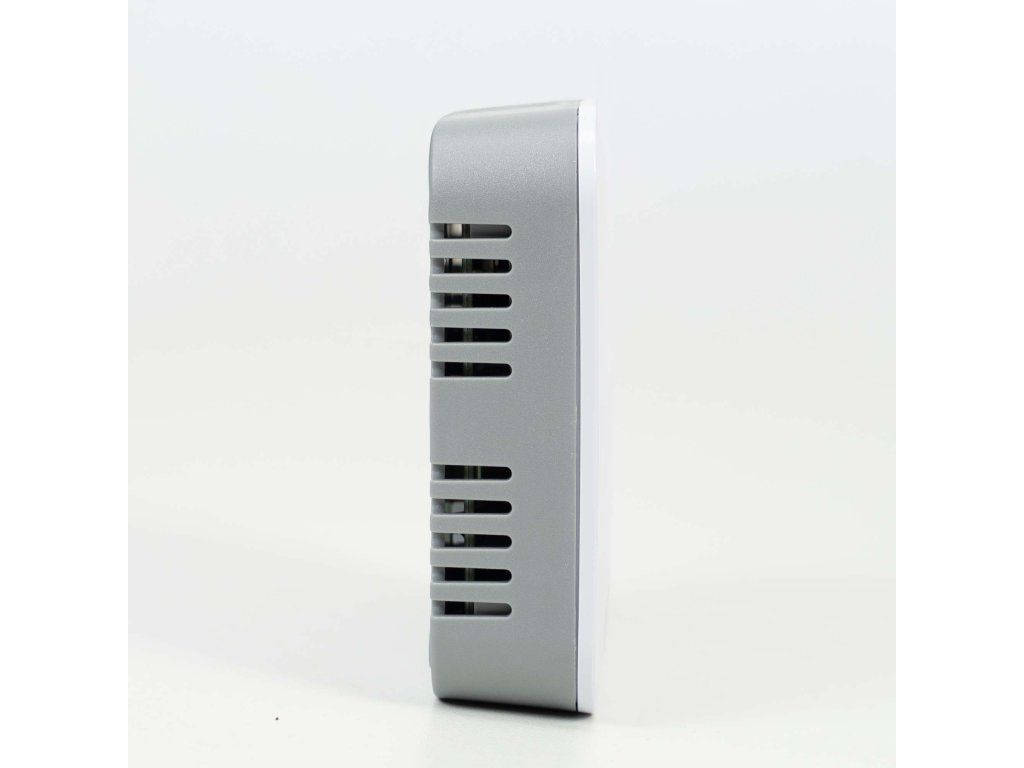

| Receiver unit features | |
| Mounting surface | Wall |
| Communication frequency | - with internet router: WiFi 802.11b/g/n (2.4 GHz) - with central unit: radio 868 MHz - with central heating: wired |
| feeding | 230VAC 50/60Hz |
| Central control type | NO/NC relay potential-free (de-energized) |

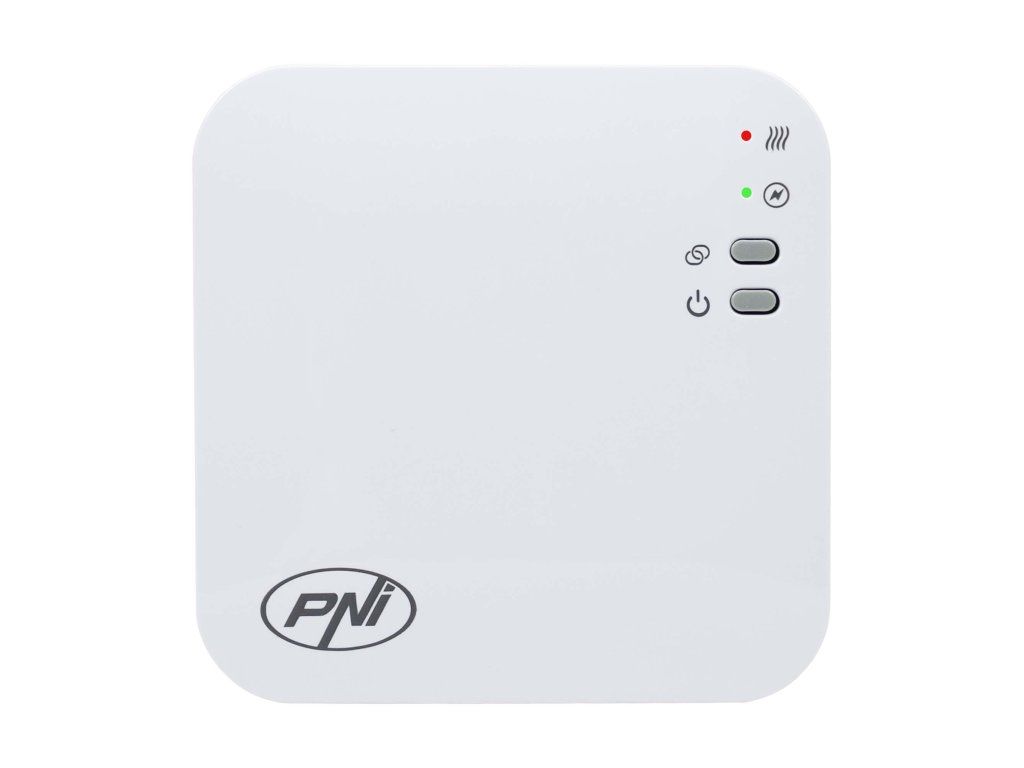

| Functions | - 2 multi-function buttons - 2 status display LEDs - Can close a classic NO (Normal open) control circuit of a heating plant that complies with the relay parameters |

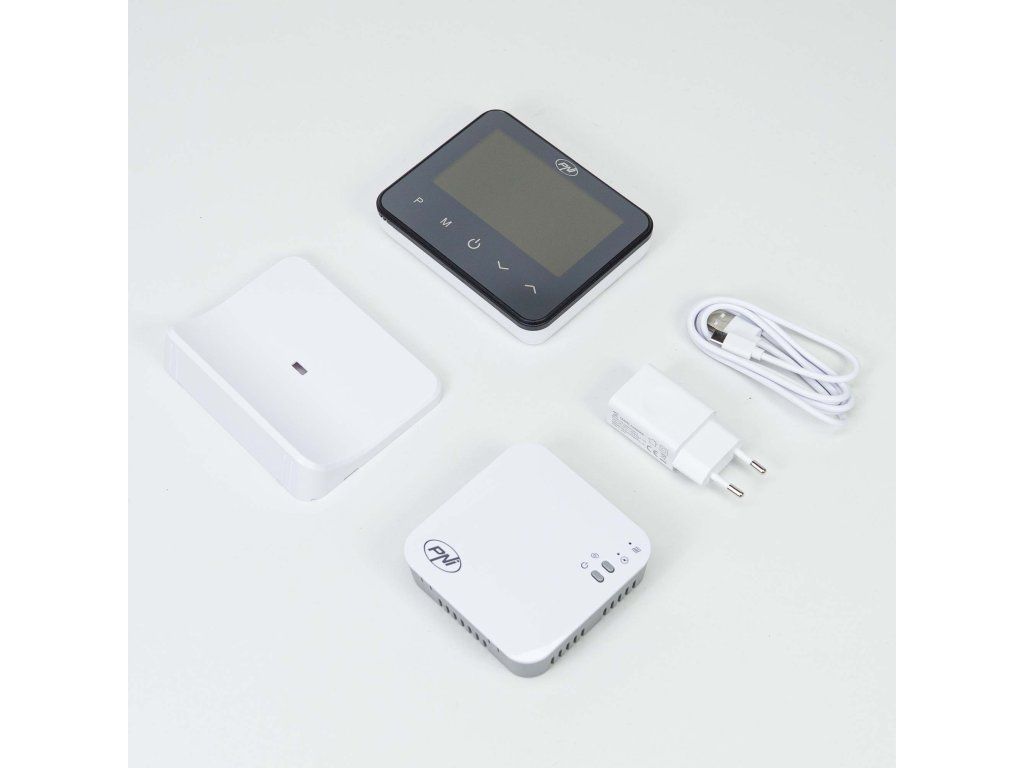

| The package contains | |
| Central unit | Yes |
| Receiver unit | Yes |
| Mounting accessories | - Wall mounting bracket - Desk stand - Mounting screws |
Additional parameters
| Category: | Room thermostats and controllers |
|---|---|
| Weight: | 0.498 kg |
| EAN: | 5949066541643 |
