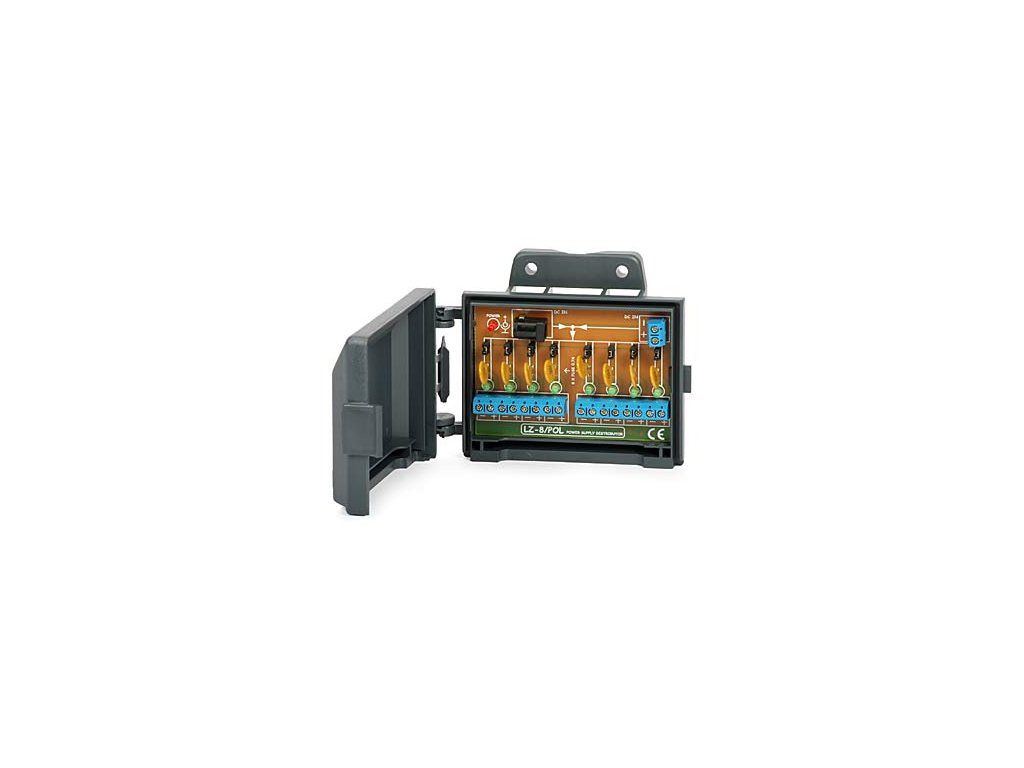

Power distributor LZ-8 ( 8 outputs )

Product detailed description

The LZ-8/POL is a passive device and allows power distribution. An undeniable advantage of using the LZ-8/POL in monitoring a system powered from a central location is the additional protection against interruptions. Without individual protection of each power line, an intruder can interrupt the power supply to the entire system by simply disrupting the lines of a single camera. Product Description: Name: LZ-8/POL Code: M1803 Number of outputs: 8 Number of inputs: 2 Input voltage: 0-24 VDC (typical 12 VDC) Maximum total current: 5.6 A Maximum output current (single output): 0.7 A Type of fuses: Polymer Input: 2.1/5.5 mm socket / connecting block Output: Connecting block Operating temperature/humidity range: -40°C ... 45°C / < 95% Dimensions (LxWxH): 120x60x35 mm Total weight: 0.065 kg Packaging : Foil
