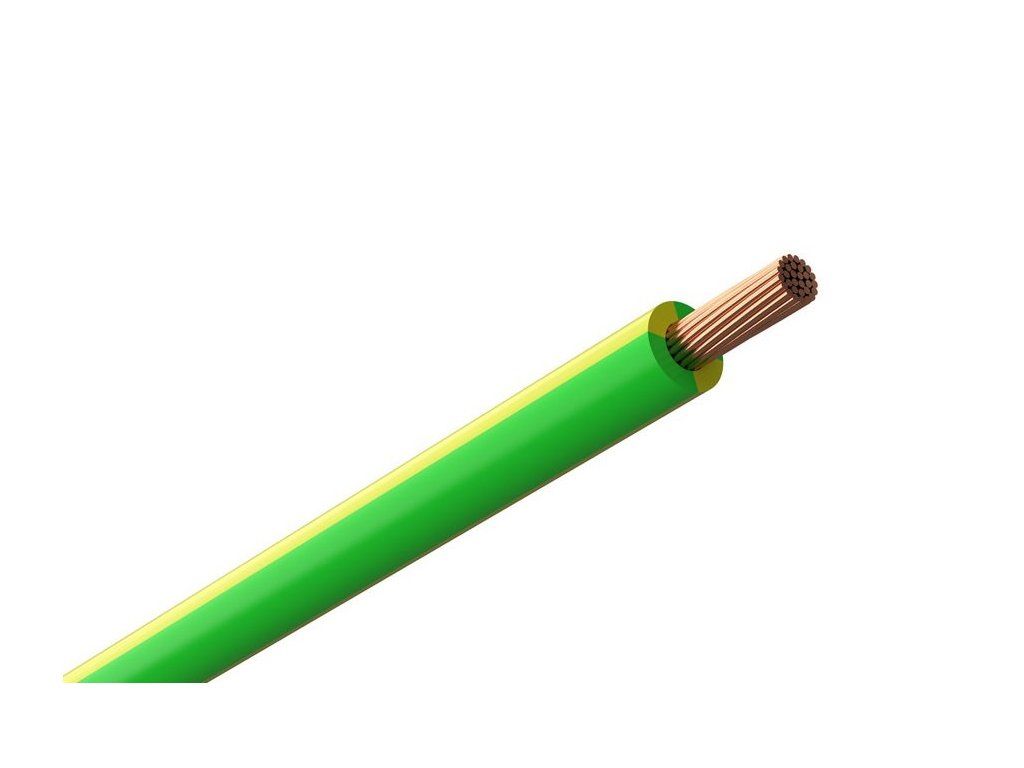

Power earthing cable CYA H07V-K 16 ZZ, 1x16 (green-yellow), 100m pack

Product detailed description

The CYA H07V-K 16 ZZ conductor is suitable for fixed protected installations, for lighting and control equipment and for signal or control circuits. 100m pack at a discounted price. Design 1. Copper stranded bare or tinned core, class 5 according to EN 60228 2. PVC insulation Product features: Rated voltage U0 /U 450/750 V Test voltage 2 kV Maximum operating short-circuit temperature +160 °C Maximum core operating temperature +70 °C Operating temperature range -15 *) to +70 °C for moving leads -40 *) to +70 °C for fixed installation Minimum wire laying and handling temperature +5 °C Minimum storage temperature -40 °C Insulation colour EN 50525-1 Flame spread resistance EN 60332-1-2 Class of reaction to fire according to EN 50399 Eca HAR certificate RoHS yes REACH yes Technical parameters Conductor material: Cu, bare Nominal conductor cross-section: 16 mm2 Number of cores: 1 Cable type: CYA Conductor class: Class 5 = fine wire (Flexible) Conductor shape: Round Outer diameter approx.: 7.3 mm Shielding: No Sheath color: Yellow-green Core insulation: PVC Rated voltage U: 750 V Rated voltage U0: 450 V Max. external cable temperature, fixed: 5 - 70 °C Technical designation: H07V-K Price per 100m
