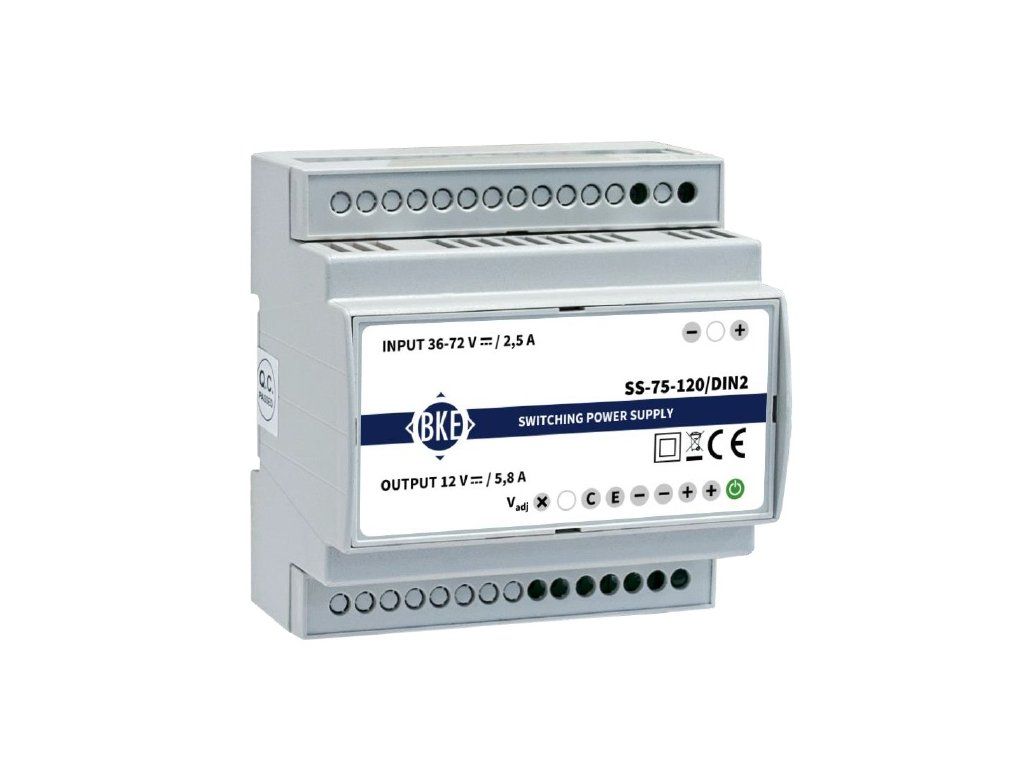

Power supply/DIN rail charger BKE power supply SS-75-120/DIN2_36-72V

Product detailed description

Switching power supply DC/DC converter with galvanically isolated output circuits, designed to power electronic devices. DIN35 rail mounting. Operation indication by LED semiconductor switch. TECHNICAL PARAMETERS Input Input voltage 36 - 72 V DC Input current max. 2.5 A Input fuse Yes (internal T 4 AH / 250 V AC) Output Output voltage 12 V DC (adjustable from 11 to 14 V) Output current 5.8 A Output power 70 W Power reduction -2 %/°C from 40 °C to 50 °C ambient temperature Short-circuit protection Yes (with restart) Residual output voltage ripple <100 mV Other data Efficiency, max. approx. 87 % Power losses at nominal load approx. 10 W Voltage pulse resistance 0.5 kV between + and -, 0.5 kV between +,- and box Electrical strength 4 kV primary - secondary Natural cooling Protection IP IP20 Weight 270 g Housing material NORYL Dimensions 90 x 89 x 62 mm (H x W x D) Device class III Pollution degree 2 RoHS compliant Yes
