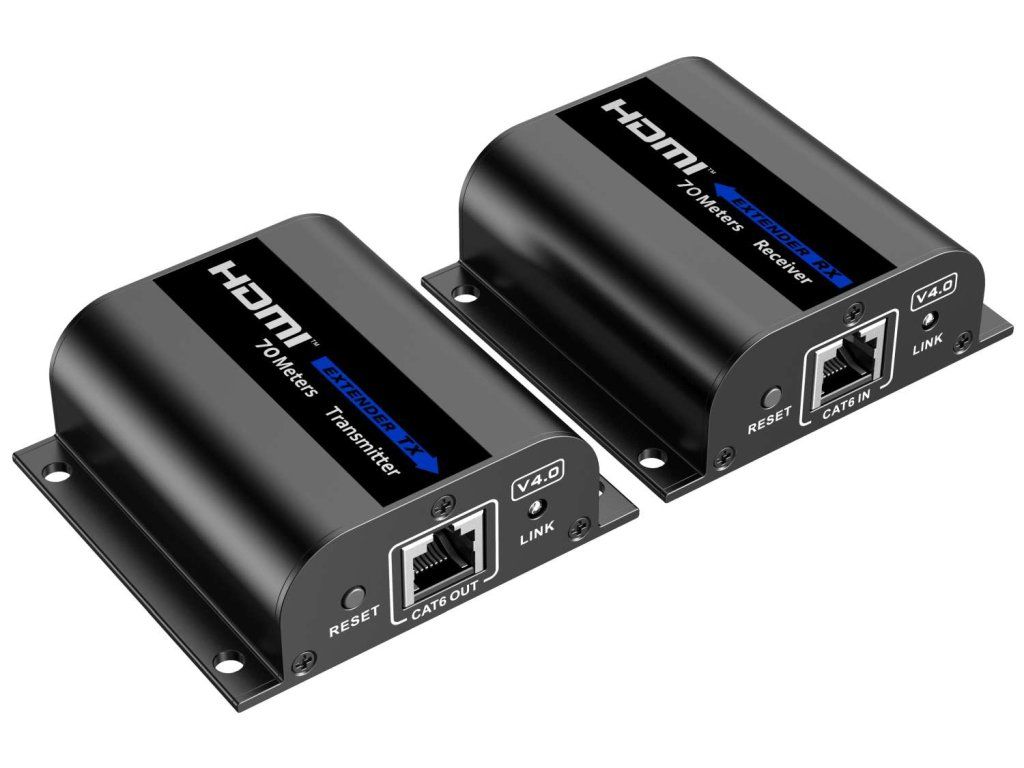

PremiumCord 4K@30Hz, FULL HD 1080p HDMI extender to 70m via Cat6/Cat6a cable

Product detailed description

PremiumCord 4K@30Hz, FULL HD 1080p HDMI extender to 70m via Cat6/Cat6a cable The device allows you to transmit HDMI FULL HD 1080p signal up to 70m over a single network cable. - Supports 4K@30Hz resolution up to 40m and FULL HD 1080p up to 70m - 10.2 Gbps transmission speed including HDCP support - HDMI support: HDMI1.4 - For resolutions: 3840x2160@24/25/30Hz, 800x600, 1024x768, 1280x720, 1280x960, 1366x768, 1440x900, 1680x1050, 1920x1080, 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@24/25/30/50/60Hz - Extender uses uncompressed signal format - No signal delay - Supports HDR10 - Supports pass-through EDID - Supports Deep Color, DTS-HD, DTS-Audio, LPCM - Extender transmits HDMI digital video, audio and IR control signals - Transmits IR signal for IR remote control 20~60KHz - Uses high quality 1x Cat6/Cat6a/Cat7 LAN cable for connection ( For a distance of 50m, use copper cable with AWG23 conductors , such as UTP Cat6 cable in meter code: sutpd6c3 ) - The extender must not be connected to an active computer network, switch, router or other active network device. The extender's transmitter and receiver must be directly connected by LAN cable, preferably without interruption. - Industrial Grade Quality Design (Lightning/Surge/ESD Protection, etc.) - The transmitter and receiver are powered by the included 230V/5V power adapters - Transmitter and receiver has a handy RESET button - The transmitter and receiver have signal LEDs to indicate when the units have connected and signal transmission is in progress. - Consumption: TX less than 1.5W, RX less than 1.5W - Operating temperature:-20°C to 60°C - Humidity: 0 - 90%RH - Unit dimensions: 71.6(W) x 66.6(L) x 24.8(H) mm - Weight: TX:85g RX:85g - Metal housing - Color: Black Package: 1x Transmitter unit 1x Receiver unit 2x IR cables 1x manual 2x 5V/500mA power adapter
