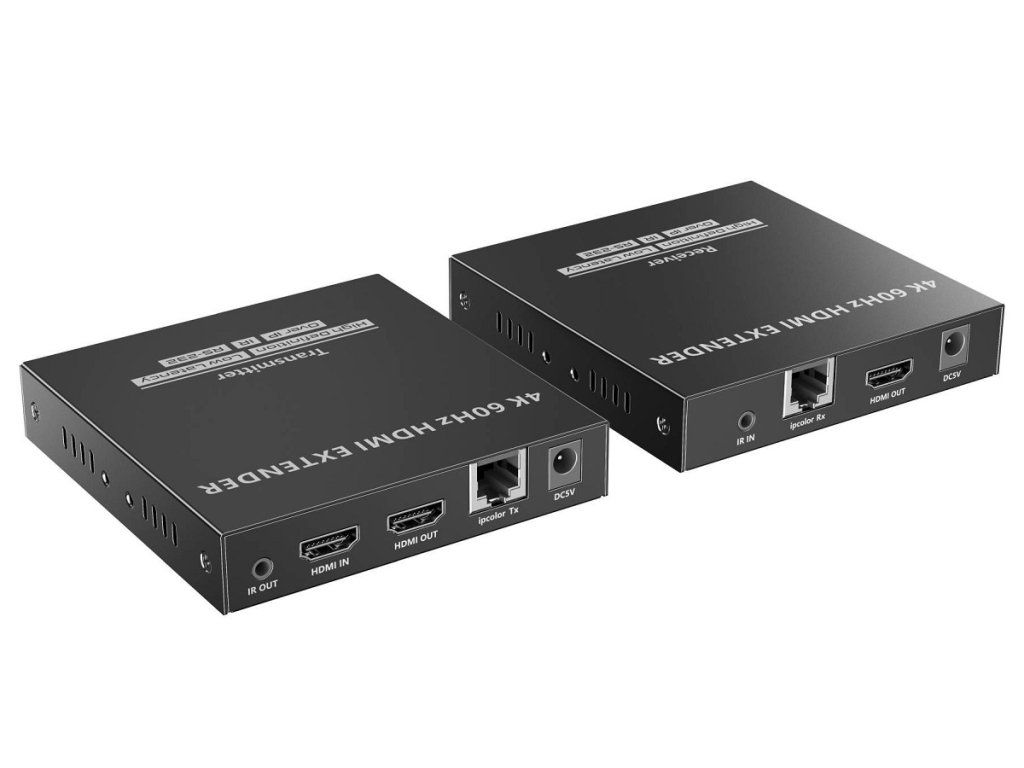

PremiumCord 4K@60Hz HDMI uncompressed extender to 120m over LAN, over IP

Product detailed description

PremiumCord 4K@60Hz 444 HDMI uncompressed extender to 120m over LAN, over IP The device allows you to transmit uncompressed 4K@60Hz HDMI signals up to 120m and IR signals simultaneously over a single network cable or LAN. The signal can be distributed via LAN, preferably Gigabit network and Gigabit switches as shown in the wiring diagram. - The extender allows the use of one transmitter and multiple receivers interconnected by LAN, switches and routers (tested on 4K@60hz and FULL HD 1080p and 60m cable + swich + 2 receivers) this computer network must be dedicated to HDMI extenders only, it must not share other computers, printers and other network devices. - The extender can connect up to 253 receivers and connect via switches to a single transmitter. - Supports 4K@60Hz 444 or FULL HD 1080p up to 120m using a quality Cat6/6A/7 network - Connection method: one to one, one to multiple receivers - Supports HDMI 2.0 - Supports HDCP 2.2 and HDCP 1.4 - For resolutions: 720p@50/60Hz, 1920x1200@60Hz, 2560x1440@60Hz, 2560x1600@60Hz, 1080p@50/60Hz, 3840x2160@24/30/50/60Hz - Supports video format:24bit/Deep color 30bit/deep color 36bit - Supports Audio:DTS-Audio/Dolby Digital 5.1/LPCM2.0 - Bit rate:18Gbps - Extender transmits HDMI digital video, audio. - LAN cable TIA/EIA568 B - We recommend a high quality Cat6,Cat6A,Cat7 LAN cable for connection - The transmitter and receiver are powered by the included 230V/5V 1A power adapters - The transmitter and receiver has a handy RESET button - The transmitter and receiver have signal LEDs to indicate when the units have connected and signal transmission is in progress. - Recommended HDMI input and output cables shorter than 5m - IR frequency: 20kHz - 60kHz - RS232 baud rate: default:115200, supports: 2400,4800,9600,19200,38400,57600,115200 - Power consumption less than 4W - Transmitter and receiver dimensions:length:106mm, width:103mm, height:20.6mm - Weight: TX:254g , RX:242g - Operating temperature: -20°C to 60°C - Humidity: 0-90% RH (non-condensing) - Durable metal housing - Color black Package: 1x Transmitter Unit 1x Receiver unit 2x IR cables 1x manual 2x power adapter 5V/1A
