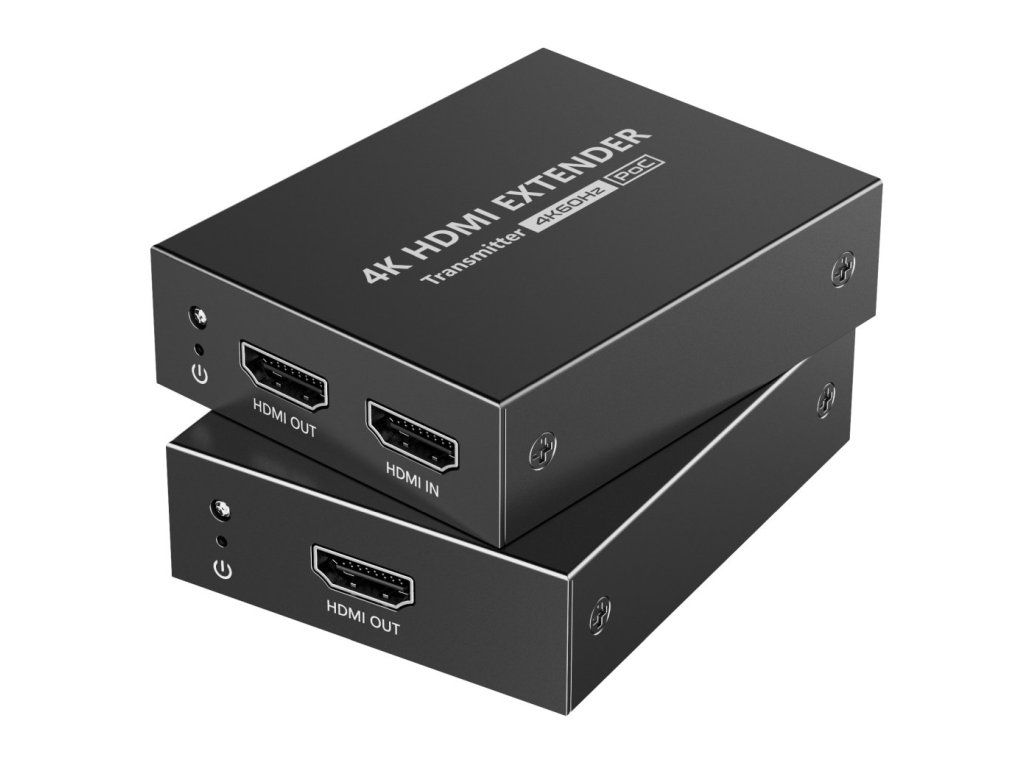

PremiumCord 4K@60Hz HDMI2.0 extender to 50m over one Cat6/6a HDR10 cable

Product detailed description

PremiumCord 4K@60Hz HDMI2.0 extender to 50m over one Cat6/6a HDR10 cable The device allows you to transmit 4Kx2K@60Hz resolution up to 50m or 4Kx2K@30Hz and FULL HD signal up to 70m over one high quality network cable. - Input: 1x HDMI input + IR - Outputs: local HDMI output + remote HDMI output + IR - For resolutions: 480i,480p,720i,720p,1080i,1080p, 4Kx2K@24/25/30/60/Hz - Maximum distance 70m for 4Kx2K@30Hz , Full HD 1080p - Maximum distance 50m for 4Kx2K@60Hz resolution - 18 Gbps bit rate including HDCP 2.2 support - HDMI 2.0 Deep color, 4K, HDR, YUV4:4:4 - Supports HDR10 - Compatible with HDMI 2.0 - Supports pass-through EDID and auto downscaling - Supports single-source power cable - Supports 4K Ultra HD (60Hz) maximum resolution, 4096 x 2160p - Supports HDCP 2.2 and HDCP1.4 - Usable image resolution: 4Kx2K (60Hz), 4K2K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i - Všechna podporovatelné rozlišení: 480i@60Hz,480p@60Hz,576i@50Hz,576p@50Hz,720p@50/60Hz,1080i@50/60Hz,1080p@50/60Hz,3840x2160@24/25/30/50/60Hz, 3440x1440,2560x1440,2560x1080,2048x1080,1920x1440,1920x1080,1280x960,1280x800,1280x768,1680x1050,1360x768,1366x768,1600x900,1024x768,800x600 - LED indicating extender status and communication - Color depth: 12 bit - Supports LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby Atmos audio signal - Extender transmits HDMI digital video, audio and IR remote control signals - Uses high quality 1x Cat6,Cat6a,Cat7 LAN cable with AWG23 copper conductors for connection ( for a distance of 50m use copper cable with AWG23 conductors , for example UTP Cat6 cable in meter code:sutpd6c3 ) - The extender must not be connected to an active computer network,switch, router or other active network device. The extender's transmitter and receiver must be directly connected by LAN cable, preferably without interruption. - HDMI input and output cables up to 5m long with AWG24 copper conductors - Transmitter and receiver are powered from the included 230V/5V/2A power adapter, power is supplied via LAN cable from a single source - The transmitter and receiver have a handy RESET button - The transmitter and receiver have signal LEDs to indicate when the units have connected and signal transmission is in progress. - ESD protection: 1a Contact discharge level 2 (±4KV), 1b Air discharge level 3 (±8KV) Implementation of the standard: IEC61000-4-2 - High quality black aluminum housing - Dimensions: 75(L) x 60(W) x 21(H)mm - Weight transmitter 130g, receiver 130g - Operating temperature: -20 to 60°C - Humidity: 0~90%RH Package: 1x Transmitter unit 1x Receiver unit 2x IR cables 1x manual 1x power adapter 230V/5V/2A
