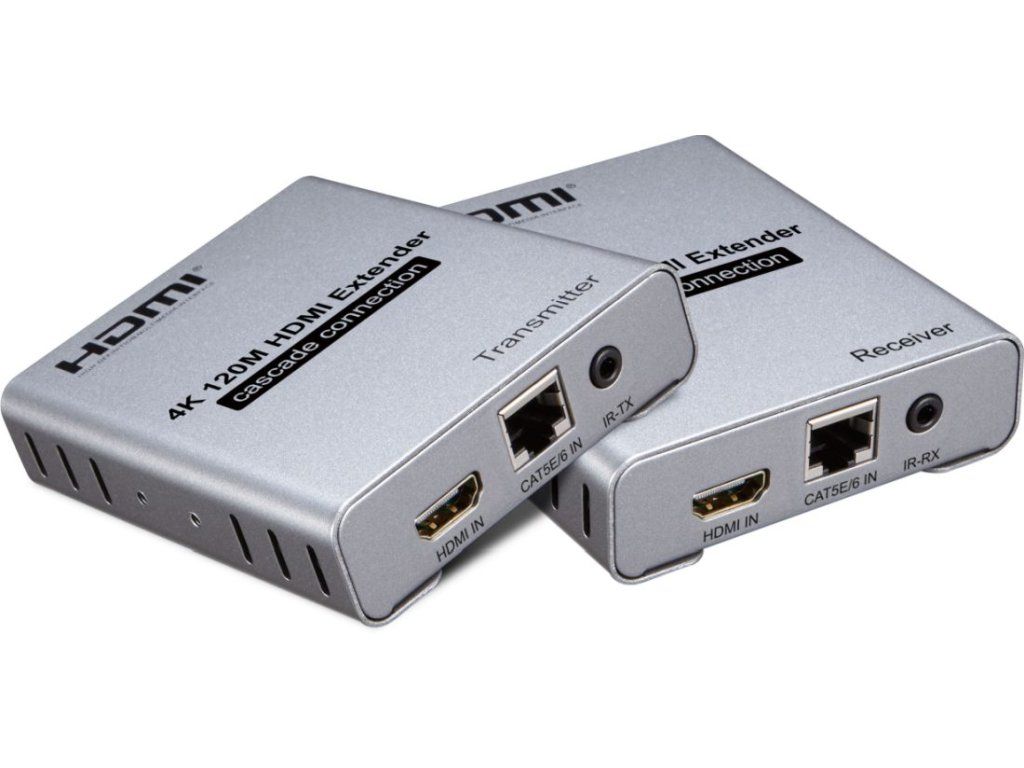

PremiumCord 4K HDMI cascading extender to 120m over Cat5/6, no delay

Product detailed description

PremiumCord 4K HDMI cascading extender to 120m over Cat5/6, no delay The extender allows you to transmit HDMI 4K or FULL HD signals up to 120m over a single network cable without delay. Allows you to cascade receivers in series to create a chain of identical monitors. - Supports 4K@30Hz and FULL HD 1080p up to 120m using a quality CAT6 UTP cable with AWG23 copper conductors (we recommend our cable code: sutpd6c3 ) - For video resolution:4K/1080p/720p/576p/576i/480p/480i - Multiple receivers can be connected in series in a cascade see attached picture. The modules are plugged in series and connected with a UTP cable. All modules have an HDMI output connector and display the identical picture that the transmitter sends. - Each transmitter and receiver also has an input signal switch (HDMI or RJ45 input signal), this button can be used to select the input signal from the HDMI input connector or the RJ45 connector - Basic extender settings: set the Transmitter as HDMI input (HDMI LED is lit), set the Receiver as RJ45 input (RJ45 LED is lit), - Bitrate: 10.2Gbps - Compatible with HDMI 1.3 - Supports HDCP1.4 - Maximum range: 120m when using CAT6 cable AWG23 - Input HDMI cable max. 15m when using HDMI cable with AWG26 conductors - HDMI output cable max. 15m when using HDMI cable with AWG26 conductors - We recommend a high quality Cat5e,Cat6,Cat7 UTP cable with copper conductors, preferably AWG23, does not need to be shielded - Extender transmits IR control signals ( 20-60kHz ), IR receiver and IR transmitter are included, can be used when connecting one transmitter and one receiver. - The transmitter and receiver are powered from the included 230V/5V 1A power adapters - Maximum power consumption of the transmitter:2W - Maximum power consumption of the receiver: 2W - Transmitter dimensions:length:94mm, width:84mm, height:24mm - Receiver dimensions:length:94mm, width:84mm, height:24mm - Weight:223g + 223g - Working temperature: 0-55°C Package: 1x Transmitter Unit 1x Receiver unit 1x Manual 1x IR receiver unit 1x IR transmitter 2x power adapter 5V/1A
