PremiumCord 4K HDMI extender to 100m via Cat5e/Cat6, Irda transmission and Audio outputs

Product detailed description

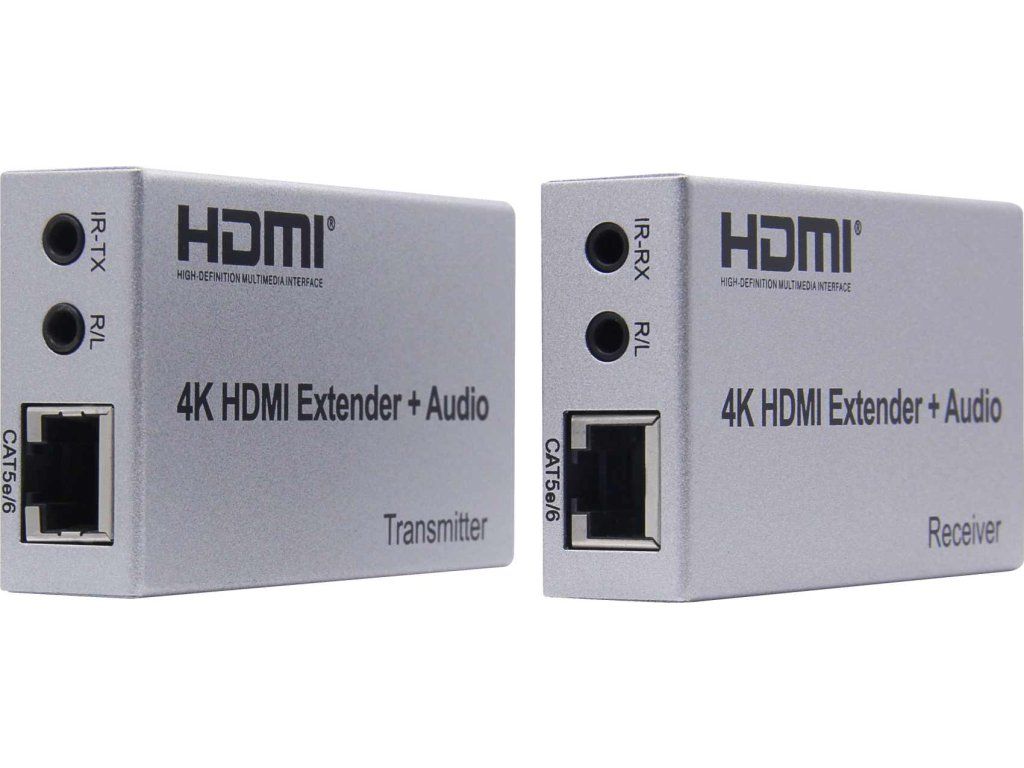

PremiumCord 4K HDMI extender to 100m via Cat5e/Cat6, Irda transmission and Audio outputs The device allows you to transmit HDMI signals in 4K@30Hz or FULL HD 1080p resolution up to 100m over a single network cable.It also transmits IR signals for remote control. The transmitter and receiver has an audio output for an audio amplifier - Supports 4K@30Hz , FULL HD 1080p resolution up to 100m - HDMI extender consists of TX transmitter and RX receiver - Input and output connectors of transmitter and receiver: HDMI female - Transmitter and receiver has Audio output for audio amplifier - Transmitter has an input for Irda receiver, Receiver has an output for Irda transmitter ( both Irda transmit and receive cables are included in the set) - Connection connectors for transmitter and receiver: RJ45 female - High quality 1x LAN cable Cat5e,Cat6 or Cat7 is used to connect TX and RX ( for a distance of 60m use copper cable with AWG23 conductors , for example UTP Cat6 cable in meter code:sutpd6c3 ) - 3x3.4 Gbps transmission speed including HDCP support - Bandwidth: 340MHz - For resolution: 480i,480p,576i,576p,720p,1080i, 1080p, 4K@30Hz - Extender transmits HDMI digital video and audio - The extender must not be plugged into an active computer network,switch, router or other active network device. The extender's transmitter and receiver must be directly connected by LAN cable, preferably without interruption. - The HDMI input and output cables can be up to 10m long with an AWG of AWG26 (AWG26 applies to 7m and 10m cable lengths) - The transmitter and receiver are powered by the included 230V/5V, 1A power adapters - The units include a handy EDID button, a longer hold of the EDID button will switch the resolution from FULL HD 1080p to 4K@30Hz and vice versa - The transmitter and receiver have signal LEDs to indicate when the units have connected and signal transmission is in progress. - The LED glows blue to indicate power status, when in function this LED flashes red to indicate an active HDMI signal. - Operating temperature: -15 to +55°C - Transmitter and receiver dimensions:82mm x 45mm x 18mm - Transmitter weight:100g - Receiver weight: 120g Package includes: 1x Transmitter unit 1x Receiver unit 2x Irda cables 1x manual 2x power adapter For interconnection, use uninterrupted Cat5e/Cat6 straight cable with strong copper conductors of min. cross section AWG24. Extenders must not be connected to an Ethernet computer network.
