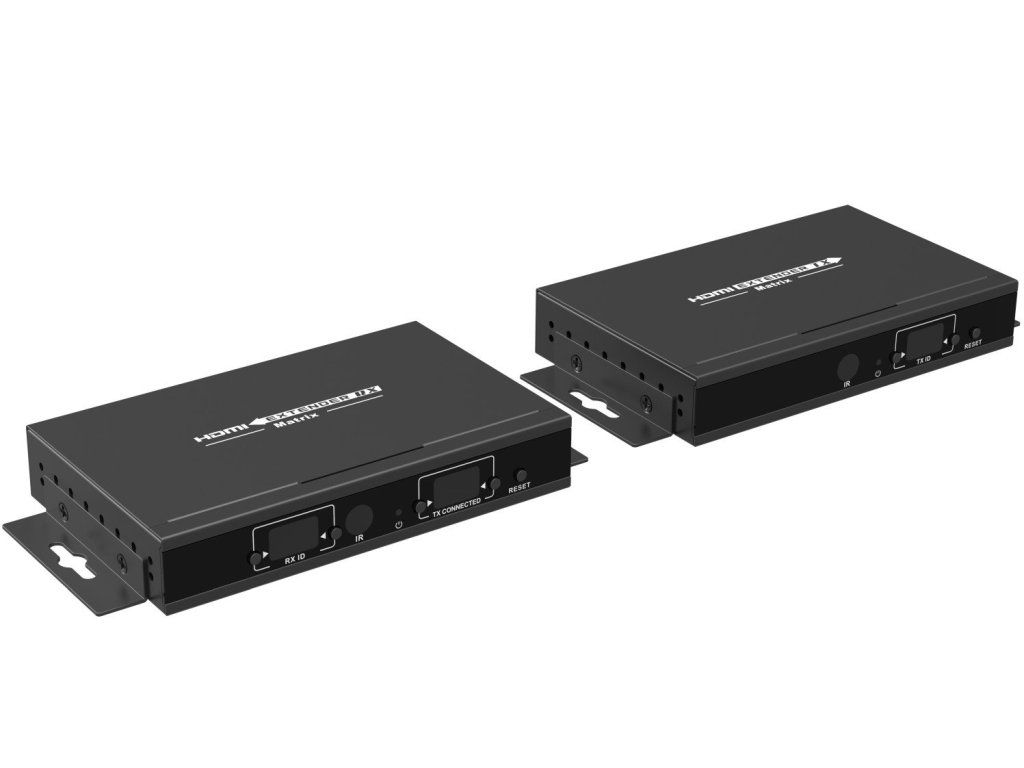

PremiumCord 4K HDMI extender to 120m over LAN, over IP, HDBitT

Product detailed description

PremiumCord HDMI 1080p matrix over IP extender to 120m over LAN Matrix extender allows you to connect multiple transmitters and many receivers, interconnected by one network. The receivers can be controlled by buttons and remote control to receive the signal from the desired transmitter. The device can transmit HDMI FULL HD signal up to 120m over a single network cable or LAN. - The extender allows the use of one transmitter and multiple receivers interconnected via LAN, switches and routers (tested FULL HD 1080p and 100m cable + swich + 2 receivers) this computer network must be dedicated to HDMI extenders only, it must not share other computers, printers and other network devices. - Supports up to FULL HD 1080p resolution up to 120m - Allows up to 100 TX input transmitters and unlimited number of receivers. - Can be controlled by remote control, device button, using a computer or APP. - The APP control is via wifi network using a smartphone/tablet, for this you need to connect the controller: HDMC001 to the network. This is only needed if you want to use APP Control. - Supports HDCP 1.2 - For resolutions:480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz - Supports Video Format:24bit/Deep color 30bit/ Deep color 36bit - Audio format: PCM - Supports Audio:DTS-HD/Dolby-true HD/LPCM7.1/DTS/Dolby-AC3/DSD - Bit rate:10.2Gbps - Extender transmits HDMI digital video, audio. - LAN cable TIA/EIA568 B, we recommend a high quality LAN cable Cat5e,Cat6,Cat7 with copper conductors for connection (we recommend our cable code: sutpd6c3 ) - IP-BASED EXPANSION - Supports one-to-one, one-to-many or many-to-many HDMI signal transmission over your IP network using HDbitT transmission technology up to 120m at 1080p @ 60Hz resolution.For best performance and reliability, a dedicated IGMP gigabit switch is recommended - SCALABLE MATRIX - Allows up to 256 TX/RX combined units (limited to 100 TX) over an IP network. Select and transmit any combination of transmitter and receiver topologies simultaneously to create an extensive matrix. - 4 control methods - IR remote control, push buttons, PC control via software and wireless control application (HDbitT Matrix controller required) to switch between different sources from the receiver side as if changing TV channels. An HDbitT Matrix controller is required to control the APP function. - The wireless control application requires a wireless access point installed on the LAN. - The transmitter and receiver are powered by the included 230V/5V 1A power adapters - Maximum power consumption 4W + 4W - The transmitter and receiver have signal LEDs to indicate when the units have connected and signal transmission is in progress. - Transmitter dimensions:length:134mm, width:84mm, height:23mm - Receiver dimensions:length:134mm, width:84mm, height:23mm - Weight:260g + 250g - Power supply from included adapters: 5V 1A Included: 1x Transmitter unit 1x Receiver unit 2x IR cables 1x manual 2x power adapters 5V/1A
