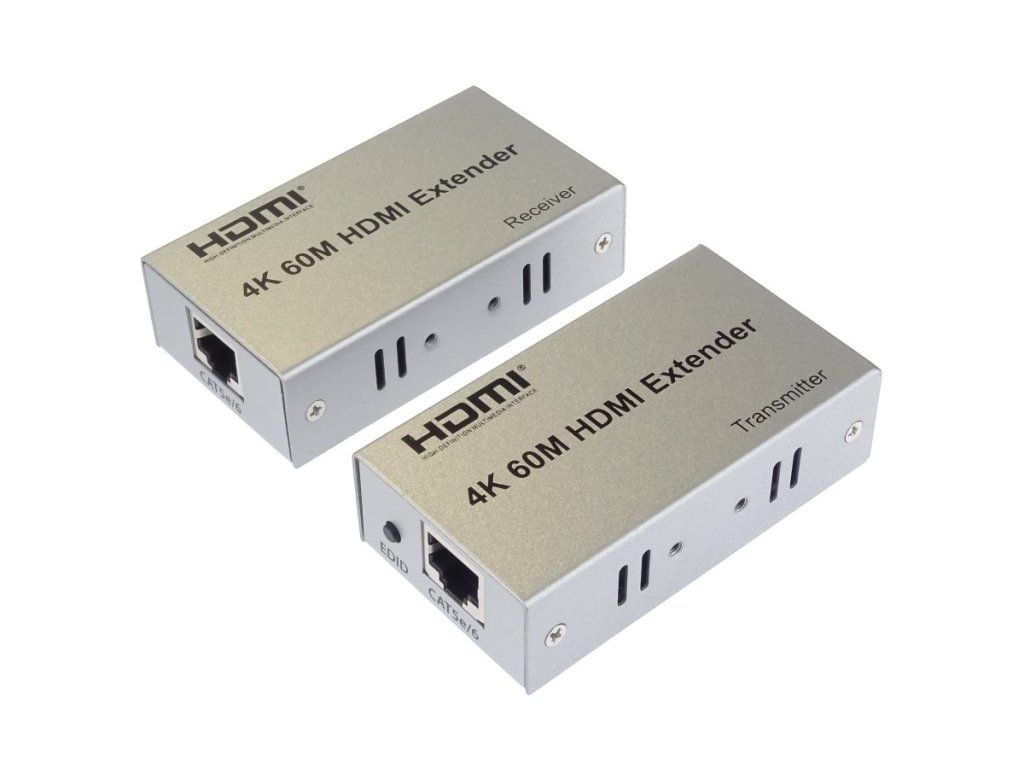

PremiumCord 4K HDMI extender to 60m via one Cat5e/Cat6 cable

Product detailed description

PremiumCord 4K HDMI extender to 60m via one Cat5e/Cat6 cable The device allows you to transmit a 4K@30Hz or FULL HD 1080p HDMI signal up to 60m over a single network cable. - Supports 4K@30Hz , FULL HD 1080p resolution up to 60m - HDMI extender consists of TX transmitter and RX receiver - Input and output connectors of transmitter and receiver: HDMI female - Transmitter and receiver connection connectors: RJ45 female - High quality 1x LAN cable Cat5e,Cat6 or Cat7 is used to connect TX and RX ( for a distance of 60m use copper cable with AWG23 conductors , for example UTP Cat6 cable in meter code:sutpd6c3 ) - 3x3.4 Gbps transmission speed including HDCP support - Bandwidth: 340MHz - For resolution: 480i,480p,576i,576p,720p,1080i, 1080p, 4K@30Hz - Supports video color formats: deep color 24bit,30bit,36bit,48bit - Extender transmits HDMI digital video and audio - The extender must not be plugged into an active computer network, switch, router or other active network device. The extender's transmitter and receiver must be directly connected by LAN cable, preferably without interruption. - The HDMI input and output cables can be up to 10m long with an AWG of AWG26 (AWG26 applies to 7m and 10m cable lengths) - The transmitter and receiver are powered by the included 230V/5V, 1A power adapters - The units include a handy EDID button, a longer hold of the EDID button will switch the resolution from FULL HD 1080p to 4K@30Hz and vice versa - The transmitter and receiver have signal LEDs to indicate when the units have connected and signal transmission is in progress. - The LED glows blue to indicate power status, when in function this LED flashes red to indicate an active HDMI signal. - Operating temperature: -15 to +55°C - Transmitter and receiver dimensions:81mm x 47mm x 22mm - Weight of transmitter:102g - Weight of receiver: 103g Package includes: 1x Transmitter unit 1x Receiver unit 1x Manual 2x power adapter For interconnection, use uninterrupted Cat5e/Cat6 straight cable with strong copper conductors of min. cross section AWG24. Extenders must not be connected to an Ethernet computer network.
