PremiumCord 4K HDMI standalone receiver to extender

Product detailed description

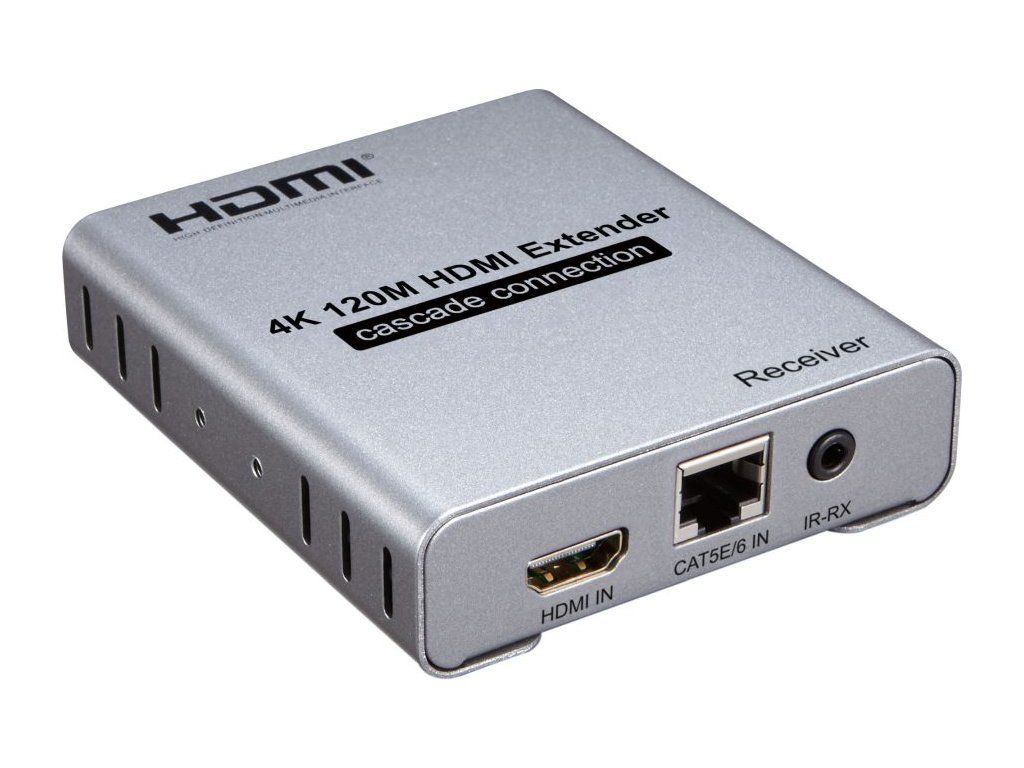

PremiumCord 4K HDMI standalone receiver to extender code: khext120-5 Separate receiver for connecting a 4K HDMI extender code: khext120-5 to a cascade, where one transmitter is enough and allows the connection of multiple receivers (receiver) The extender allows a single network cable to transmit HDMI 4K or FULL HD signal up to 120m without delay. Allows you to cascade receivers in series to create a chain of identical monitors. - Supports 4K@30Hz and FULL HD 1080p up to 120m using a quality CAT6 UTP cable with AWG23 copper conductors (we recommend our cable code: sutpd6c3 ) - For video resolution:4K/1080p/720p/576p/576i/480p/480i - Multiple receivers can be connected in series in a cascade see attached picture. The modules are plugged in series and connected with a UTP cable. All modules have an HDMI output connector and display the identical picture that the transmitter sends. - Each transmitter and receiver also has an input signal switch (HDMI or RJ45 input signal), this button can be used to select the input signal from the HDMI input connector or the RJ45 connector - Transmission bitrate: 10.2Gbps - Compatible with HDMI 1.3 - Supports HDCP1.4 - Maximum range: 120m when using CAT6 cable AWG23 - Input HDMI cable max. 15m when using HDMI cable with AWG26 conductors - HDMI output cable max. 15m when using HDMI cable with AWG26 conductors - We recommend a high quality Cat5e,Cat6,Cat7 UTP cable with copper conductors, preferably AWG23, does not need to be shielded - Extender transmits IR control signals ( 20-60kHz ), IR receiver and IR transmitter are included, can be used when connecting one transmitter and one receiver. - The transmitter and receiver are powered from the included 230V/5V 1A power adapters - Maximum power consumption of the receiver: 2W - Receiver dimensions:length:94mm, width:84mm, height:24mm - Weight: 223g - Operating temperature: 0-55°C Package: 1x Receiver unit 1x manual 1x IR receiver unit 1x power adapter 5V/1A
