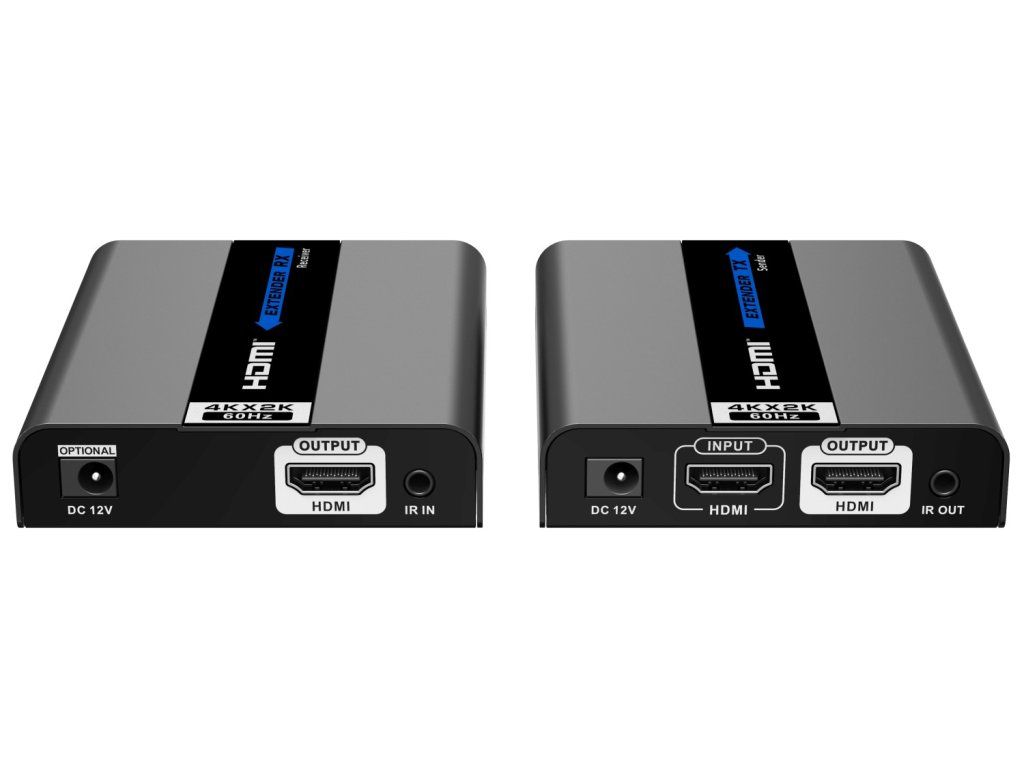

PremiumCord 4Kx2K@60Hz HDMI2.0 extender to 50m over one Cat6/6a/7 cable with local HDMI output

Product detailed description

PremiumCord 4Kx2K@60Hz HDMI2.0 extender to 50m over one Cat6/6a/7 cable with local HDMI output The device allows you to transmit 4Kx2K@60Hz to 30m or 4Kx2K@30Hz and FULL HD signal up to 50m over one high quality network cable. The transmitter also has a local HDMI output. The extender allows only one power adapter to be plugged into the transmitter. The receiver is powered by cable from the transmitter. - Input: 1x HDMI input + IR - Outputs: 1x local HDMI output and 1x remote HDMI output + IR - For resolutions: 480i,480p,720i,720p,1080i,1080p, 4Kx2K@24/25/30/60/Hz - 4Kx2K@30Hz , Full HD 1080p max distance 50m - 4Kx2K@60Hz HDMI maximum distance 30m - 18 Gbps bit rate including HDCP 2.2 support - 4K@60Hz ULTRA HD, YUV 4:4:4 - Supports HDR - Compatible with HDMI 2.0 - Supports maximum resolution of 4K Ultra HD (60Hz), 4096 x 2160p - Supports HDCP 2.2 - Usable image resolution: 4K2K (60Hz), 4K2K (30Hz), 1080p, 1080i, 720p, 576p, 576i, 480p, 480i - LED indicating extender status and communication - Color depth: 12 bit - Supports compressed audio signals DTS digital, Dolby digital (including DTS-HD and Dolby True HD) - Supports uncompressed LPCM audio signal - High quality aluminum housing - Extender transmits HDMI digital video, audio and IR control signals - Uses high quality 1x Cat6,Cat6a,Cat7 LAN cable with AWG23 copper conductors for connection ( For a distance of 50m use copper cable with AWG23 conductors , for example UTP Cat6 cable in meter code:sutpd6c3 ) - The extender must not be connected to an active computer network,switch, router or other active network device. The extender's transmitter and receiver must be directly connected by LAN cable, preferably without interruption. - HDMI input and output cables up to 8m long with AWG24 copper conductors - The transmitter is powered by the included power adapter. The receiver is powered from the transmitter via RJ45 cable. - The transmitter and receiver have a handy RESET button - The transmitter and receiver have signal LEDs to indicate when the units have connected and signal transmission is in progress. - Nice black metal case - Dimensions: 101(L) x 81(W) x 21(H)mm - Weight transmitter 190g, receiver 190g - Operating temperature: 0-50°C Package: 1x Transmitter unit 1x Receiver unit 2x IR cables 1x manual 1x power adapter
