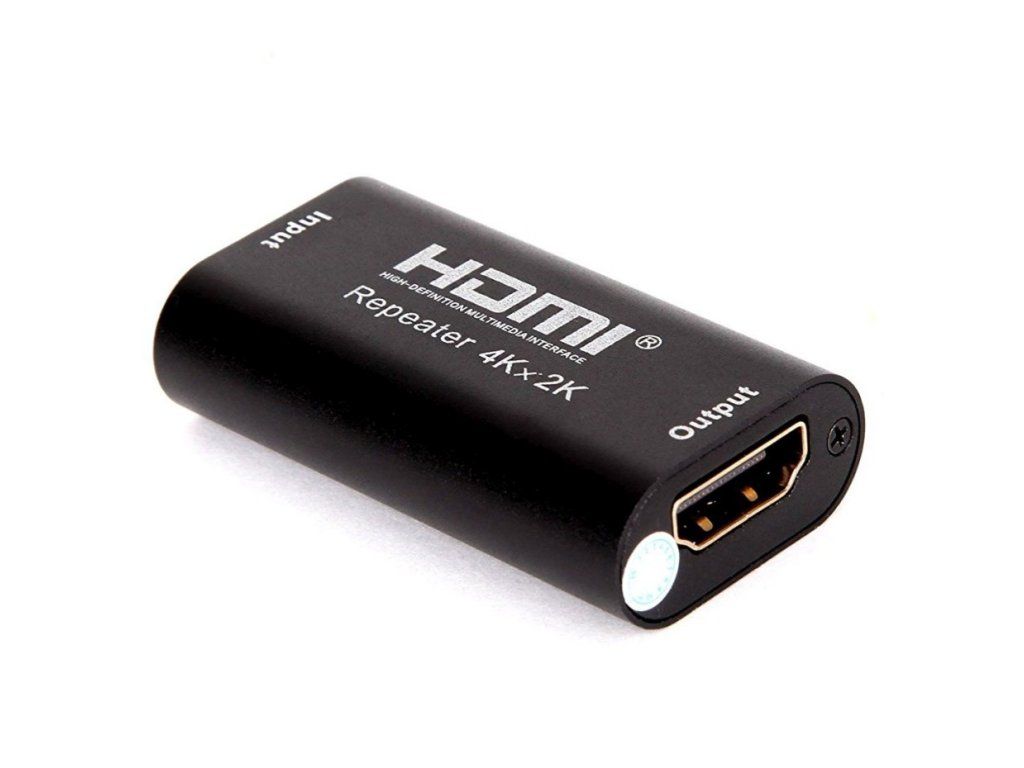

PremiumCord 4Kx2K HDMI repeater up to 40m

Product detailed description

HDMI repeater, 4K HDMI signal repeater up to 40m - It is usually connected in the middle of the route between two cables, for example between two 20m cables, see wiring example below, therefore the repeater connectors are female-female ( recommended design of 20m HDMI cable, 24AWG copper wire ) - The repeater will amplify and restore the weak signal and allow the monitor to be connected over a long distance. - Supports HDMI 1.4b format - Supports 3D,4kx2k@30Hz - HDCP 1.4 compatible - Operating frequency up to 340MHz - HDMI data transfer: 3.4G bps(Single link) - HD Resolution:480i@60Hz, 576i@50Hz, 480p@60Hz, 1080P@60Hz, 1080i@50Hz, 1080P@30Hz, 1080P@25Hz, 1080P@24Hz, 2160P@30Hz, 3840x2160/30Hz - Digital signal processing for truer colour reproduction - The repeater can be used even if the signal is weak, the picture drops out, grains or the picture is not displayed at all. When the repeater is connected between cables, the image appears without errors. - Compatible with PC resolution: VGA,SVGA,XGA,SXGA,UXGA - Does not require power supply, it is powered with HDMI bus - Requires no software - Dimensions: 28mm x 13mm x 51mm Important to have the correct cable type, copper core thickness !!!! recommended 20m HDMI cable, 24AWG copper wire
