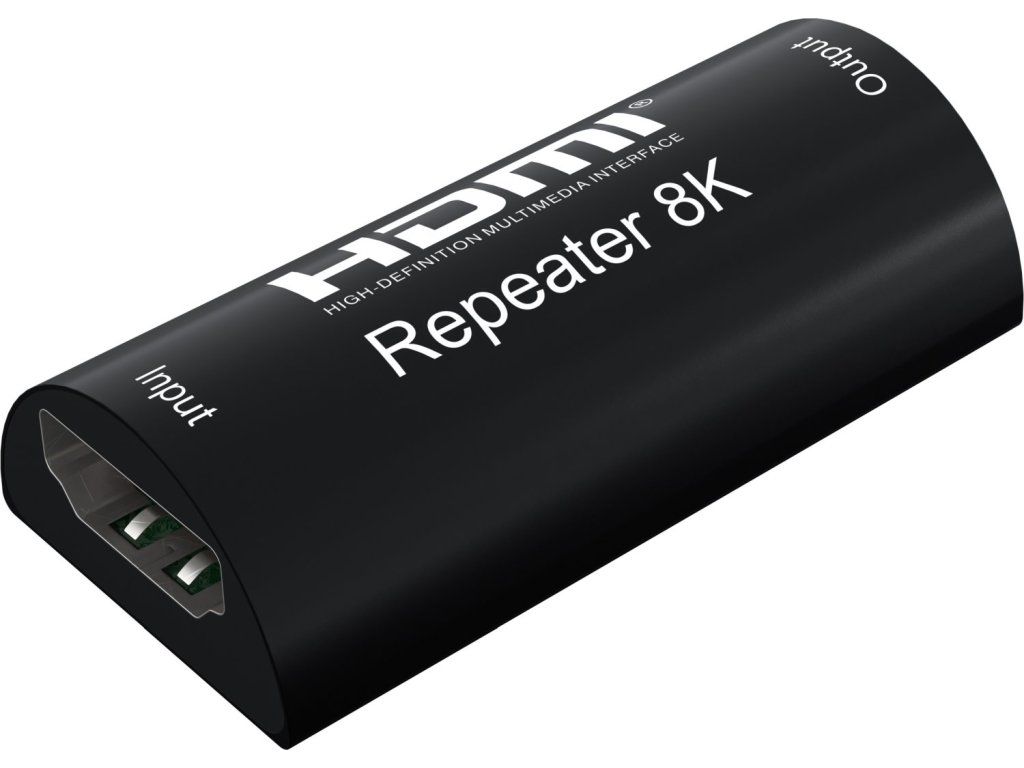

PremiumCord 8K HDMI repeater up to 25m, resolution 8K@60Hz, 4K@120Hz
Code: ABCT_A500006126Product detailed description
PremiumCord 8K HDMI repeater up to 25m, resolution 8K@60Hz, 4K@120Hz - Supports highest resolution 8K@60Hz (7680x4320/60Hz ), 4K@120Hz ( 3840x2160/120Hz ), FULL HD 1080p - Repeater will amplify and restore weak signal and allow long distance monitor connection. - Supports 3D video format and CEC - Supports 8/10/12 bit deep color - Compatible with HDCP 1.4/2.2 - Support audio format: DTS-HD/Dolby-trueHD/DTS/Dolby-AC3/DSD - Video format support: 8/10/12bit Deep color - Maximum bit rate: 4 x 12 Gbps - Input cable distance: Standard HDMI cable AWG24 length 15m - Output cable distance: Standard HDMI AWG24 cable length 10m - Supports lower HD video resolution:480i@60Hz, 576i@50Hz, 480p@60Hz, 1080P@60Hz, 1080i@50Hz, 1080P@30Hz, 1080P@25Hz, 1080P@24Hz, 2160P@60Hz, 3840*2160/60Hz - The repeater can also be used when the signal is weak, the picture drops out, grains or the picture is not displayed at all. When the repeater is connected between cables, the picture appears without errors. - Compatible with PC resolution: VGA,SVGA,XGA,SXGA,UXGA - Gold plated connectors - Durable metal housing - Extender is powered by HDMI bus - Operating temperature range: (-15 to +45..) - Operating humidity range: 5 to 90% RH (non-condensing) - Dimensions (L x W x H) 52x25x14 (mm) - Weight: 15g It is important to have the correct HDMI cable type, with sufficient thickness of copper conductors !!!! Recommended HDMI 2.1 cable design: 24AWG copper wire The repeater is plugged in the middle between two cables, preferably of the same length. HDMI cables of 10m to 15m length must have 24AWG copper conductors.Additional parameters
| Category: | ABC Tech |
|---|---|
| Weight: | 0.02 kg |
| EAN: | 8592220023096 |
| EAN: | 8592220023096 |
