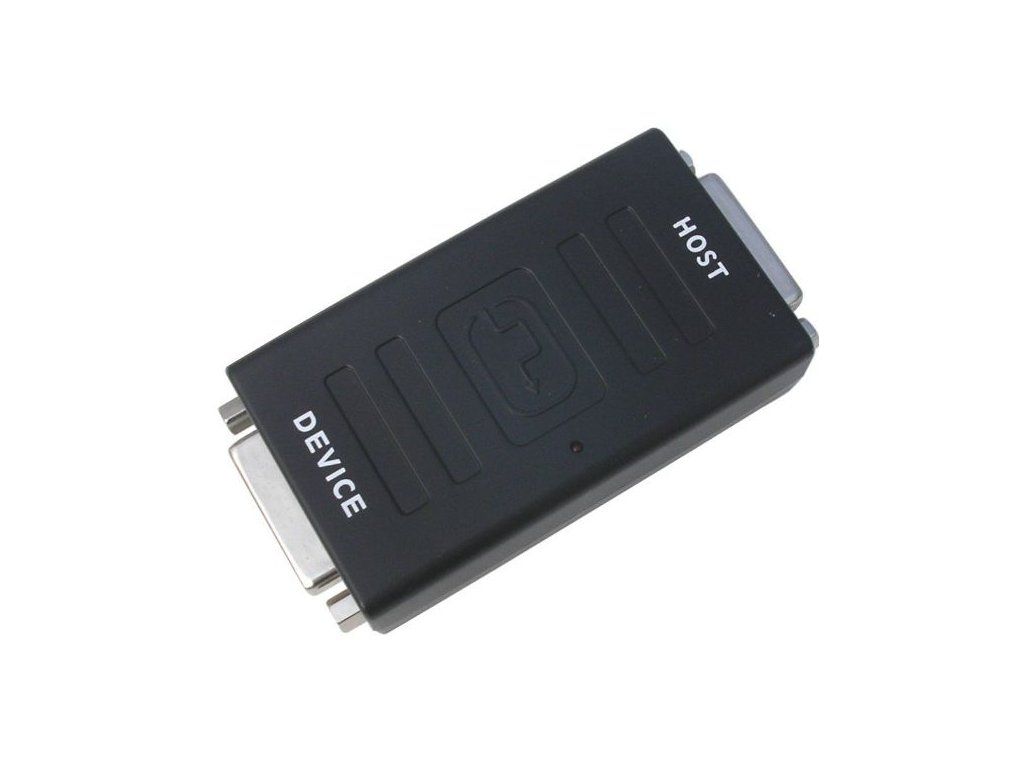

PremiumCord DVI Repeater up to 50m

Product detailed description

DVI repeater for digital signal amplification on cables with DVI connectors. For resolutions up to FullHD 1080P or lower, for amplification up to 50m with 24AWG cable. - dVI signal amplifier - hDCP & DVI-I support - compliant with DVI 1.0 specification - must be wired in sequence: PC---cable---repeater-device -connect in the direction source-HOST, monitor/projector-DEVICE Compatible resolution: 480i,480p,720i,720p,1080i and 1080p Computer resolutions: VGA,SVGA,XGA,SXGA,UXGA Automatically equalize up to 40dB at 825MHZ(1.65Gbps),no system control required. It is important to have the correct cable type, core thickness !!!! Extends by lengths: a. 0 to 50 M DVI-Cable,24AWG STP (Shielded-Twisted Pair) b. 0 to 36 M DVI-Cable,28AWG STP c. 0 to 30 M DVI-Cable,30AWG STP The DVI repeater can ONLY be connected at the end of the cable at the target device. NEVER connect it directly to the signal source (e.g. right behind the computer). - In case of incompatibility and image errors, we recommend using the following power supply to power the DVI repeater: Part No. SYS1449-1505-W2E - The recommended power supply has our Part No. SYS1449-1505-W2E
