PremiumCord HDMI 1-4 splitter+extender over CAT6/6a/7, UHD 4K@30Hz up to 70m

Product detailed description

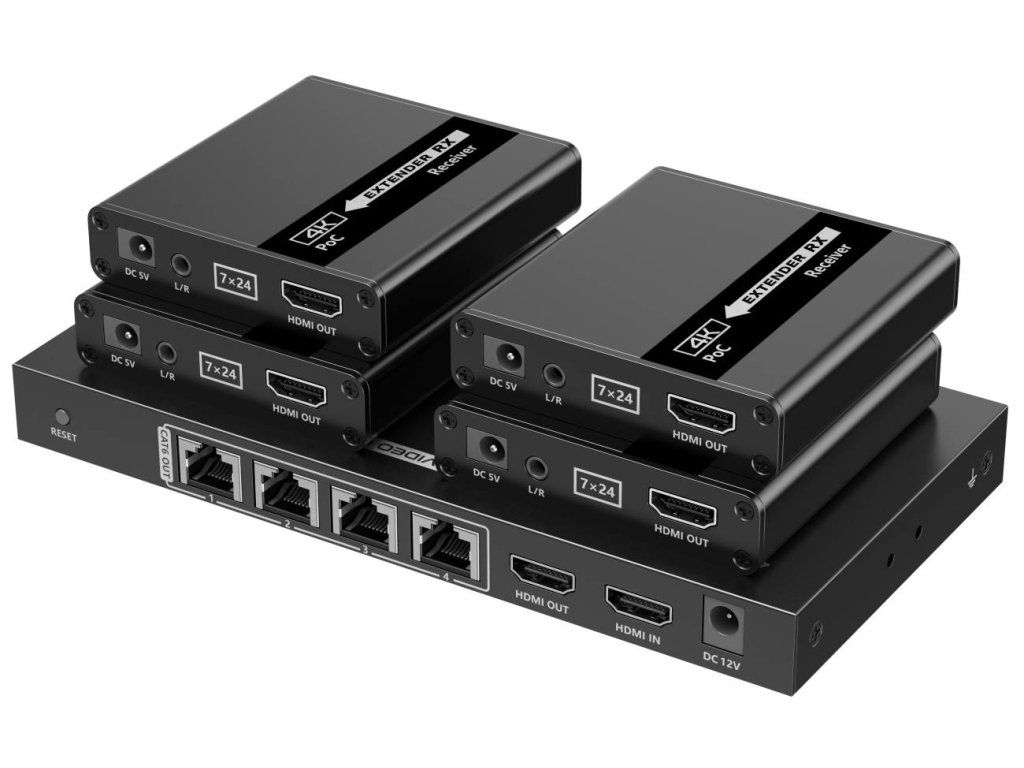

PremiumCord HDMI 1-4 splitter+extender over CAT6/6a/7, UHD 4K@30Hz up to 70m You can connect four HDMI screens to one HDMI signal source over CAT6/6a/7 cable, The extender consists of one transmitter unit with local HDMI output and four receivers that connect via CAT6/6a/7 cable to the transmitter. The splitter+extender allows you to connect 4 HDMI monitors over a distance of 70m and display up to UHD 4K@30Hz - Set includes transmitter + 4 receivers - Input: 1x HDMI input (Type A) - Outputs: 1x local HDMI output on transmitter, 4 x HDMI outputs (Type A) on receivers - Connection of the modules with high quality CAT6/6a/7 cable, max. length 70m, we recommend cable with copper conductors min. AWG23 - Supports 3D and UHD 4K@30Hz and FULL HD 1080p resolution - Supports HDMI2.0, HDCP2.2 compatible - Resolution: 4Kx2K@30Hz, 1080p , 1080i - Bandwidth (MHz): 340 MHz - Max Data Rate (Gbps): 4.95 - Dolby Digital/Plus, Dolby TrueHD, DTS-HD Master Audio+, DVD-Audio, SA-CD other supported standards: 3D, HDCP, CEC, Full HD (1080i/p), HD ready (720i/p) - Transmits both video and audio - Transmits IR signal, supports the use of IR controllers - Supports manual EDID setting - Metal housing for better heat dissipation - Set includes power adapter for 1x 230V/5V (which powers all units) - Dimensions: TX: 190(L) x 95.9(W) x 23.9(H) mm RX: 71.6×66.6×22.6mm - Packed in a paper box Wiring Instructions: 1) Connect the input of the HDMI splitter with the HDMI cable to the signal source, and connect the output to the display unit or monitor. 2) Connect the transmitting unit (transmitter) to the receiving units (receiver) with a high quality CAT6/6a/7 cable, we recommend a cable with copper conductors min. AWG23 ( e.g. code:sutpd6c3 ) 3) Plug the power adapters into a 230V socket and a DC 5V socket. If the image does not appear immediately after plugging in the hub, wait about 30s before the HDMI signal is recognized.
