PremiumCord HDMI 2.0 extender Ultra HD 4kx2k@60Hz to 70m cascaded

Product detailed description

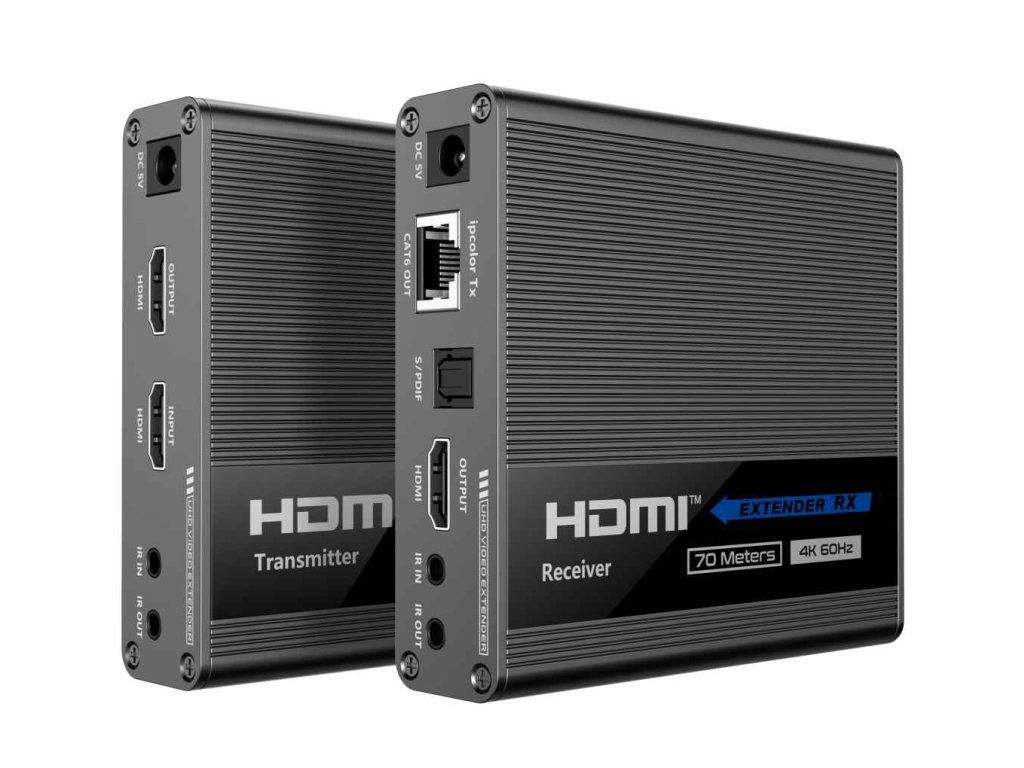

PremiumCord HDMI 2.0 extender Ultra HD 4kx2k@60Hz to 70m cascaded Allows you to distribute a high-definition 4K@60Hz signal without delay up to 70 meters to multiple receivers connected in cascade. This HDMI Extender device allows you to transmit HDMI signal over long distances using CAT6/6A/7 network cable. By using a network cable, up to 70 meters of transmission length can be achieved with 4K@60Hz video resolution. - 4K HDMI extender up to 70 meters - The set includes a transmitter and receiver that connect with a high quality Cat.6/6A/7 cable - Supports Ultra High Definition resolution 4K@60Hz (2160p@60Hz), YUV 4:4:4 - Video Resolution: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 800x600, 1024x768, 1280x768, 1280x800, 1360x768, 1366x768, 1600x900, 1680x1050, 1080i@50/60H, 1080p@50/60Hz, 3840x2160@24/25/30/60Hz, 4096x2160@24/25Hz - Supports HDMI 2.0 and HDCP 2.2 - Supports ARC and two-way IR remote control - Zero latency, no compression loss, no signal delay - HDMI signal can be transmitted up to 70m over Cat.6/6A/7 cable; up to 40m on Cat.5E cable - Connectors on the transmitter: HDMI input, HDMI output for local monitor, RJ45 connector, power connector, 2x IR connector - Connectors on receiver: HDMI output, RJ45 connector, power connector, 2x IR connector, S/PDIF digital audio output - HDMI signal source control: controllable via IR passback from RX to TX - Receiver supports S/PDIF audio output - Supports audio: LPCM/DTS-HD/DTS-Audio/Dolby Digital 5.1CH/Dolby TrueHD 7.1CH Audio, does not support: DOLBY ATMOS and DOLBY VISION - Supports HDR (YUV4:4:4), maximum bit rate 18 Gbps - Supports HDR and EDID pass-back (supports HDR10, but does not support HDR10+ and Dolby Vision) - Transmitter supports HDMI loop-through, transmitter also has HDMI output for local monitor - Supports bi-directional IR passback (20-60 kHz) - Lightning-proof, surge-proof and anti-static protection - Metal housing, stable and durable - Supports HDMI 2.0 - Supports HDCP 2.2 - Size: Width: 106.36 mm, Depth: 98.73 mm, Height: 26.19 mm - Weight TX:210g, RX:210g - Operating Temperature: 0~50°C - Storage temperature: -10~70°C - Relative humidity: 0 ~ 90% (non-condensing) Package contents 1x transmitter 1x receiver 2x 5V/2A power supply 2x IR sensor on cable 8x mounting brackets 18x screw 1x user manual
