PremiumCord HDMI 2.0 extender Ultra HD 4kx2k@60Hz to 70m over Cat6/Cat6A/Cat7

Product detailed description

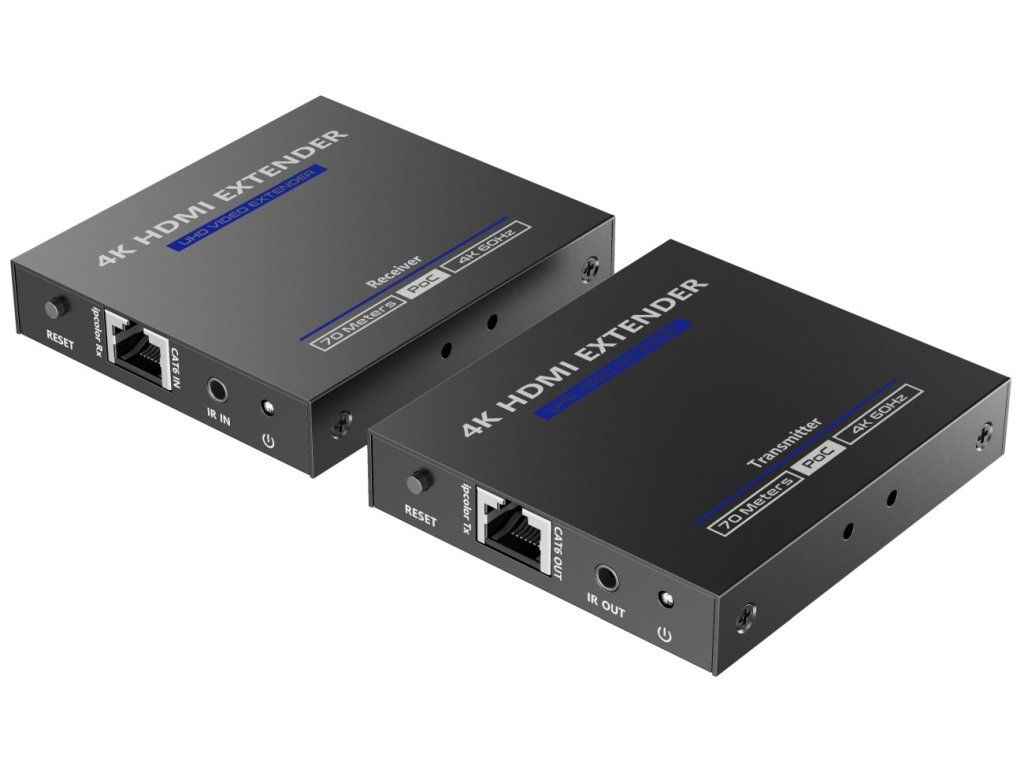

PremiumCord HDMI 2.0 extender Ultra HD 4kx2k@60Hz to 70m via Cat6/Cat6A/Cat7 This HDMI Extender device allows you to transmit HDMI signal over long distances using CAT6/6A/7 network cable. By using a network cable, it is possible to achieve up to 70m transmission length with 4K@60Hz video resolution. - 4K HDMI extender up to 70 meters - Supports HDR10 - High Dynamic Range - The set includes a transmitter and receiver that connect with a high quality Cat.6/6A/7 cable - Supports Ultra High Definition resolution 4K@60Hz (2160p@60Hz), YUV 4:4:4 - Video resolution: 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz, 3840x2160@24/25/30/50/60Hz, 4096x2160@24/25Hz - Video resolution: 1280x960, 1280x800, 1280x768, 1680x1050, 1360x768, 1366x768, 1600x900, 1024x768, 800x600 - Supports HDMI 2.0 and HDCP 2.2 - Supports unidirectional IR remote control - Zero latency, no compression loss, no signal delay - HDMI signal can be transmitted up to 70m over Cat.6/6A/7 cable; up to 40m on Cat.5E cable - Connectors on the transmitter: HDMI input, HDMI output for local monitor, RJ45 connector, power connector, 1x IR connector - Connectors on receiver: HDMI output, RJ45 connector, power connector, 1x IR connector, stereo jack audio output - HDMI signal source control: controllable via IR - Receiver supports audio output on stereo jack connector - Maximum transmission speed 18 Gbps - Transmitter supports HDMI local output on transmitter, transmitter also has HDMI output for local monitor - Supports unidirectional IR passback function (20-60 kHz) - Automatic downscaling - Lightning, surge and anti-static protection - Metal housing, stable and durable - Supports HDMI 2.0 - Supports HDCP 2.2 - Supports PoC function (power supply using only one power supply) - Size: Width: 71.50 mm, Depth: 85 mm, Height: 16.50 mm - Operating Temperature: 0~50°C - Storage temperature: -10~70°C - Relative humidity: 0 ~ 90% (non-condensing) - Set includes mounting curved sheets for wall mounting in rack etc. Contents of the package 1x transmitter 1x receiver 1x 5V / 2A power supply 2x IR sensor on cable 1x User manual 4x Mounting plates
