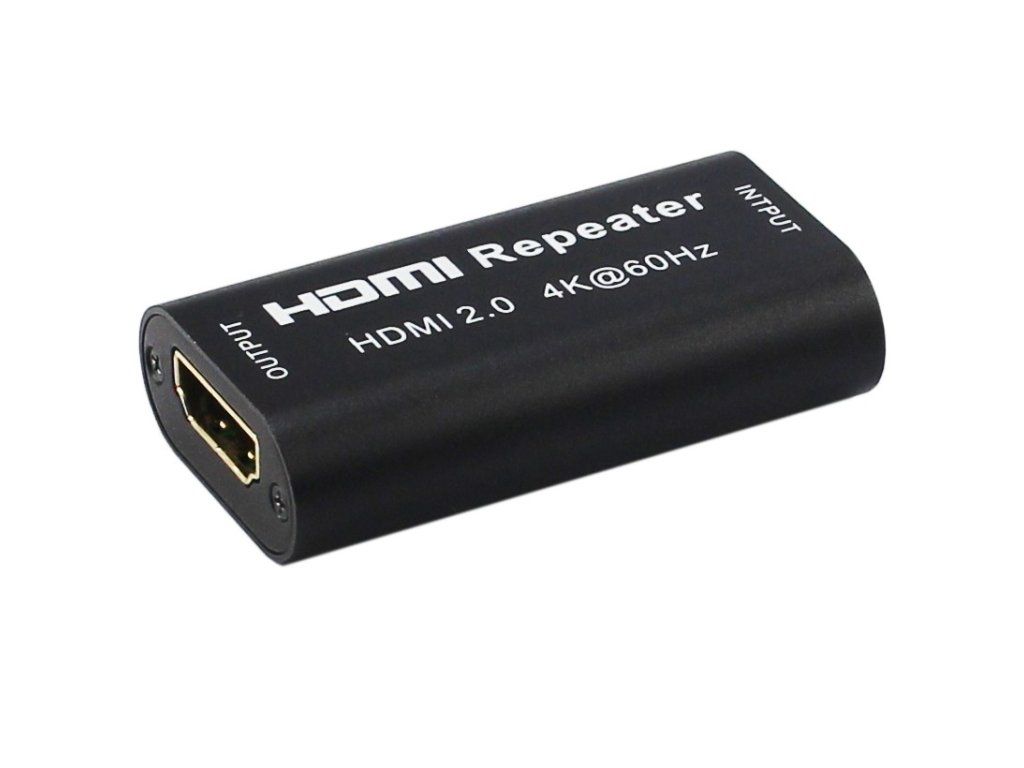

PremiumCord HDMI 2.0 repeater up to 40m, 4Kx2K@60Hz resolution

Product detailed description

PremiumCord HDMI 2.0 repeater up to 40m, 4Kx2K@60Hz resolution - supports HDMI 2.0, i.e. highest resolution 4Kx2K@60Hz ( 3840x2160/60Hz ) - The repeater will amplify and restore weak signal and allow monitor connection over a long distance. - Supports 3D video format and CEC - Supports 8/10/12 bit deep color - Compatible with HDCP 1.4/2.2 - HDMI data transfer rate of 18Gbps - TMDS operating frequency up to 600MHz - HD Resolution:480i@60Hz, 576i@50Hz, 480p@60Hz, 1080P@60Hz, 1080i@50Hz, 1080P@30Hz, 1080P@25Hz, 1080P@24Hz, 2160P@60Hz, 3840*2160/60Hz - The repeater can also be used when the signal is weak, the picture drops out, grains or the picture is not displayed at all. When the repeater is connected between cables, the picture appears without errors. - Compatible with PC resolution: VGA,SVGA,XGA,SXGA,UXGA - Gold plated connectors - Extender is powered from HDMI bus, no external power supply needed - Operating temperature: -15°C to 55°C - Dimensions:80mm x 33mm x 13mm - Weight: 22g - Total cable length 25m, maximum resolution 4Kx2K@60Hz - Total cable length 30m, maximum resolution 4Kx2K@30Hz - Total cable length 40m, maximum resolution 1080P@60Hz It is important to have the correct HDMI cable type, with sufficient thickness of copper conductors !!!! Recommended HDMI 2.0 cable design: 24AWG copper wire The repeater is plugged in the middle between two cables, preferably of the same length. HDMI cables of 10m to 20m length must have 24AWG copper conductors.
