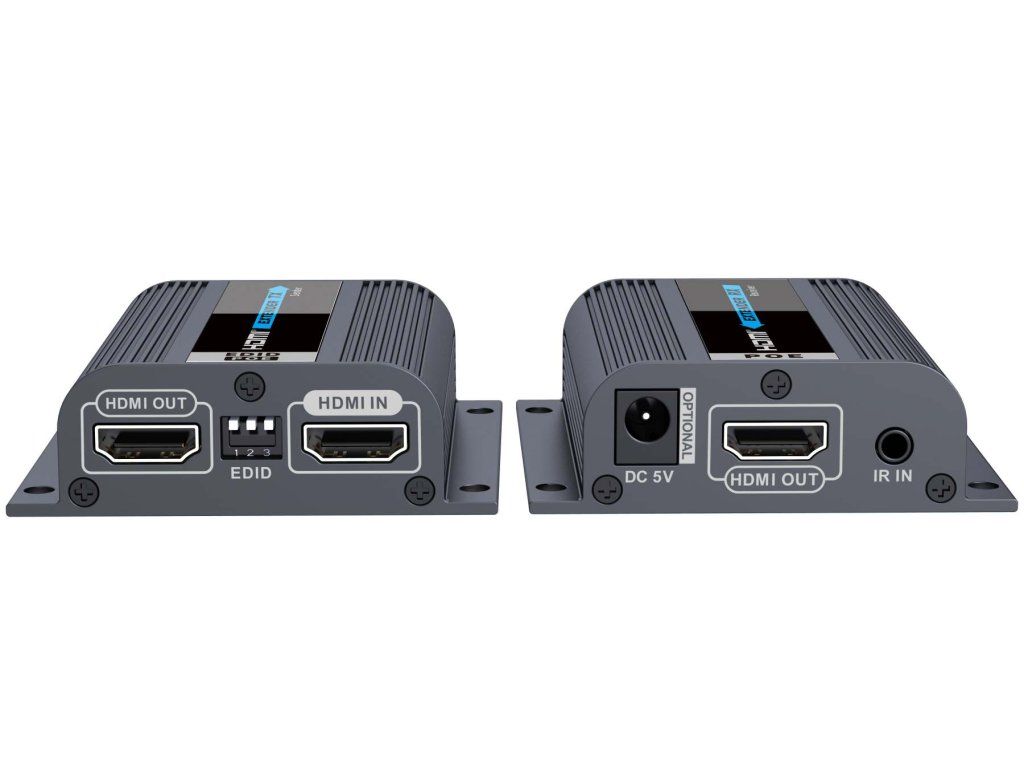

PremiumCord HDMI extender to 50m over one Cat6/6a/7 cable, EDID setup

Product detailed description

PremiumCord HDMI extender to 50m via one Cat6/6a/7 cable, EDID setting, output to local monitor The device allows you to transfer HDMI FULL HD signal up to 50m over one network cable. Includes EDID switches to set the desired HDMI signal format, supports PoE to power the receiver unit (Connect power only to the transmitter unit, each unit turns on as the receiving unit is powered by the transmitter unit via the network cable). HDMI Extender supports IR passback for devices with remote IR control. This product is ideal for AV transmission in conferences, video shooting, education, digital advertising, signage, etc. - Input: 1x HDMI + IR - Outputs: 1x local HDMI output, 1x remote HDMI output + IR - EDID adjustable (fixed image resolution size) - Supports FULL HD 1080p up to 50m - 10.2 Gbps bit rate including HDCP support - For resolutions: 480i,480p,720i,720p,1080i and 1080p - Extender transmits HDMI digital video, audio and IR control signals - Uses high quality 1x Cat6/6a/7 LAN cable for connection ( for a distance of 50m use copper cable with AWG23 conductors , such as UTP Cat6 cable in meter code:sutpd6c3 ) - The extender must not be plugged into an active computer network,switch, router or other active network device. The extender's transmitter and receiver must be directly connected by LAN cable, preferably without interruption. - The transmitter and receiver are powered from the included 230V/5V power adapters - Only the transmitter power supply can be used, the receiver will be powered via the mains cable - The transmitter and receiver has a handy RESET button - The transmitter and receiver have signal LEDs to indicate when the units have connected and signal transmission is in progress. Included: 1x Transmitter unit 1x Receiver unit 2x IR cables 1x manual 2x power adapter
