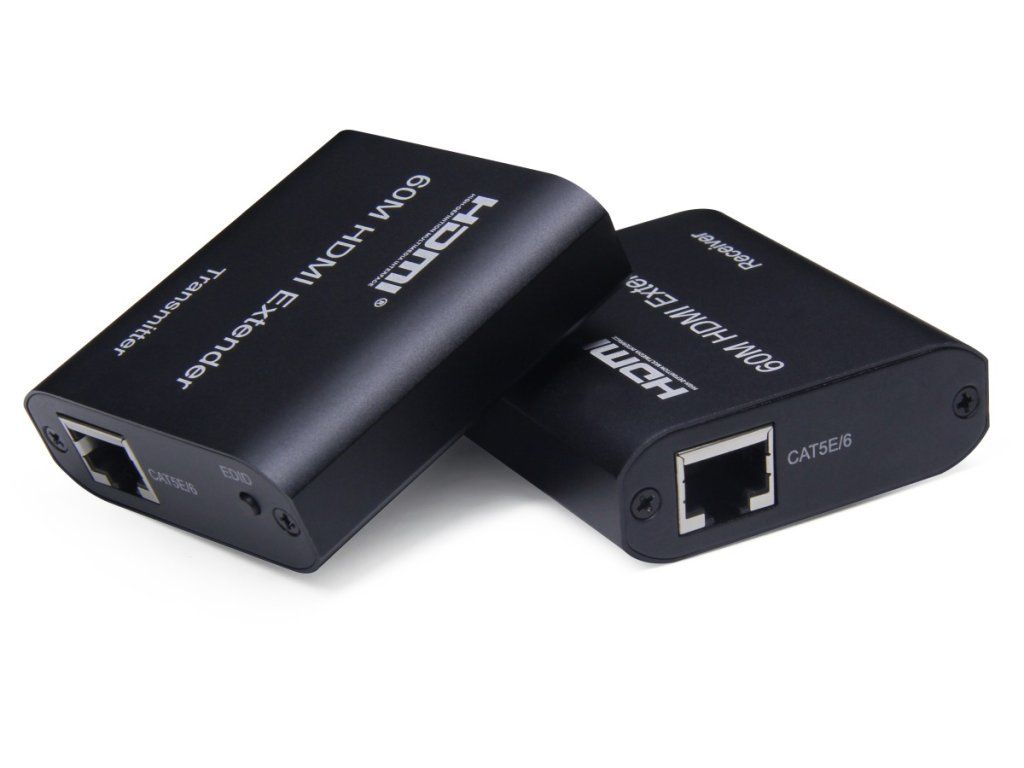

PremiumCord HDMI extender to 60m FULL HD 1080p over one Cat5e/6/6a/7 cable, EDID setup

Product detailed description

PremiumCord HDMI extender to 60m FULL HD 1080p over one Cat5e/6/6a/7 cable, EDID setup The device allows you to transmit HDMI FULL HD 1080p signal without distortion over one network cable up to 60m. Includes EDID switches that allow you to set the desired HDMI signal format, this extender is ideal for AV transmission at conferences, video shooting, education, digital signage, etc. - 1x HDMI input - Output: 1x HDMI - EDID setting option (fixed image resolution size is 1080p or 720p, factory setting is 1080p) EDID button is pressed for 3 sec. - Supports FULL HD 1080p up to 60m - 4.5 Gbps bit rate, 150MHz bandwidth - Supported resolutions: 1080p/1080i/720p/576p/576i/480p/480i - Extender transmits HDMI digital video and audio - There is no delay in the transmission of video and audio, it is possible to use the image from the computer using the mouse - Uses high quality 1x LAN cable Cat5e/6/6a/7 for connection ( for a distance of 60m use copper cable, we recommend for example UTP Cat6 AWG23 cable in meter code:sutpd6c3 ) - The extender must not be connected to an active computer network,switch, router or other active network device. - The extender's transmitter and receiver must be directly connected by LAN cable, preferably without interruption. - The transmitter and receiver are powered by the included 230V/5V 1A power adapters - The transmitter and receiver have red signal LEDs to indicate that power is being supplied from the power supply - The transmitter and receiver have blue signal LEDs to indicate whether there is a signal at the HDMI input and output - Operating temperature: -15°C to +45°C - Dimensions: 60 x 56 x 19 mm - Weight: 53 g + 53 g Package: 1x Transmitter unit 1x Receiver unit 1x Manual 2x 230V/5V 1A power adapter with micro USB connector
