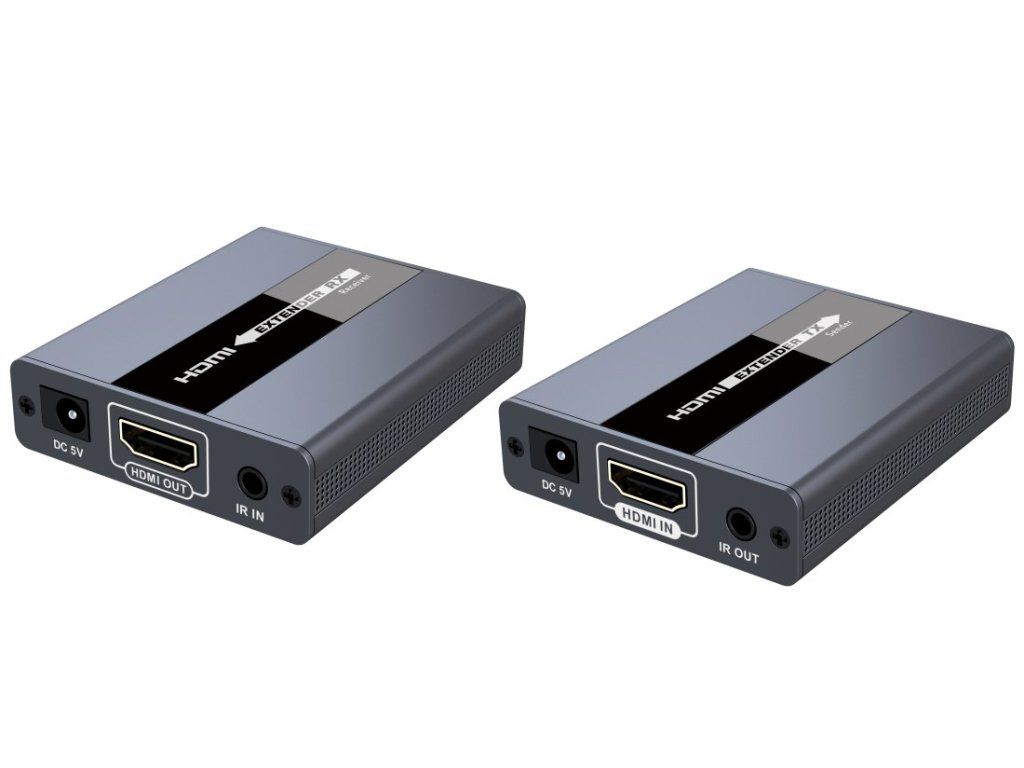

PremiumCord HDMI extender up to 120m via one Cat5/6 cable, no delay

Product detailed description

PremiumCord HDMI extender to 120m over one Cat5/6 cable, no delay The device allows you to transmit HDMI FULL HD signal and IR control signal up to 120m over one network cable without delay. - It supports FULL HD 1080p up to 120m when using a quality CAT6 UTP cable with AWG23 copper conductors (we recommend our cable code: sutpd6c3) - We recommend a high quality Cat5e,Cat6,Cat7 UTP cable with copper conductors, preferably AWG23, does not need to be shielded for interconnection - For resolutions:720x576@50Hz, 720x480@60Hz, 1280x720@60Hz, 1920x1080@60Hz, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1680x1050@60Hz - Bitrate: 10.2Gbps - Compatible with HDMI 1.3 - Supports HDCP1.4 - Maximum range: 120m when using CAT6 cable AWG23 - Maximum range: 100m using CAT5 cable AWG24 - Input HDMI cable max. 8m when using HDMI cable with AWG24 conductors - HDMI output cable max. 8m when using HDMI cable with AWG24 conductors - Extender transmits IR control signals ( 20-60kHz ), IR receiver and IR transmitter included - The transmitter and receiver are powered by the included 230V/5V 1A power adapters - Maximum power consumption of the transmitter:2W - Maximum power consumption of the receiver: 2W - Transmitter dimensions:length:69mm, width:59mm, height:16mm - Receiver dimensions:length:69mm, width:59mm, height:16mm - Weight: 70g + 70g - Working temperature: 0-70°C Package: 1x Transmitter unit 1x Receiver unit 1x Manual 1x IR receiver unit 1x IR transmitter 2x power adapter 5V/1A
