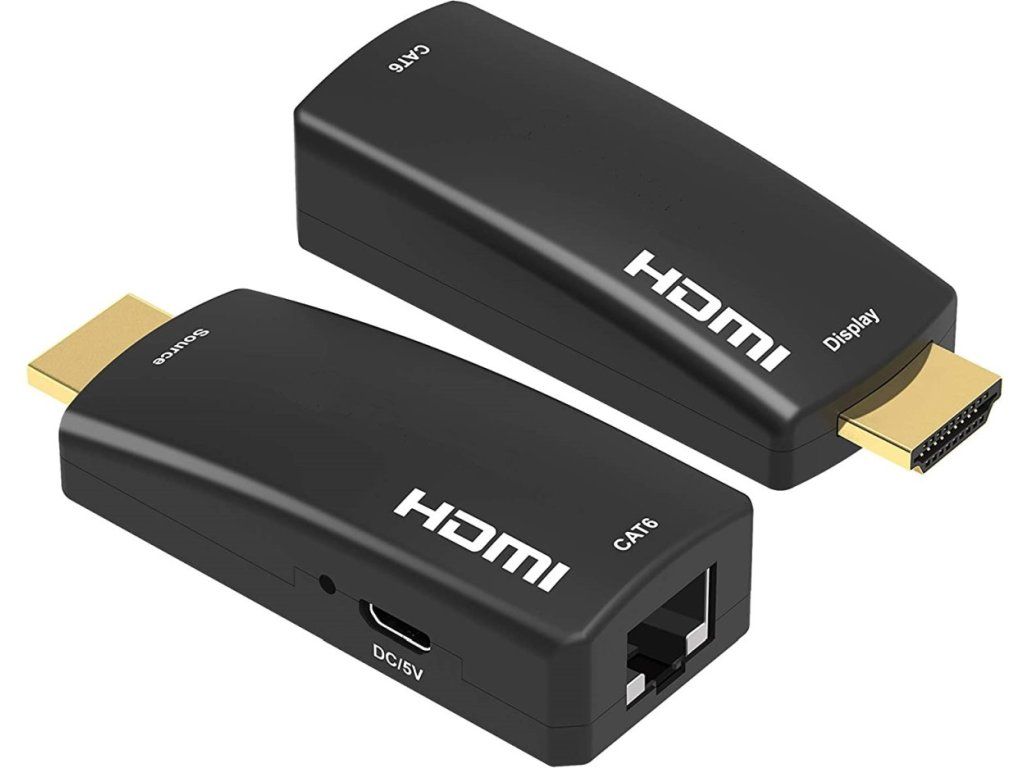

PremiumCord HDMI FULL HD 1080p extender to 50m over one Cat5e/6 cable

Product detailed description

The device allows one network cable to transmit HDMI FULL HD 1080p signal up to 50m. - The extender includes a transmitter and receiver that connect with one Cat5e,Cat6,Cat6A,Cat7 cable - Supports FULL HD 1080p up to 50m with Cat6 cable and above (40m with Cat5e) We recommend using a quality LAN cable with copper conductors and AWG23. The quality of the LAN cable limits the length of transmission. - Bandwidth 225MHz, transmission speed 10.2 Gbps - HDCP 1.3 support - Compatible with HDMI 1.3 - Maximum resolution FULL HD 1080p - For resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz - Input connector: HDMI male - Output connector: HDMI male - The transmit and receive adapters have a connector that can be plugged directly into the monitor and signal source.No additional HDMI cable is needed. - The transmitter and receiver connect directly via a cable with RJ45 connectors - The transmitter and receiver have a micro USB connector into which a short micro USB male - USB A male cable plugs, this cable plugs into the USB connector of the PC or monitor and is used to power the extender. - The extender transmits HDMI digital video, audio - Uses a high quality 1x Cat5e, Cat6, Cat6A, Cat7 LAN cable for connection ( for a distance of 50m use copper cable with AWG23 conductors , for example UTP Cat6 cable in meter code:sutpd6c3 ) - The extender must not be connected to an active computer LAN, switch, router or other active network device. The extender's transmitter and receiver must be directly connected by LAN cable, preferably without interruption. - The transmitter and receiver are powered by the included USB cables that plug into the USB port - Supports PoE - only one unit needs to be plugged into the USB power supply, the second unit is powered from the first via a UTP cable - Power consumption: TX: 2W; RX < 2W - Transmitter and receiver have a handy RESET button - Operating temperature: 0 - 50°C - Transmitter and receiver dimensions: 61.5×27×16.8mm - Weight of transmitter and receiver: 10g Package: 1x Transmitter unit 1x Receiver unit 1x Manual 2x power supply micro USB male - USB A male cables
