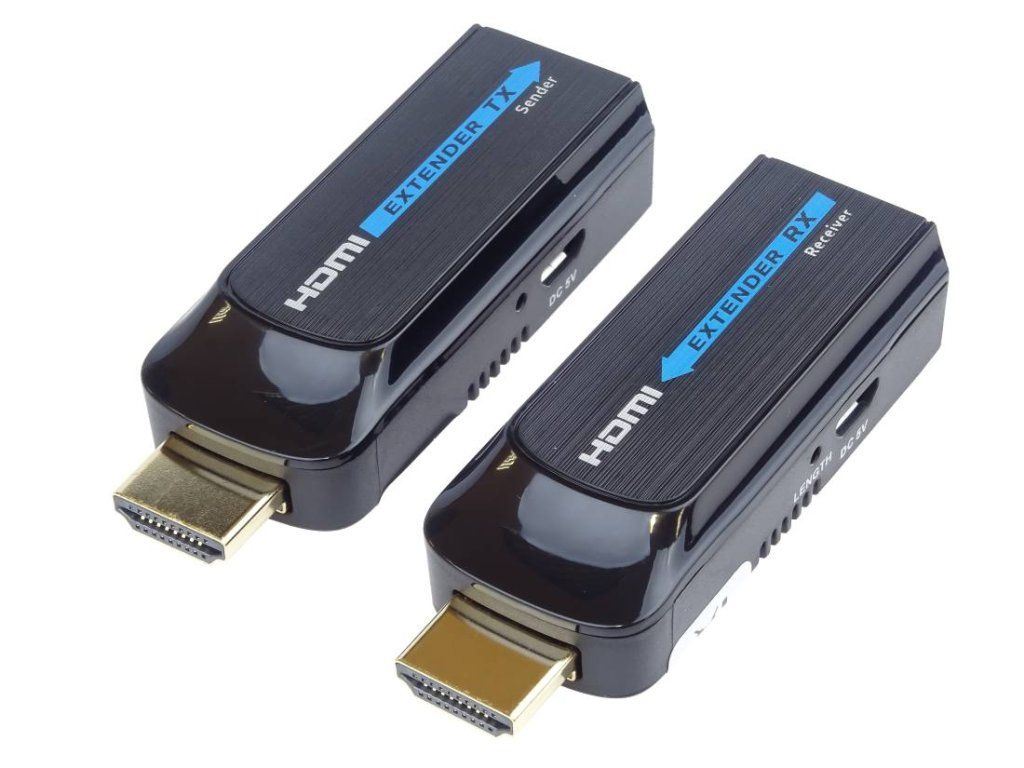

PremiumCord HDMI FULL HD 1080p extender to 50m via one Cat6 cable

Product detailed description

The device allows one network cable to transmit HDMI FULL HD 1080p signal up to 50m. - The extender includes a transmitter and receiver that connect with one Cat6,Cat6A,Cat7 cable - Supports FULL HD 1080p up to 60m - Bandwidth 225MHz, transmission speed 10.2 Gbps - Support HDCP 1.3 - Compatible with HDMI 1.3 - Maximum resolution of FULL HD 1080p - For resolutions: 480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz, 1080i@50/60Hz, 1080p@50/60Hz - Input connector: HDMI male - Output connector: HDMI female - The transmitter and receiver are connected by a cable with RJ45 connectors - The transmitter and receiver have a micro USB connector into which a short micro USB male - USB A male cable plugs, this cable plugs into the USB connector of a PC or monitor and is used to power the extender. - The extender transmits HDMI digital video, audio - Uses a high quality 1x LAN cable Cat6, Cat6A, Cat7 for connection ( for a distance of 50m use copper cable with AWG23 conductors , for example UTP Cat6 cable in meter code:sutpd6c3 ) - The extender must not be connected to an active LAN computer network, switch, router or other active network device. The extender's transmitter and receiver must be directly connected by LAN cable, preferably without interruption. - The transmitter and receiver are powered by the included USB cables that plug into the USB port - Supports PoE - only one unit needs to be plugged into the USB power supply, the second unit is powered from the first via a UTP cable - Power consumption: TX: 2W; RX < 2W - Transmitter and receiver have a handy RESET button - Operating temperature: 0 - 50°C - Transmitter and receiver dimensions: 71.35×25.9×11.05mm - Weight of transmitter and receiver: 10g Package: 1x Transmitter unit 1x Receiver unit 1x Manual 2x power supply micro USB male - USB A male cables
