PremiumCord HDMI KVM extender to 150m via one Cat5e/Cat6 cable

Product detailed description

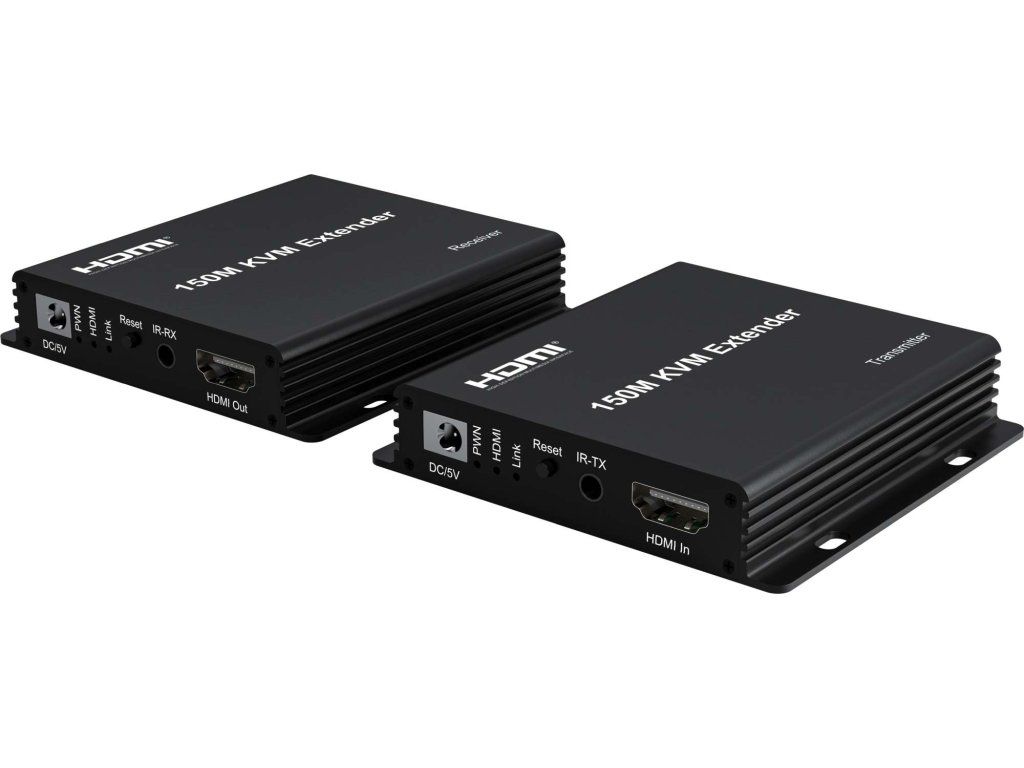

PremiumCord HDMI KVM extender to 150m via one Cat5e/Cat6 cable The device allows you to transmit HDMI signal and USB (keyboard, mouse) and IR control up to 150m over one network cable. - Supports FULL HD 1080p, 720p, 480p resolution up to 150m - HDMI extender consists of TX transmitter and RX receiver - Input and output connectors of transmitter and receiver: HDMI female - Transmitter and receiver connection connectors: RJ45 female - High quality 1x LAN cable Cat5e,Cat6 or Cat7 is used to connect TX and RX ( we recommend to use high quality uninterrupted UTP cable with AWG24-23 copper conductors ) - Bandwidth: 148.5MHz - Max.data transfer rate: 1Gbps - For resolution: 480i,480p,576i,576p,720p,1080i, 1080p - Video format 8bit YCbYCr/RGB - Audio format: LPCM - Extender transmits HDMI digital video and audio - The extender must not be connected to an active computer network, switch, router or other active network device. The extender's transmitter and receiver must be directly connected by LAN cable, preferably without interruption. - The HDMI input and output cables can be up to 10m long with an AWG of AWG26 (AWG26 applies to 7m and 10m cable lengths) - The transmitter and receiver are powered from the included 230V/5V, 1A power adapters, maximum draw 400mA - The transmitter and receiver have signal LEDs to indicate power, presence of HDMI signal and when the units have connected and signal transmission is in progress. - Operating temperature: -15 to +55°C - Transmitter and receiver dimensions:90mm x 91mm x 19mm - Transmitter weight:121g - Receiver weight: 121g - Operating humidity: 10% to 80% RH (non-condensing) - Operating temperature: 0°C to 45°C Package includes: 1x Transmitter Unit 1x Receiver Unit 1x Manual 2x power adapter For interconnection, use uninterrupted Cat5e/Cat6 straight cable with strong copper conductors of min. cross section AWG24-23. Extenders must not be connected to an Ethernet computer network.
