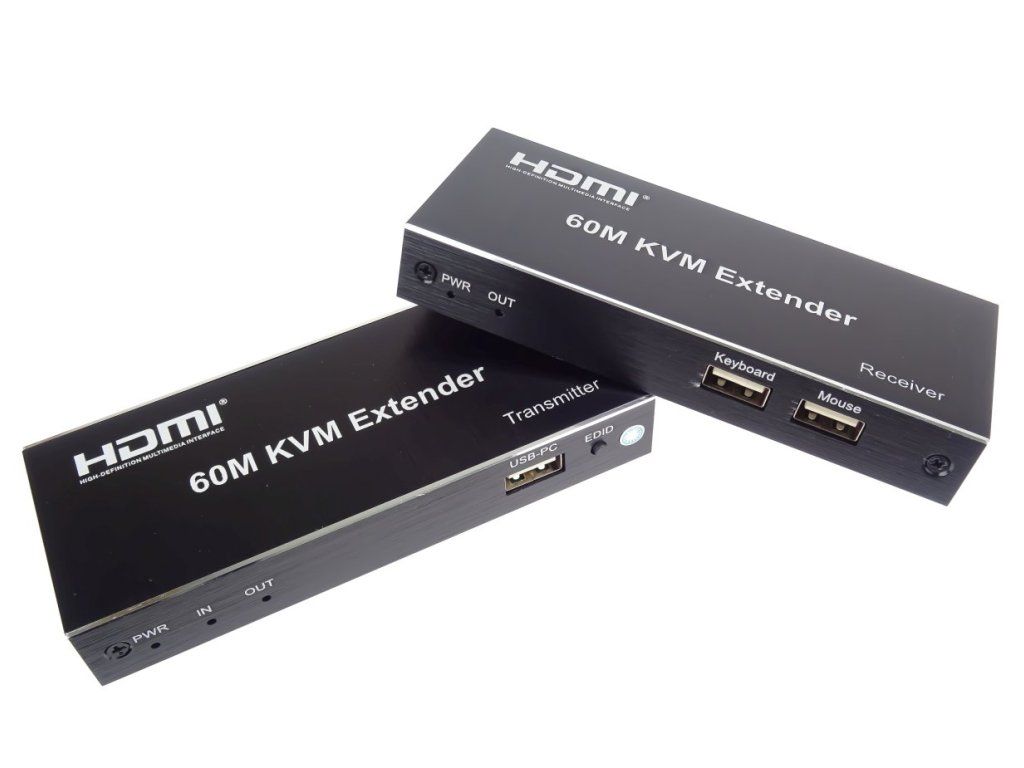

PremiumCord HDMI KVM extender with 2xUSB to 60m with audio over one Cat5/6 cable

Product detailed description

PremiumCord HDMI KVM extender with 2xUSB to 60m with audio over one Cat5/6 cable The device allows you to transfer HDMI FULL HD 1080p signal, USB keyboard and mouse, IrDa remote control up to 60m over one network cable without delay.The extender is equipped with audio outputs. - The KVM extender (keyboard, video and mouse) allows you to transfer the signal together over a longer distance and remotely control your computer or server. The computer plugs into the transmitter and the monitor, keyboard and mouse plug into the receiver. - It allows you to connect a monitor, TV or projector at a greater distance from the player. Remotely control the player using IR signals that can also be transmitted by the KVM extender. - Supports FULL HD 1080p up to 60m using high quality CAT6 UTP cable with AWG23 copper conductors (we recommend our cable code: sutpd6c3 ) - We recommend a high quality Cat5e,Cat6,Cat7 UTP cable with copper conductors, preferably AWG23, does not need to be shielded for interconnection - Pro rozlišení:1080p/1080i720p/576p/576i/480p/480i - Bandwidth: 150MHz - Bitrate: 4.5Gbps - Maximum range: 60m when using CAT6 cable AWG23 - Input HDMI cable: 10m max when using HDMI cable with AWG24 conductors - HDMI output cable max. 15m when using HDMI cable with AWG24 conductors - The transmitter and receiver are connected to each other with a high quality CAT6/CAT5e cable.Both units have an RJ45 connector - The transmitter has one HDMI input connector. The receiver has one HDMI output for remote monitors. - The extender also transmits USB, the transmitter has one USB port for connecting to a computer, the receiver has two USB connectors for connecting a mouse and keyboard - Extender transmits IR signals for controlling IR devices - Both the transmitter and receiver are equipped with 3.5mm stereo jack audio outputs where you can plug in headphones or an audio amplifier. - The transmitter and receiver are powered by the included 230V/5V, 1A power adapters - Transmitter dimensions:length:122mm, width:50mm, height:19mm - Receiver dimensions:length:122mm, width:50mm, height:19mm - Weight: 108g + 108g - Operating temperature: 0 to 45°C Connection and operation: 1. Connect one HDMl cable between the source device and TX transmitter, maximum cable distance is 10 meters;cables must be of good quality with AWG24 conductors 2. Connect one HDMI cable between the display device and RX receiver, the maximum cable distance is 15 meters; cables must be of good quality with AWG24 conductors 3. Connect one uninterrupted CAT5e or CAT6 (recommended) cable to connect TX transmitter and RX receiver, maximum cable distance is 60 meters; 4. Connect a 5V power supply to the TX transmitter and RX receiver; 5. LED indicator: TX LED: If signal is available, it will turn to blue; RX LED: If signal is available, it will turn to blue; 6. EDID Button: The button can support EDID switching between 720P and 1080P. (1080P is the default EDID when power is on). 7. Plug the IR receiver cable into the receiver and plug the IR transmitter cable into the transmitter, if you need the IR receiver cable, focus on the device that needs to be controlled. 8. Connect a mouse and keyboard to the two USB ports of the receiver, and if you need the KVM control function, connect the USB port of the transmitter to the computer. The kit includes: 1x TX Extender 1x .RX Extender 1x IR receiver cable 1x IR transmitter cable 2x 5V power adapter 1x User manual
