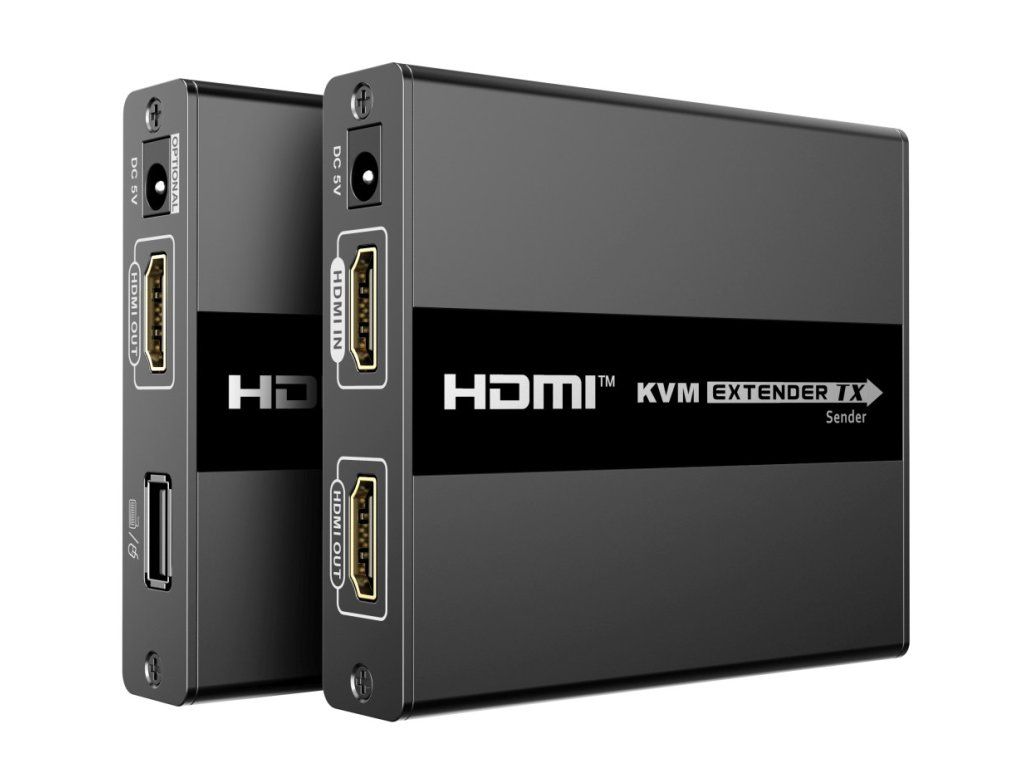

PremiumCord HDMI KVM extender with USB to 60m via one Cat5/6 cable, no delay

Product detailed description

PremiumCord HDMI KVM extender with USB to 60m via one Cat5/6 cable, no delay The device allows a single network cable to transmit HDMI FULL HD 1080p signal and USB up to 60m without delay. - The KVM extender (keyboard, video and mouse) allows you to transmit the signal together over a longer distance and remotely control a computer or server. - Supports FULL HD 1080p up to 60m when using a quality CAT6 UTP cable with AWG23 copper conductors (we recommend our cable code: sutpd6c3 ) - We recommend a high quality Cat5e,Cat6,Cat7 UTP cable with copper conductors, preferably AWG23, does not need to be shielded for interconnection - For resolutions:720x576@50Hz, 720x480@60Hz, 1280x720@60Hz, 1920x1080@60Hz, 640x480@60Hz, 800x600@60Hz, 1024x768@60Hz, 1280x800@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1680x1050@60Hz - Bitrate: 10.2Gbps - Compatible with HDMI 1.3 - Supports HDCP1.4 - Maximum range: 60m when using CAT6 cable AWG23 - Maximum range: 50m using CAT5 cable AWG24 - Input HDMI cable max. 8m when using HDMI cable with AWG24 conductors - HDMI output cable max. 8m when using HDMI cable with AWG24 conductors - The transmitter and receiver are connected to each other with a high quality CAT6/CAT5e cable.Both units have an RJ45 connector - The transmitter has one HDMI input connector and one local HDMI output. The receiver has one HDMI output for remote monitors. - The extender also transmits USB, the transmitter has one USB for connecting to a computer,the receiver has two USB connectors for connecting e.g. a mouse and keyboard - The transmitter and receiver are powered from the included 230V/5V, 2A power adapters, this extender allows power from only one side with one adapter as shown in the attached picture - Dimensions of the extender:length:91mm, width:79mm, height:18mm - Receiver dimensions:length:91mm, width:79mm, height:18mm - Weight: 210g + 210g - Working temperature: 0-60°C Package: 1x Transmitter unit 1x Receiver unit 1x Manual 1x 5V/2A power adapter
