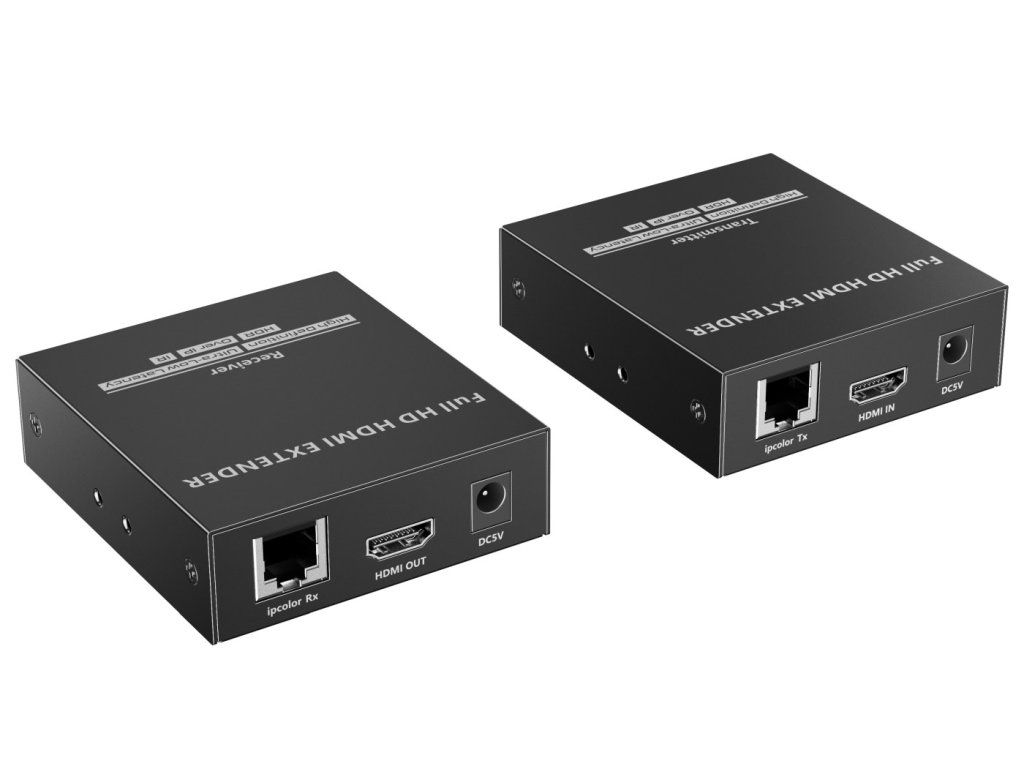

PremiumCord HDMI uncompressed extender to 150m over LAN, over IP, HDR

Product detailed description

PremiumCord HDMI uncompressed extender to 150m over LAN, over IP, HDR, IR transmission The device allows you to transmit uncompressed HDMI FULL HD 1080p signals up to 150m and IR signals simultaneously over a single network cable or LAN. The signal can be distributed via LAN, preferably Gigabit network and Gigabit switches as shown in the wiring diagram. - The extender allows the use of one transmitter and multiple receivers interconnected by LAN, switches and routers (tested on FULL HD 1080p and 150m cable + swich + 2 receivers) this computer network must be dedicated to HDMI extenders only, it must not share other computers, printers and other network devices. - The extender can connect up to 253 receivers and connect via switches to a single transmitter. - Supports FULL HD 1080p up to 150m using a quality Cat6/6A/7, HDMI1.4 network - Supports HDR10 - Supports HDCP 1.4 - For resolution:480P@60hz, 576P@60Hz, 1400x1050@60Hz, 1366x768@60Hz, 1360x768@60Hz, 1280x768@60Hz, 720p@50/60Hz, 1024x768@60Hz, 1280x800@60Hz, 1280x960@60Hz, 1280x1024@60Hz, 1440x900@60Hz, 1600x900@60Hz, 1600x1200@60Hz, 1680x1050@60Hz, 1920x1200@60Hz, 1080p@24/25/30/50/60Hz - Supports video format:24bit/Deep color 30bit/deep color 36bit - Supports Audio:DTS-Audio/Dolby Digital 5.1/LPCM2.0 - Bit rate:10.2Gbps - Extender transmits HDMI digital video, audio. - LAN cable TIA/EIA568 B - We recommend a high quality Cat6,Cat6A,Cat7 LAN cable for connection - The transmitter and receiver are powered by the included 230V/5V 1A power adapters - The transmitter and receiver has a handy RESET button - The transmitter and receiver have signal LEDs to indicate when the units have connected and signal transmission is in progress. - Recommended HDMI input and output cables shorter than 5m - IR frequency: 20kHz - 60kHz - Power consumption less than 4W - Transmitter and receiver dimensions:length:85mm, width:76mm, height:25mm - Weight: TX:157g , RX:157g - Operating temperature: -20°C to 60°C - Humidity: 0-90% RH (non-condensing) - Durable metal housing - Color black Package: 1x Transmitter Unit 1x Receiver unit 2x IR cables 1x manual 2x power adapter 5V/1A
