PremiumCord Optical HDMI extender FULL HD 1080p up to 40km

Product detailed description

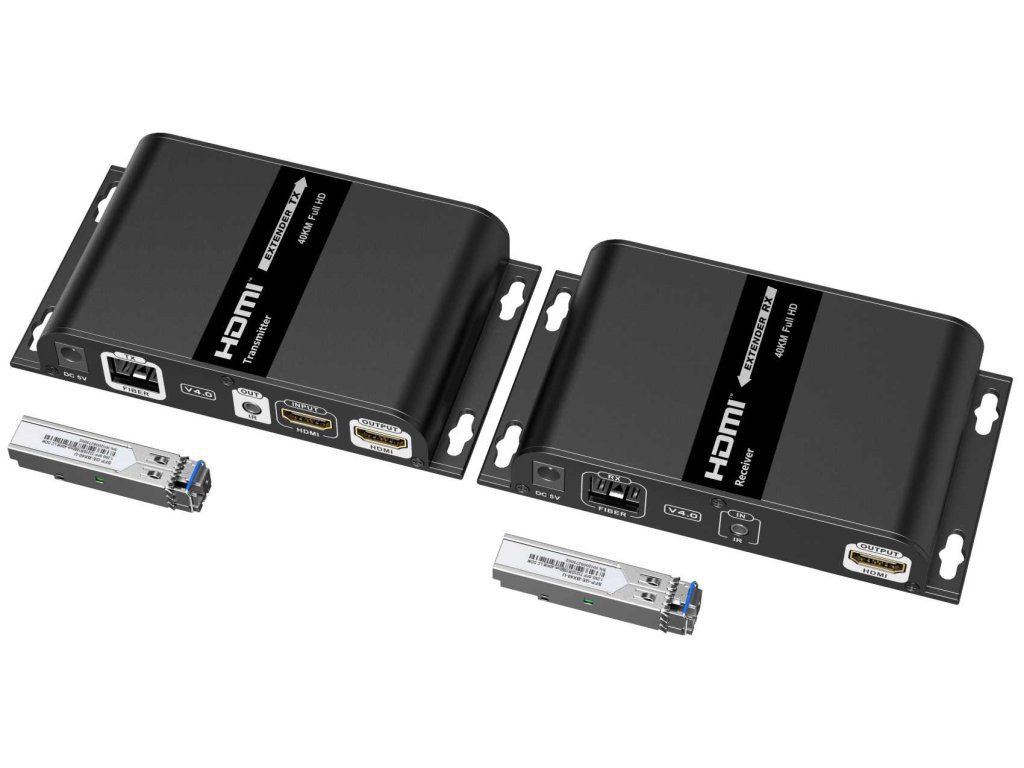

PremiumCord Optical HDMI extender FULL HD 1080p up to 40km Transmit HDMI video and audio signals over distances up to 40km using fibre optic cables. In addition, you can transmit IR remote control signals to the source device. So you can control the source device from the receiver. With this high-performance video system, you can power up to 16 receivers over a distance of up to 5 km using an additional optical switch. Three LEDs on the front of the transmitter and receiver always keep you informed of the status of the device. This kit consists of a transmitter and receiver module and is particularly suitable for transmitting HDMI signals over long distances. Ideal for connections between buildings or large industrial complexes. - Optical LC connector - Optical fiber: SMF - Wavelength: 1310/1550nm - HDMI Connection: Type A, socket - Fiber Optic Connection: LC Simplex, socket - The set includes two high-end SFP modules for LC fiber optic cable connection - Transmission: 150 Mbps - Transmission distance: up to 40 km - Highest possible resolution: Full HD, 1080p / 60 Hz - HDMI input resolution: 480i at 60 Hz, 480p at 60 Hz, 576i at 50 Hz, 576p at 50 Hz, 720p at 50/60 Hz, 1080i at 50/60 Hz, 1080p at 50/60 Hz - HDMI output resolution: 1080p at 60 Hz, 720p, 576p, 480p - HDMI version: 1.3 - HDCP version: 1.4 - LED function indicator - TMDS Bandwidth: 10.2 Gpbs - Transmitter wavelength: 1310 nm (TX), 1550 nm (RX) - Receiver wavelength: 1550 nm (RX), 1310 nm (TX) - DDC input and output signal: 5 Vp-p (TTL) - Remote IR signal routing: 20 - 60 kHz - Surge-resistant - Operating temperature: -20 to +60°C - Operating Humidity: 0-90% (non-condensing) - Operating voltage: 5 V/DC/2 A - Power consumption: Transmitting module: <3W / Receiving module: <3W - Dimensions: L 138 x W 81.5 x H 24 mm - Material: aluminium housing - Black color - Weight: Transmitting module: 180 g / Receiving module: 180 g - The output signal from the transmitter can be connected via optical switch to up to 16 receivers and displayed on 16 monitors Package contents 1x transmitter module 1x Receiver module 2x IR connection cables 2x power supplies 1x Manual
