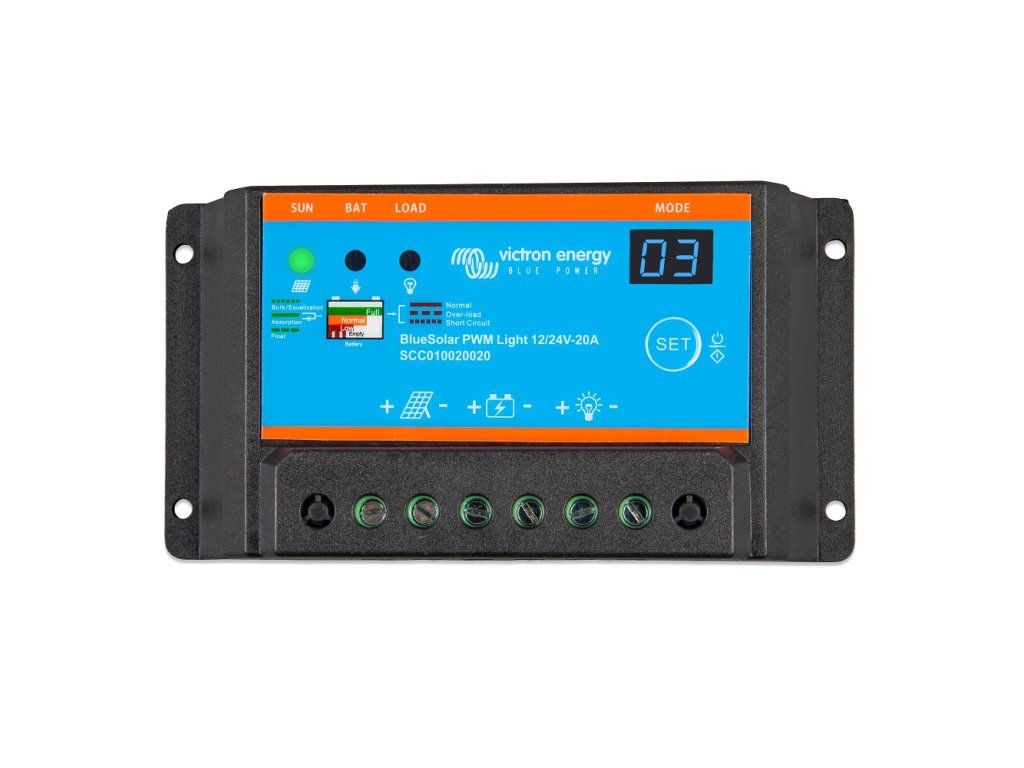

PWM solar controller Victron Energy BlueSolar-light 20A

Product detailed description

PWM controller. Its design is intended for small island solar systems with 12V (36 cells) or 24V (72 cells) panels and maximum current up to 20A. The advantage is very simple and easy installation and reliable operation. Features: - simple setting of automatic switching on and off of the load output via the integrated display - internal temperature sensor - automatic detection of 12V or 24V - three stages of battery charging - overvoltage protection - short circuit protection - over-polarity protection for solar panel and battery connections - disconnects the load output in case of low voltage - dimensions: 70 x 133 x 33.5 mm - weight: 160g - operating temperature: -35°C to +55°C - designed for indoor installation, wall mounting - for recharging lead-acid batteries
