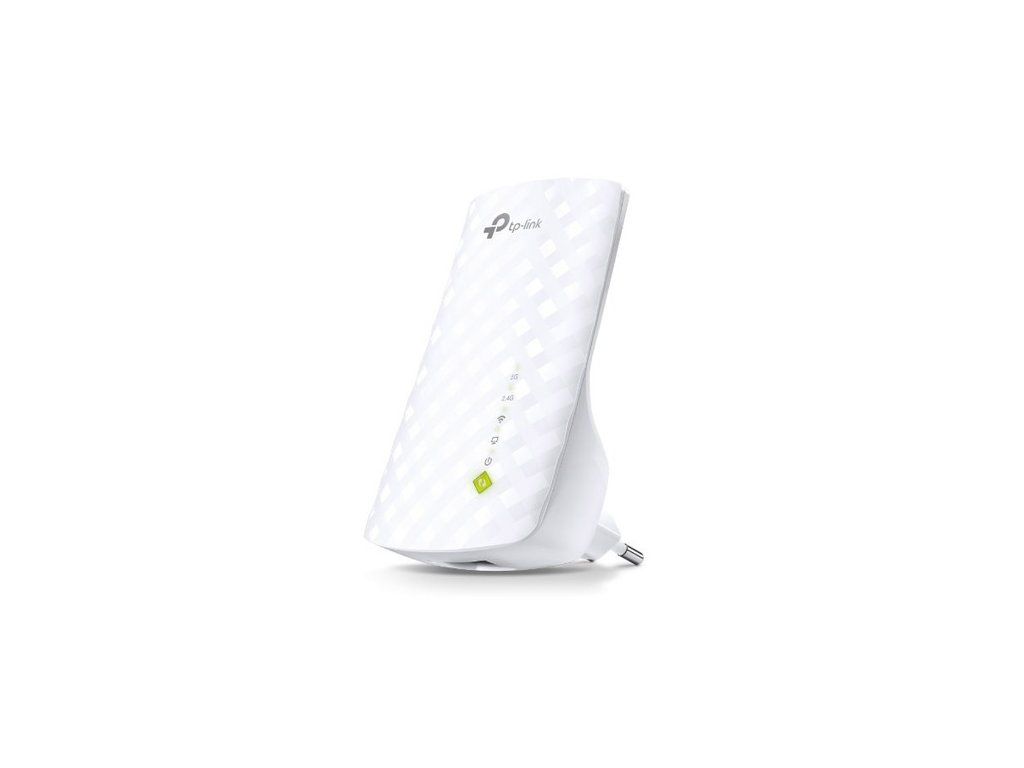

Repeater TP-LINK RE200

Product detailed description

The RE200 signal repeater extends your existing WiFi coverage using 11AC wireless technology. It works with a standard wireless router to create a stronger dual-band connection in hard-to-reach areas, giving you seamless wireless coverage throughout your home or office. Creates faster access for 802.11 b/g/n and 802.11ac wireless devices The RE200 signal repeater provides high speed dual-band wireless networking up to 750 Mbit/s and reliable connectivity for laptops, smartphones. Through high-speed technology, the RE200 signal repeater maximizes the use of both wireless bands to create a super-fast connection - ideal for streaming HD video, online gaming and other bandwidth-intensive tasks. Press the WPS button on the router to easily connect to your network, and within 2 minutes, press the Range Extender button on the RE200 signal repeater. Once you are connected through your router, you can simply disconnect and reconnect the RE200 Signal Repeater anywhere within range of your router's wireless network without having to reconfigure. With a separate Ethernet port, the RE200 signal repeater can function as a wireless adapter for connecting wired devices such as Blu-ray® players, game consoles, digital video recorders, and Internet TV. This device can use a wireless network.

Features:

- Amplifies the wireless signal and extends its range to previously inaccessible or hard-to-cable locations
- Compatible with 802.11 b/g/n and 802.11ac wireless devices
- Dual band speed 750 Mbit/s
- Miniature size and wall-mounted design allows for easy installation and flexible movement
- Thanks to the Ethernet port, the signal repeater can function as a wireless adapter to which wired devices can be connected
- Standards and protocols: IEEE802.11ac, IEEE 802.11n, IEEE 802.11g, IEEE 802.11b
- Interface: 1*10/100M Ethernet Port (RJ45)
- Connection Type:EU
- Button: RE (Range Extender) Button, Reset Button
- Dimensions (w*d*h*h): 110.0 x 65.8 x 75.2mm
- Antenna: 3x internal
- Power consumption: 6.5W
- Frequency: 2.4GHz & 5GHz
- Signal speed: 5GHz: Up to 433Mbps / 2.4GHz: Up to 300Mpbs
- EIRP: <20 dBm (EIRP)
- Wireless modes:Range Extender
- WMM (Wi-Fi Multimedia)
- Wireless Statistic
- Domain Login Function
- 64/128/152-bit WEP
- WPA-PSK / WPA2-PSK
- System Requirements:Microsoft® Windows® 98SE, NT, 2000, XP, Vista or Windows 7, 8, Mac® OS, NetWare®, UNIX® or Linux
- Operating environment: operating temperature: 0°C~40°C

Reception sensitivity:

2.4G: 270mm: -70dBm @ 10% PER

- 130M: -70dBm @ 10% PER
- 108M: -73dBm @ 10% PER
- 54M: -75dBm @ 10% PER
- 11M: -86dBm @ 8% PER
- 6M: -92dBm @ 10% PER
- 1M: -94dBm @ 8% PER

5G: 390m: -60dB @ 10% PER

- 29.3: -83dBm @ 10% PER
- 180M: -64dBm @ 10% PER
- 13.5: -87dBm @ 10% PER
- 78m: -68dBm @ 10% PER
- 6.5mm: -90dBm @ 10% PER
- 54M: -75dBm @ 10% PER
- 6M: -90dBm @ 10% PER
