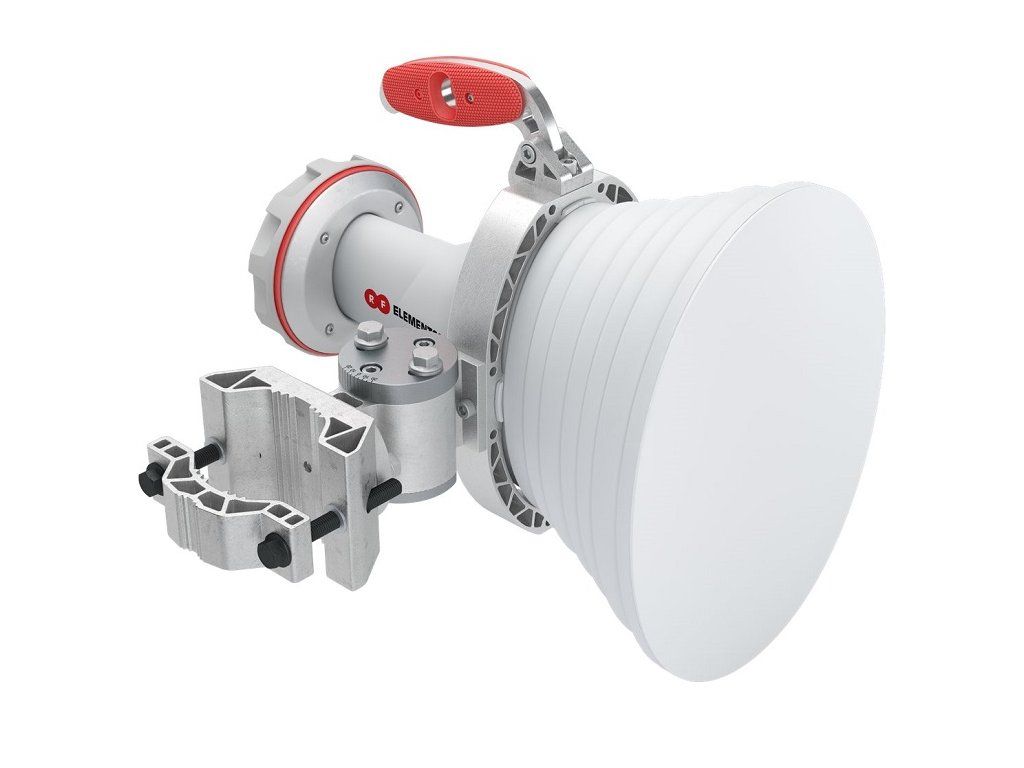

RF elements Asymmetric Horn Antenna with TwistPort, 5GHz, 20dBi, 30°

Product detailed description

The HAH2030-TP is a 5GHz sector horn antenna from RF elements and features a 30° asymmetric radiation angle, 20dBi gain and Twistport connector. This antenna offers the perfect combination of features and functions to address the major weaknesses of today's mainstream sector antennas. BeamSwitch - 20 or 30° The BeamSwitch feature allows the antenna to be mounted with a 90 degree rotation by changing the position of the handle and bracket. The AH2030-TP can thus provide 20 and 30 degree azimuth, depending on the rotation. TwistPort connector - Practical and lossless The TwistPort connector is virtually lossless and changes all established standards due to its ease of handling. There are no RF connectors or RF cables that cause significant signal loss. Compared to commonly used coaxial cables and connectors, the loss on the TwistPort is almost unmeasurable. Connecting and disconnecting is ingeniously simple and can be done with one hand. No side lobes The asymmetrical AH2030-TP antenna does not radiate side lobes, literally focusing the energy on one main signal beam. This behavior is one of the most important in wireless networks. Due to these unique radiation characteristics, the radio collects significantly less noise compared to existing common sector antennas. The noise problem is directly related to the antenna's side lobes - an essentially unavoidable feature in most competing products. The AH2030-TP antenna behaves differently, being essentially "deaf" outside the main beam. Coverage without dead zones The coverage of traditional sector antennas has a specific shape - if the AP is too high, clients that are close by suffer from poor signal quality. As the saying goes, "it's darkest under the candlestick". Asymmetric sector antennas emit a signal with a circularly flattened shaped beam. Therefore, the signal coverage from asymmetric sector antennas is almost free of dead zones, even clients located close to the AP will be satisfied. Excellent scalability Unique radiation characteristics, minimal side lobes and extremely low back radiation allow multiple antennas to be placed at a single point as well as multiple separate points to be built, allowing the load to be better distributed across APs to increase speeds to individual clients. Platform support For the use of third party products such as MikroTik, Ubiquiti or Cambium, RF elements offers a wide range of adapters to allow easy connection of these devices to the TwistPort connector. This allows you to transfer any unit to another antenna with a single click without screwing in pigtails. Innovative bracket The AH2030-TP asymmetric antenna features an innovative mounting system. The mounting of the bracket and the antenna is separate and is done in two steps. Package contents - Antenna - Precision mount
