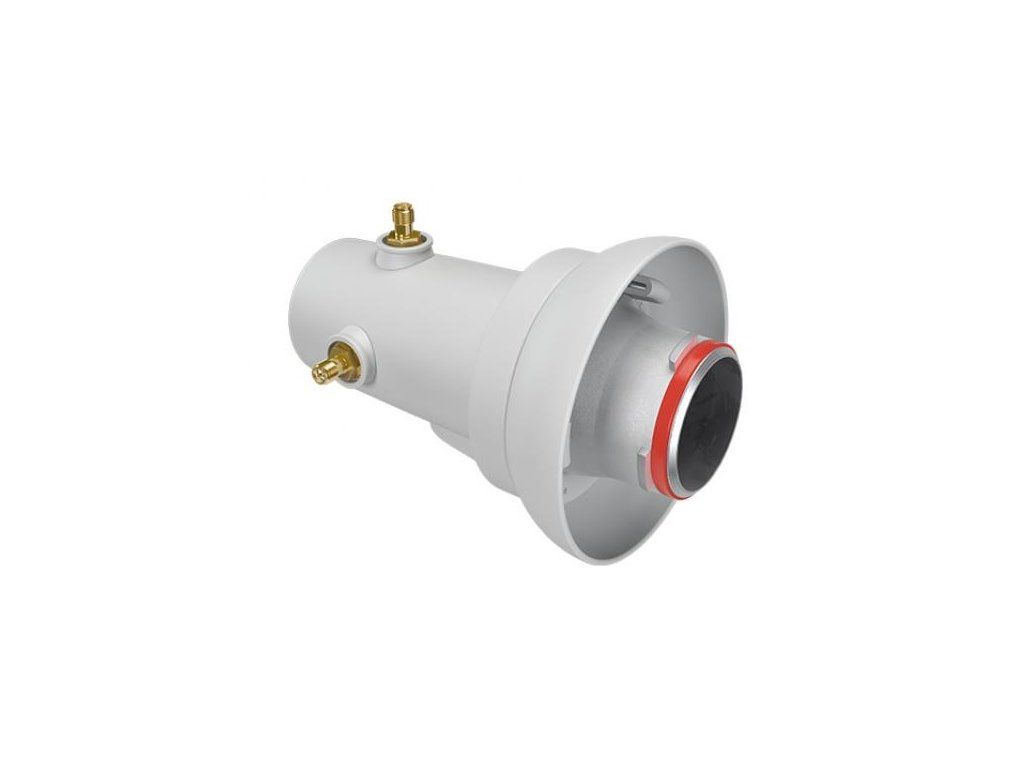

RF elements TPA-SMA TwistPort adapter with 2x RSMA connectors

Product detailed description

The TPA-SMA is a TwistPort to (2) RSMA-female connectors. The adapter allows the connection of any bi-polarizing transmitting unit using RF cables. The adapter is capable of operating in the 5180 to 6400MHz band. RSMA female connectors TPA-SMA provides the industry's most widely used RSMA female coaxial interface in both (V+H) polarizations. Minimized loss RSMA-female connectors are placed directly on the waveguide, eliminating the use of internal coaxial cables and keeping loss to a necessary minimum. Technical parameters Wireless features MIMO, SISO: 2 x 2 Polarization: VH VSWR: < 1.8 Wireless Frequency: 5 GHz Physical characteristics Mounting: On Antenna Shielding: Yes Use: Outdoor Material: Aluminum, UV stable ABS plastic Operating temperature [°C]: -40 to 60 Weight [kg]: 0.21 Depth [mm]: 134 Width [mm]: 90 Height [mm]: 90 Connectors and interfaces RF connectors: TwistPort, (2) RSMA female
