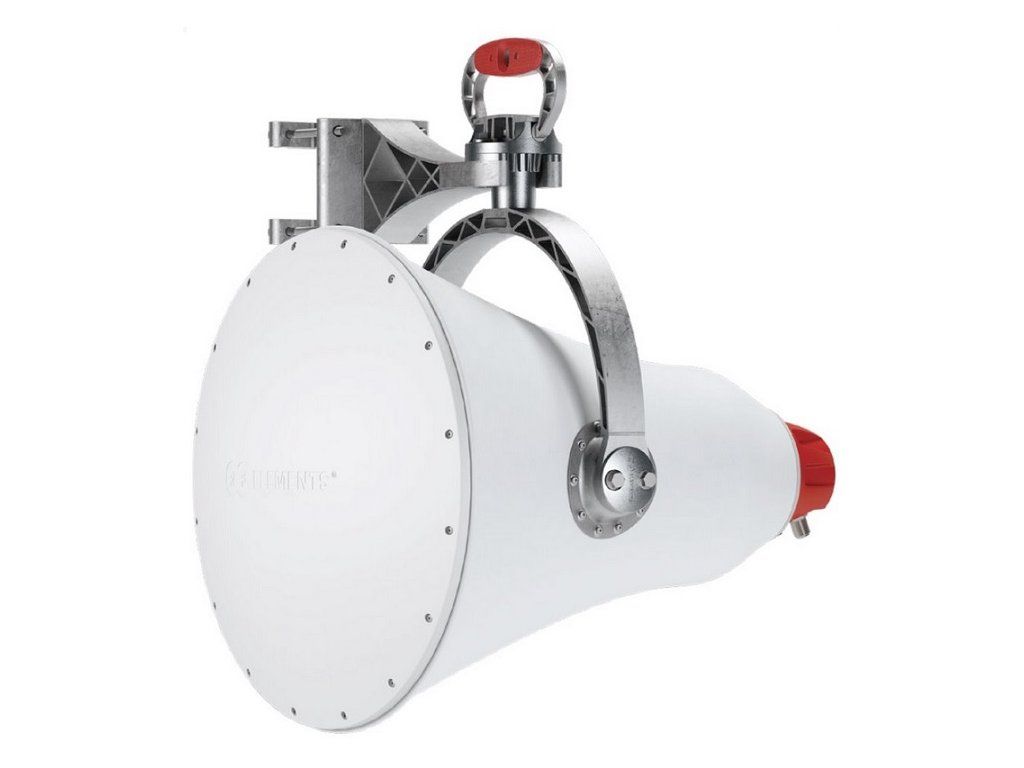

RF elements UH-CC-5-24 directional antenna UltraHorn CC 5-24, 5GHz, 24dBi

Product detailed description

The UH-CC-5-24 UltraHorn antenna from RF Elements is a directional antenna for point-to-point solutions with 24dBi gain, a low radiation angle of 11°, two N-female conactors and is designed for the 5GHz band. The UltraHorn antenna offers all the benefits of conventional directional antennas, plus it eliminates the problems of side lobes, which it nearly eliminates. Great directivity Because Horn antennas are inherently directional, all transmit power is directed into only one beam without side lobes. Commonly used parabolic antennas always have side lobes, which also creates an interference problem. N-female connectors The UltraHorn UH-CC-5-24 offers 2 N-female connectors for connection to the transmitting unit. Suitable for connecting any transmitting units using RF cables. No accessories required The UltraHorn comes as a complete product including all the necessary little things implemented into the product itself. No need to buy a "better mount", radome, shielding covers etc. Package contents: - UltraHorn antenna - Precision mount
