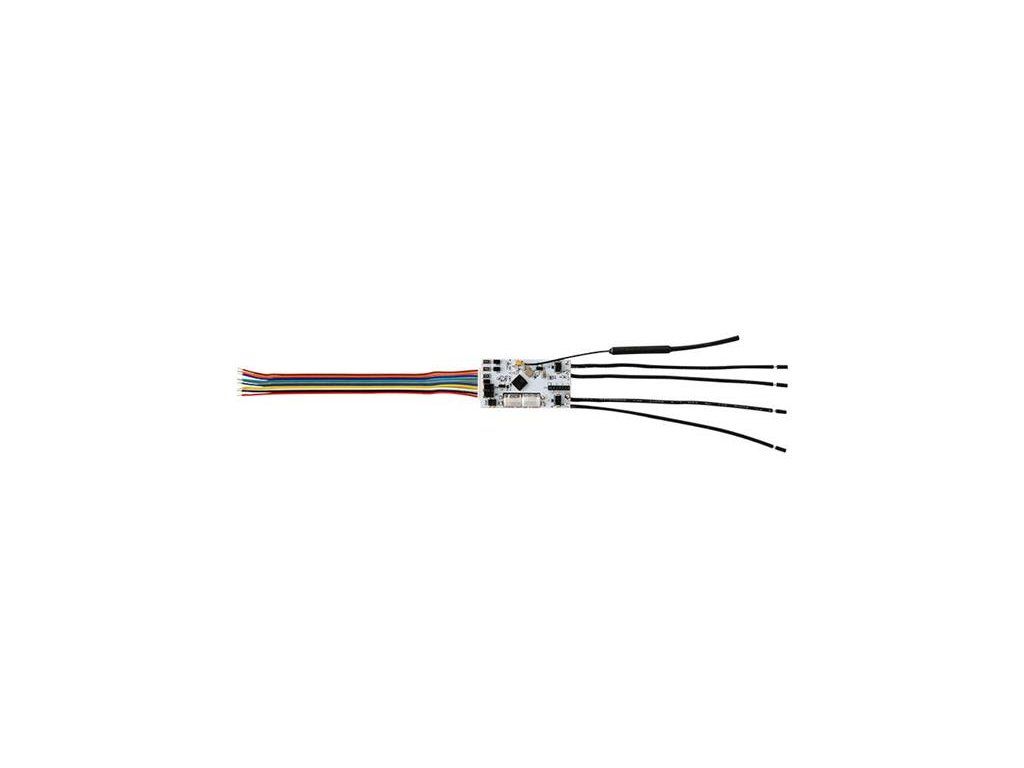

SHELLY Plus UNI WiFi control unit

Product detailed description

With Shelly Plus Uni, you get complete control over your electrical equipment wherever you are. With the remote control, you can remotely control your lighting, heating or ventilation using your smartphone, tablet, computer or home automation system. It features two solid-state relays with potential-free contacts, a pulse counter, analog inputs and two digital inputs. It can operate autonomously on a local Wi-Fi network or be controlled via cloud-based home automation services. It also has a built-in web interface that allows you to monitor and control the device and customize its settings.

Remote control
Whether you're at work, on holiday or simply in another part of the house, you can monitor and control the devices connected to Shelly Plus UNI at will - all you need is internet access! This versatile module is also compatible with popular platforms such as Google, Samsung SmartThings and Alexa. So you can easily integrate it into your existing systems and enjoy even more possibilities.

Specifications:

Power supply: 8-24 VAC; 9-28 VDC; 5 VDC (stabilized, via +5 VDC and GND).
Power consumption: < 1 W
Digital input resistance: 50 kΩ
Digital input trigger voltage: 1.5 V (active low level)
Maximum switching voltage: 30 V
Maximum switching current: 300 mA
Voltmeter: 0-15 VDC / 0-30 VDC (dual band)
Pulse counter trigger input: 1.5 V (active low level)
Maximum counter pulse frequency: 1 kHz
Supported external sensors: one DHT22 sensor or up to five DS18B20 sensors
Wi-Fi protocol: 802.11 b/g/n
Wi-Fi range: 1: Up to 30 m indoors and up to 50 m outdoors
Bluetooth protocol: 4.2
Bluetooth range: 4.2 4.2: Up to 10 m indoors and up to 30 m outdoors
CPU: ESP32
Flash memory: 4 MB
Plans: 20
Webhook (shared URLs): 20 with 5 URLs per webhook
Scripts: yes
MQTT: Yes
CoAP: No
Dimensions: 40 x 21 x 7 mm
Weight: 8,5 g
Ambient temperature: -20 °C to 40 °C
Humidity: 30% to 70% relative humidity
