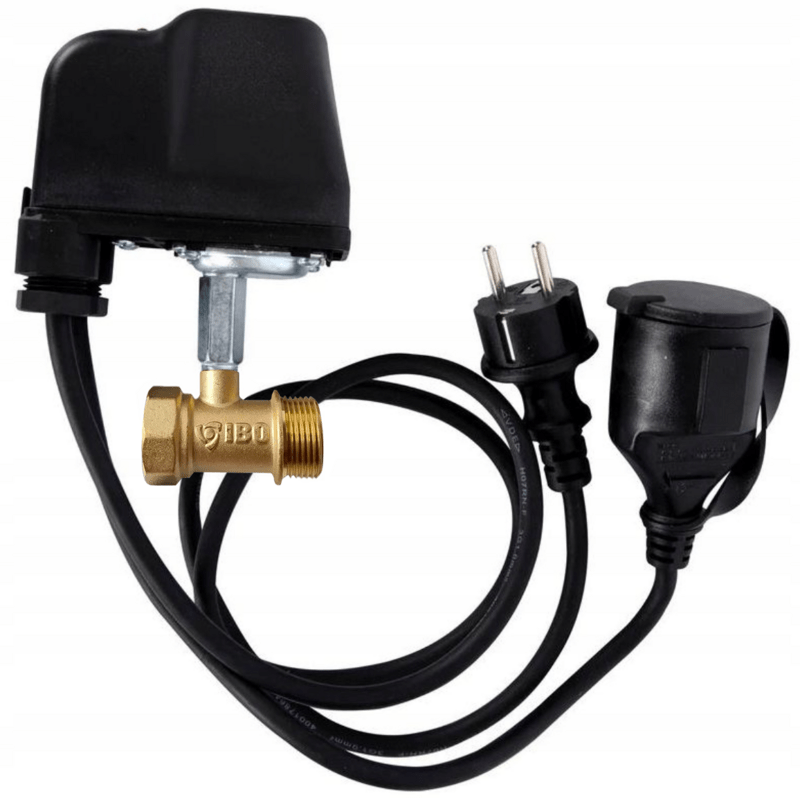

SK-13 dry run protection set with complete 1" connection

Code: PR_39808
naparovana cena na magic
Brand: IBO
€19,33 / pcs
1 week

Detailed information

Product detailed description

The SK-13 dry run protection is suitable for self priming, surface pumps and the vast majority of submersible pumps, including spindle submersible pumps up to 1.5kW. A minimum pump outlet pressure of 0.8 bar is required for proper use of the SK13 Dry Run Protection. The SK13 dry run protection is restarted manually. Advantages: easy installation in any (horizontal or vertical ) position protects the pump from damage is also suitable for use in domestic waterworks with pressure vessel and pressure switch (min. switching pressure 1.0 bar.) The SK13 dry run protection is supplied with cables, plug and socket. It operates by checking the pressure at the pump outlet. Factory set pressure and switch-on pressure: 0.7 bar (off) 1.2 bar (on) The SK13 dry run protection device switches off the power supply when it detects a system pressure lower than the set pressure. If the system pressure exceeds the set pressure, the device switches the power supply back on. The dry run protection can be applied independently or can work in conjunction with another switch. When operating with another switch, it protects the pump from pressure drop or damage caused by dry running. The dry run protection SK13 is equipped with a RESET button, providing conditional/compulsory connection of the pump. Dry run protection SK-13 set with 1" connection includes: dry run protection SK13 with connection (female+male) connecting fitting 3-way Teflon tape

Additional parameters

Category: Dry run protection
Rozmer pripojenia: G 1/4
EAN: 8585054503971
