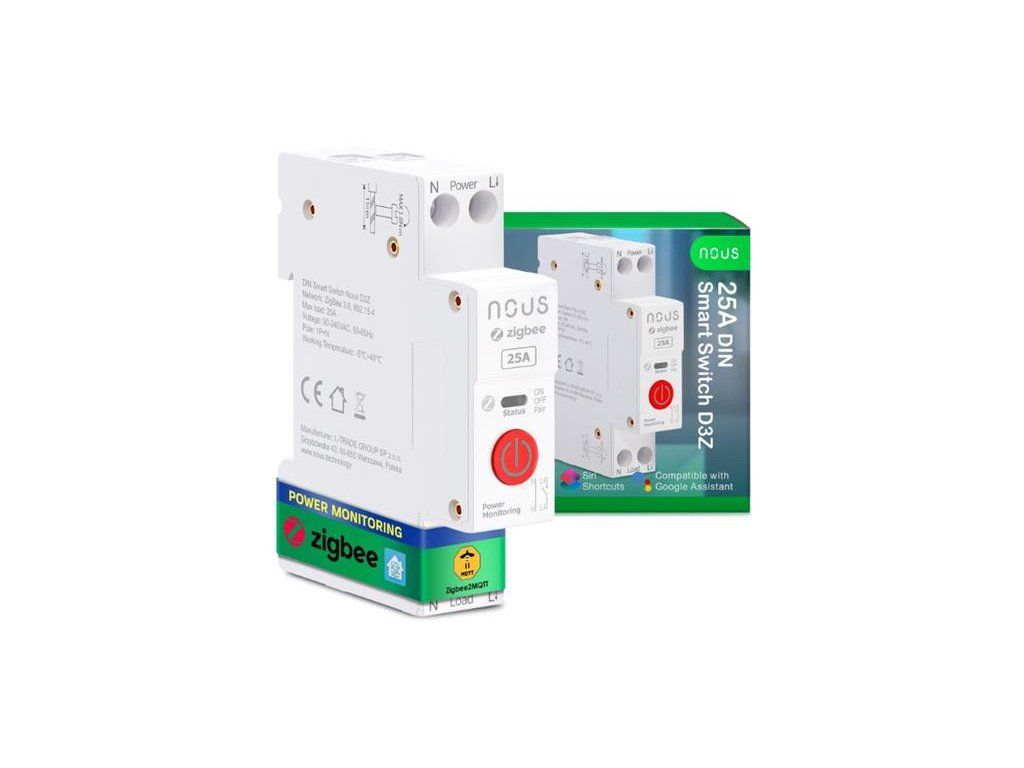

Smart switch NOUS D3Z ZigBee Tuya DIN 25A

Product detailed description

The clever NOUS D3Z ZigBee Tuya DIN 25A switching module (1 channel, with power metering) is a universal solution for controlling electrical devices in a smart home system. With a maximum load of 25 A, this module enables the connection of high-power devices and is compatible with the ZigBee 3.0 protocol. The device is controlled via the Tuya Smart/NOUS Smart mobile app for Android and iOS or voice control. A central ZigBee unit is required to ensure proper functionality. From our range, for example CEL-TEC E90-C / NOUS E1

Energy consumption monitoring and power monitoring

The main functions of the module include power consumption monitoring and power monitoring. The smart switch is designed to be mounted on a standard DIN rail in a wiring closet. In addition, it provides overload and overheat protection to ensure safe operation. The module is compatible with a range of smart devices and enables their automation within the home ecosystem. The device is designed for voltages ranging from 100-240V (AC) and has a wide operating temperature, typically ranging from -10 to +40°C, ensuring its reliable performance in a variety of conditions.

Wide range of functions to optimize home or office automation

The main applications of the D3Z Zigbee DIN include a wide range of functions to optimize home or office automation. One of these is lighting control, which allows lights to be switched on and off in different areas of the home or office. This feature makes it possible to create automated scenarios and schedules that respond to specific conditions, thereby contributing to increased comfort and energy savings.

Energy consumption according to current needs

Another key function is appliance control, which allows remote management of various devices such as boilers, pumps or ventilation systems. This type of control increases energy efficiency and convenience, as users can easily control and adjust energy consumption according to actual needs.

Easy integration

The D3Z is also designed for easy integration into smart home systems. With support for ZigBee technology, this module can be easily connected to other smart home devices, allowing complex automation scenarios to be created. This integration ensures that all devices in the home are harmonised and optimised to work together for maximum comfort and efficiency.

Technical parameters:

Tag: NOUS
Certificates CE, Rohs
Operating voltage range: 100-240V
Maximum load: 25A
Body Material: PC/ABS (V0), fire resistant
Dimensions: 82 x 50 x 15 mm
Communication standard: ZigBee 3.0
Protocol: 802.15.4
Frequency range: 2.400 - 2.483 GHz
Maximum transmit power: 10 dBm
Smartphone control: Nous Smart Home / Tuya Smart app
Compatibility with Google Assistant, Amazon Alexa
Consumption measurement: yes, real-time + history
Apps: Nous Smart, Tuya Smart, also compatible with Home Assistant (Zigbee2MQTT), Alexa, Google Home
Mounting: on a standard DIN rail in the control cabinet
Other features: overheating protection
