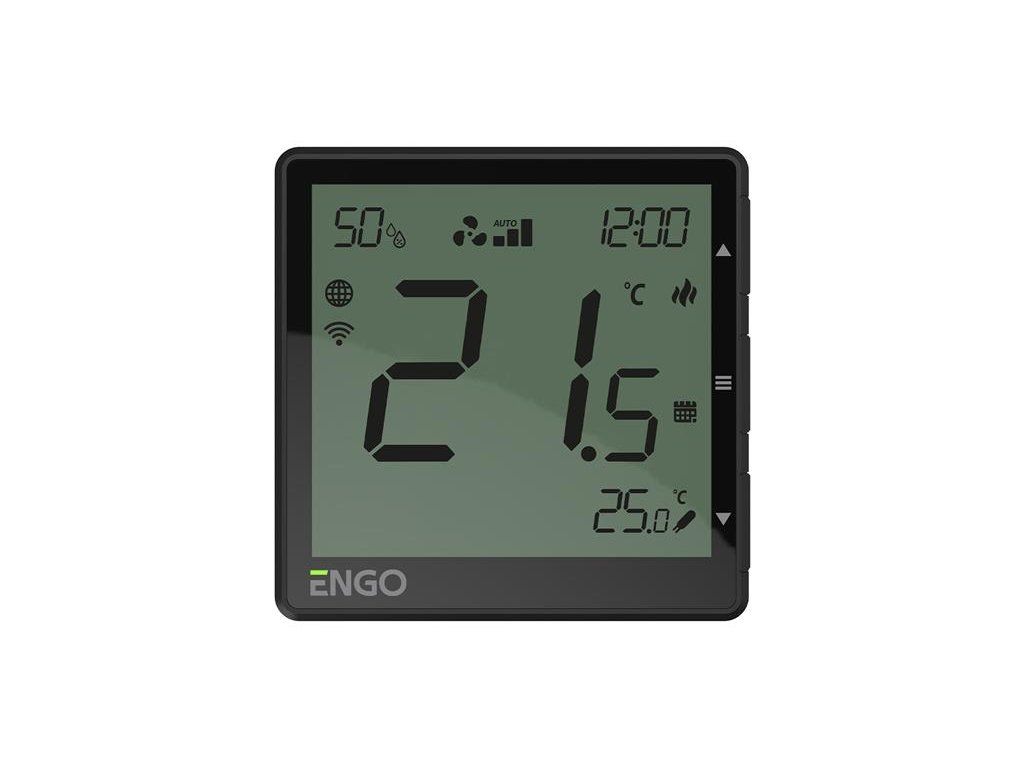

Smart thermostat ENGO EFAN-230B WiFi

Product detailed description

Internet fan controller for hidden fan, Wi-Fi, 230V

- Wireless communication via 2.4GHz Wi-Fi and MODBUS RS-485 for system integration.
- Control of 2 or 4-pipe fan coils for flexible heating and cooling control.
- Support 3-speed 230V fans with automatic and manual control.
- Control of a mixed system: cooling fan-coils and underfloor heating.
- Freeze and overheat protection function to ensure safety.
- Remote control via the ENGO Smart app.
- Measure humidity and temperature to monitor room conditions.
- Memory of settings after power failure.
- Energy saving mode (ECO) reduces energy consumption.
- Output load up to 5(2)A for fan coils and duct heaters.
- Easy installation and configuration.

Specifications:

Power supply 230 V AC.
Temperature setting range: 5 - 45 °C
Temperature display accuracy: 0.1 or 0.5 °C
Control algorithm: Delta FAN, hysteresis (±0.1 °C to ±2 °C)
Communication:
Communication: Wi-Fi 2.4 GHz
MODBUS RS-485
Input:
S1/COM - temperature sensor or potential-free contact
S2/COM - temperature sensor or potential-free contact
Output for valve control: V1, V2 - 230V AC, 5(2)A
Fan control output: F1, F2, F3 - 230V AC, 5(2)A
Dimensions [mm]: 90 x 90 x 44
