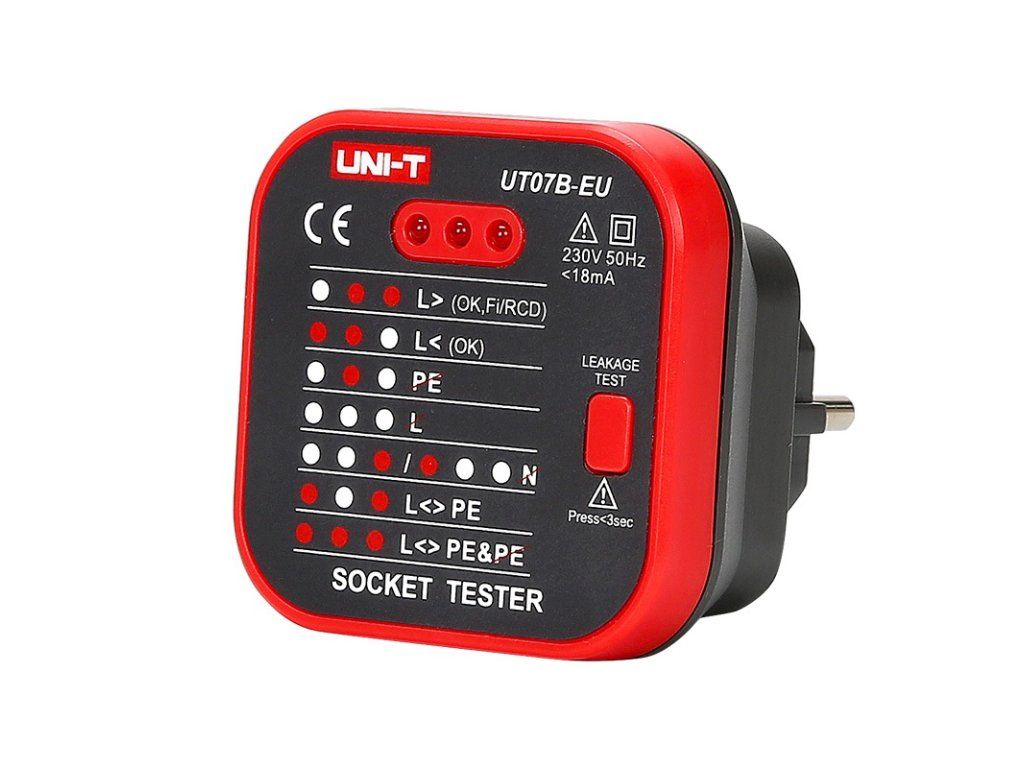

Socket Tester UNI-T UT07B-EU

Product detailed description

The UNI-T UT07B-EU is a tester for easy checking of 230V/AC socket wiring. With the help of three LEDs it indicates the correct connection of all three wires of the distribution system and the functionality of the current protector. Residual current device (RCD) testing. Checking where the phase is connected to the mains socket Checking the earth connection Checking for a missing earth connection to the mains socket terminal Checking that the phase/ground connection at the mains socket is correct Indication of the seven socket connection statuses by means of three LEDs: OK, protector test passed OK Ground missing - yellow-green wire Missing phase - brown or black wire Missing neutral (return) wire - blue wire Phase connected backwards Phase connected in reverse and missing ground TECHNICAL SPECIFICATIONS: Operating voltage: 230 V/AC Operating current: < 18mA Operating frequency: 50Hz to 60Hz RCD function test: approx. 30mA current Product colour: red and grey Weight: 80.5 g Dimensions: 65 x 65 x 61 mm PACKAGE CONTENTS: UT07B-EU tester (in blister pack): 1pc Instructions for use: 1pc
