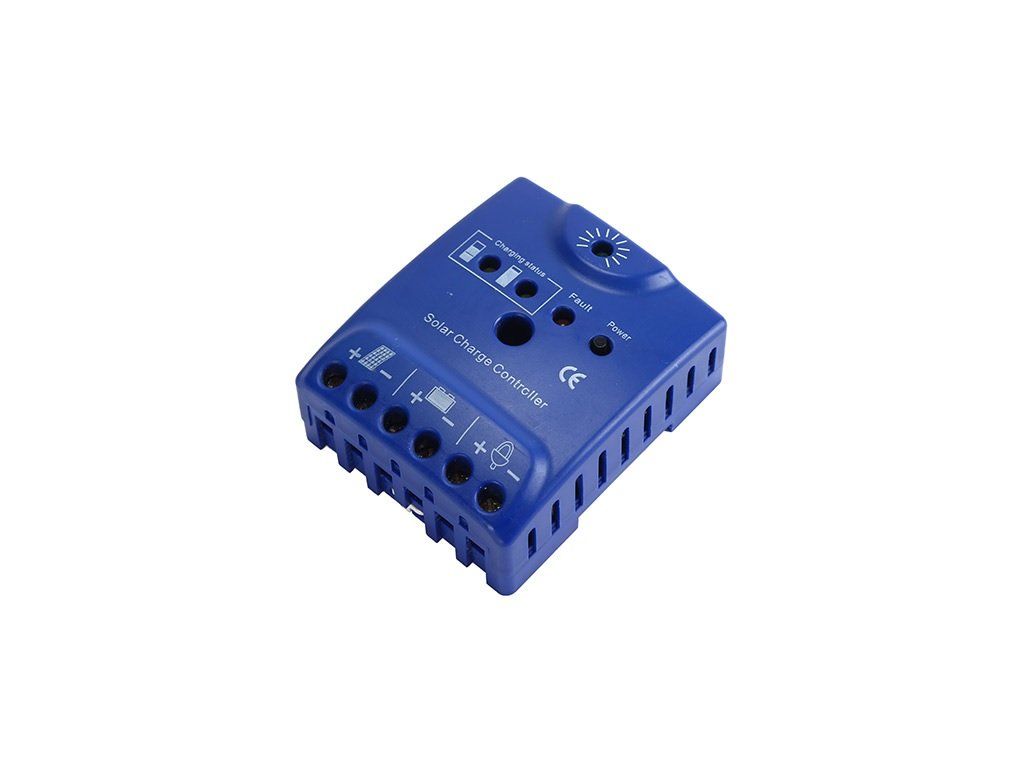

Solar controller CARSPA CD12/24-15, self-detection 12V/15A or 24V/15A
Code: ABCT_A500000859Product detailed description
Solar controller for solar photovoltaic panels 12V up to 140W. Simply connect the solar panel and battery to the controller and you will get a stabilized voltage of 12V at the output of the controller.
Solar controller CARSPA CD12/24-12 12V/12A and 24V/12A
- Maximum charging and load current 15A (for panels up to 180W).
- When the battery voltage reaches 13.6V, the controller starts to limit the current to the battery.
- At 15V, it disconnects it completely. It also disconnects the load at Ubat10.5V
Features:
1. LED indication: 4 LED indicators for different charging states
2. DC load ON/OFF button
3. Clear charging status indication, easy to read
3. Clear charging status indication, easy to read
4.12V/24V auto-detection
5. Automatic reverse polarity protection for battery, solar panel and load output connections.
6. Fully electronic protection: against short circuit, reverse polarity and overload.
7. Low voltage disconnection
8. Automatic reset
9. Automatic temperature sensor
10. Conventional positive conductor allows grounding
11. Can be easily mounted on a wall or Din rail
Additional parameters
| Category: | ABC Tech |
|---|---|
| Weight: | 0.12 kg |
| EAN: | 6970355991152 |
| EAN: | 6970355991152 |
