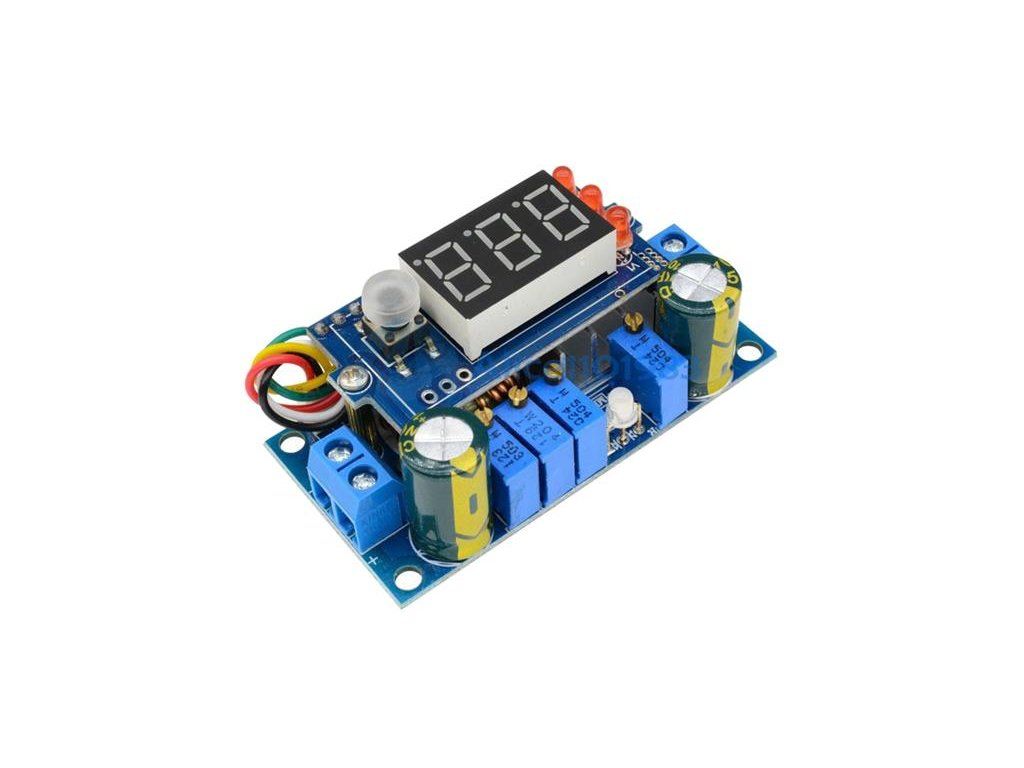

Solar controller MPPT module with display, 6-36V 5A

Product detailed description

Non-isolated power supply module with MPPT suitable as a solar controller or battery charger with V-A sources for the most efficient use of energy.


Technical parameters:

- input voltage: 6-36 V DC
- output voltage: 1.25-32VDC (preset 5V)
- output current: 0.05-5A (continuous max.3A)

- Pb battery: 12/24V
- Lithium batteries: 7.2/10.8/14.4V
- Ni-Cd, Ni-MH batteries: 7.2-14.4V
- charging method: automatic 3 stage
- 93% efficiency
- self-consumption 3mA
- protection: against over-polarity, short-circuit, against reverse current to panels
- dimensions (LxWxH): 60×32×28mm

Setup: see instructions
